Select any switch from the panel to browse its data sheet, or continue for detailed specifications, images and purchasing options.
Read MorePZ Series Illuminated Anti-Vandal, Piezo Switch

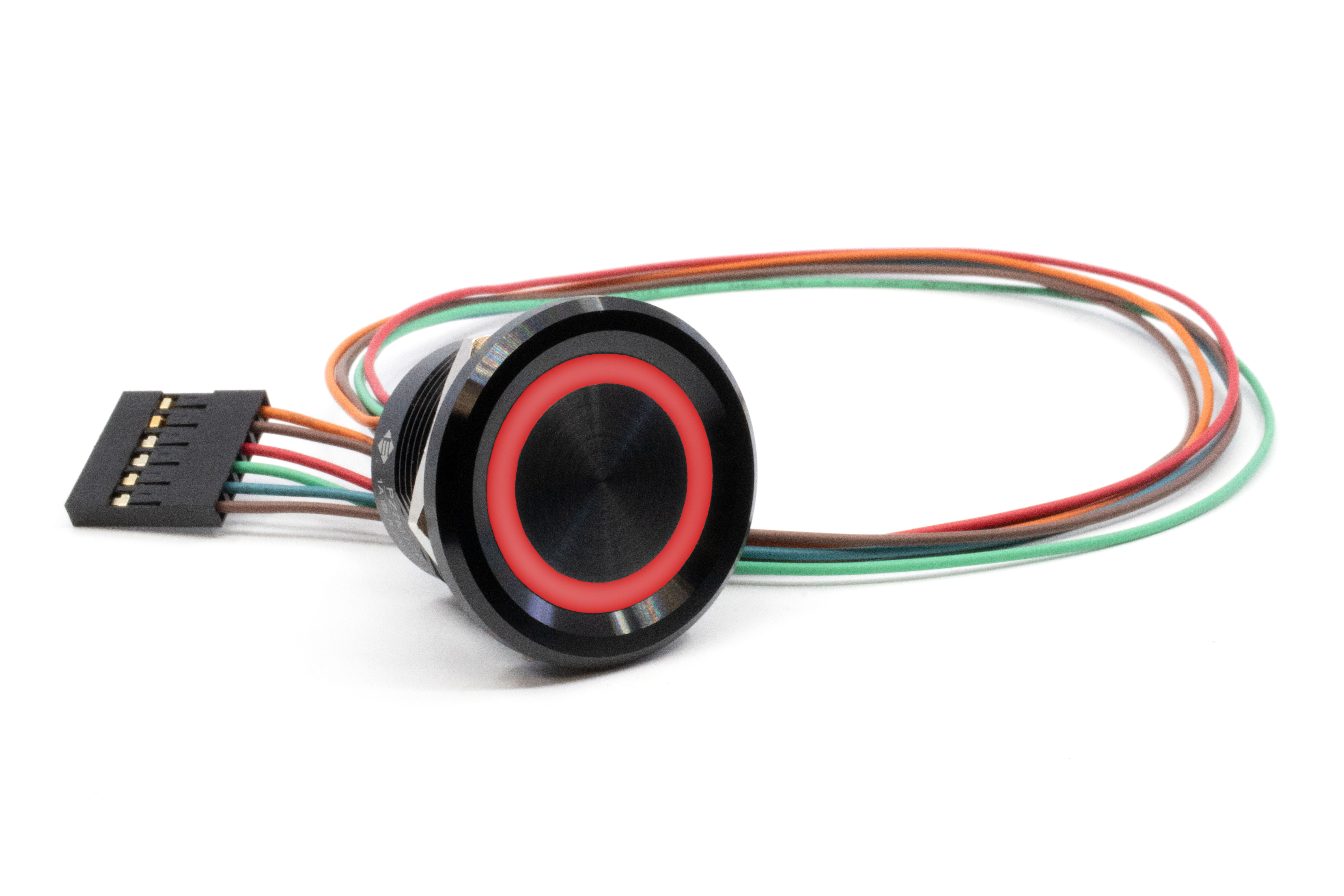

PZ Series Illuminated Anti-Vandal, Piezo Switch
Stock Check for PZ7M1CRRW300
Not the product you are looking for? Configure your product
ANTI-VANDAL, 1A, 24VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
About PZ Series
- 16mm, 19mm, or 22mm panel cutout
- 1A, 24VDC; IP68
- Momentary pulse function; Piezo switch
- Wire leads 150mm or 300mm long, with connector
- Concave or flat bezel
- Clear anodized or black anodized finish
- Illuminated ring, or non-illuminated
- RGB LED illumination color
- 50 million cycles electrical life
- -20°C to 65°C operating temperature
PZ Series Markets
Product Specifications
PZ7M1CRRW300
ANTI-VANDAL, 1A, 24VDC, SPST, Off-(On), Panel Mount, Front, Illuminated
- Series Name PZ
- PackagingBulk
- Current Rating1A
- Voltage Rating24VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeWire Leads with Connector
- Actuator TypeRound, Button, Flush
- Actuator ColorBlack
- Illumination StyleRing
- Illumination ColorLED, RGB
- Ingress ProtectionIP68
- Panel Cutout DimensionsCircular - 22mm Dia.
- Operating Temperature-20°C to 65°C
Support for PZ7M1CRRW300
Not the product you are looking for? Configure your product
