PVK4 Series Illuminated Anti-Vandal Switch

PVK4 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

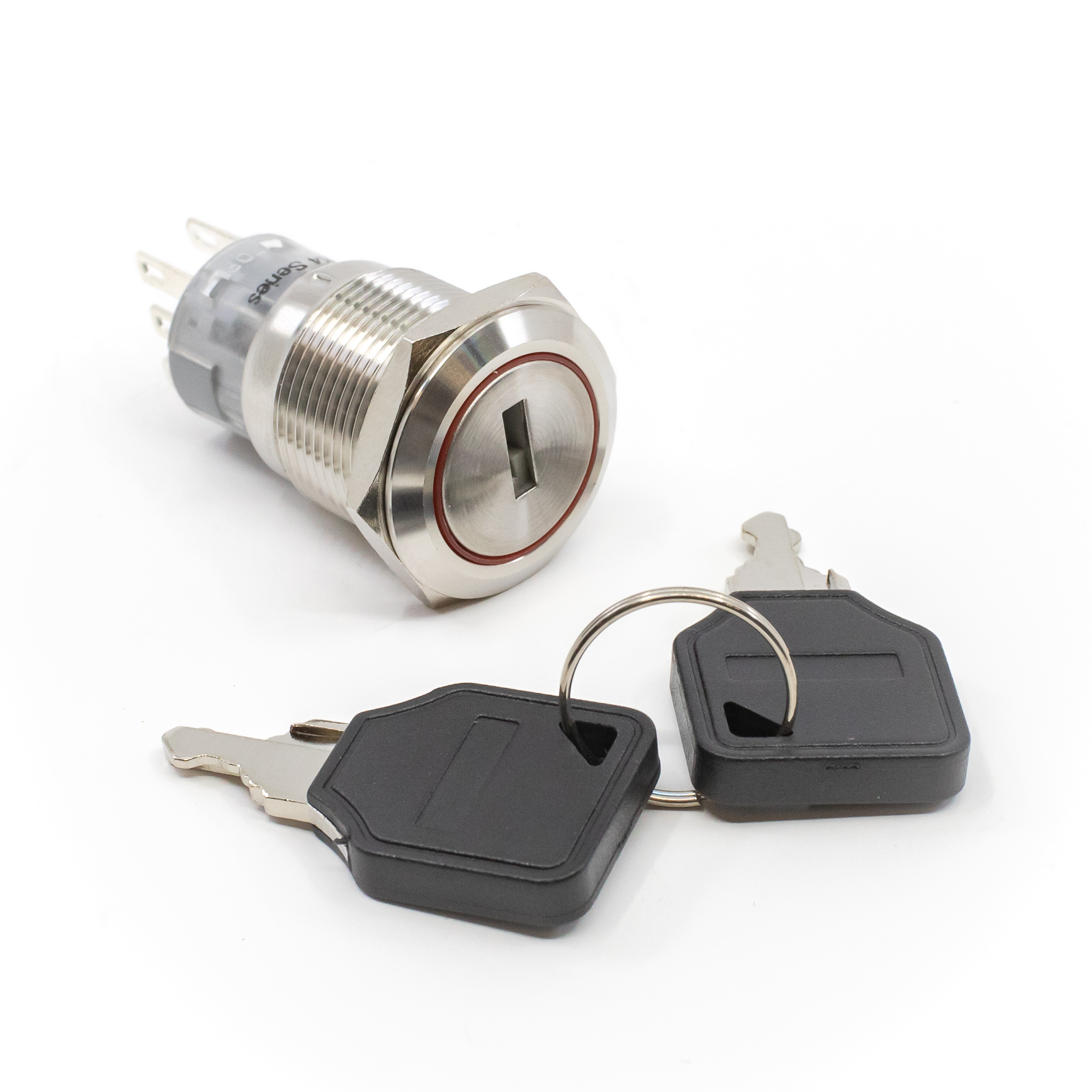

PVK4 Series: PVK4K22C0SS

Categories: ANTI-VANDAL

RoHS Compliant REACH Compliant

PVK4 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PVK4K22C0SS

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PVK4K22C0SS

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PVK4K22C0SS from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 24VDC, DPDT, On-On-On, Panel Mount, Front, Illuminated

Powered by oemsecrets

About PVK4 Series

  • 19mm panel cutout
  • 2A, 24VDC;  IP65 (maintained) or IP40 (return)
  • Keylock actuator or selector actuator
  • SPDT or DPDT; 2 or 3 operating positions; maintained or return
  • Solder or wire leads termination
  • Stainless steel finish
  • Illuminated arrow or non-illuminated (selector option)
  • Many LED illumination color options (selector option)
  • Many illumination voltage options (selector option)
  • Silver or gold contact material
  • 50,000 cycles electrical life
  • -40°C to 85°C operating temperature

E-Switch E-Bits: PVK4 Keylock Anti-vandal Switch

PVK4 Series Markets

Security

Product Specifications

PVK4K22C0SS

ANTI-VANDAL, 2A, 24VDC, DPDT, On-On-On, Panel Mount, Front, Illuminated

  • Series Name PVK4
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating24VDC
  • CircuitDPDT
  • FunctionOn-On-On
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeFlat Key
  • Actuator ColorSilver
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP40
  • Panel Cutout DimensionsCircular - 19mm Dia.
  • Operating Temperature-40°C to 85°C
  • Nbr of Positions3
  • Key Removal PositionsAll
  • Angle of Throw45°
