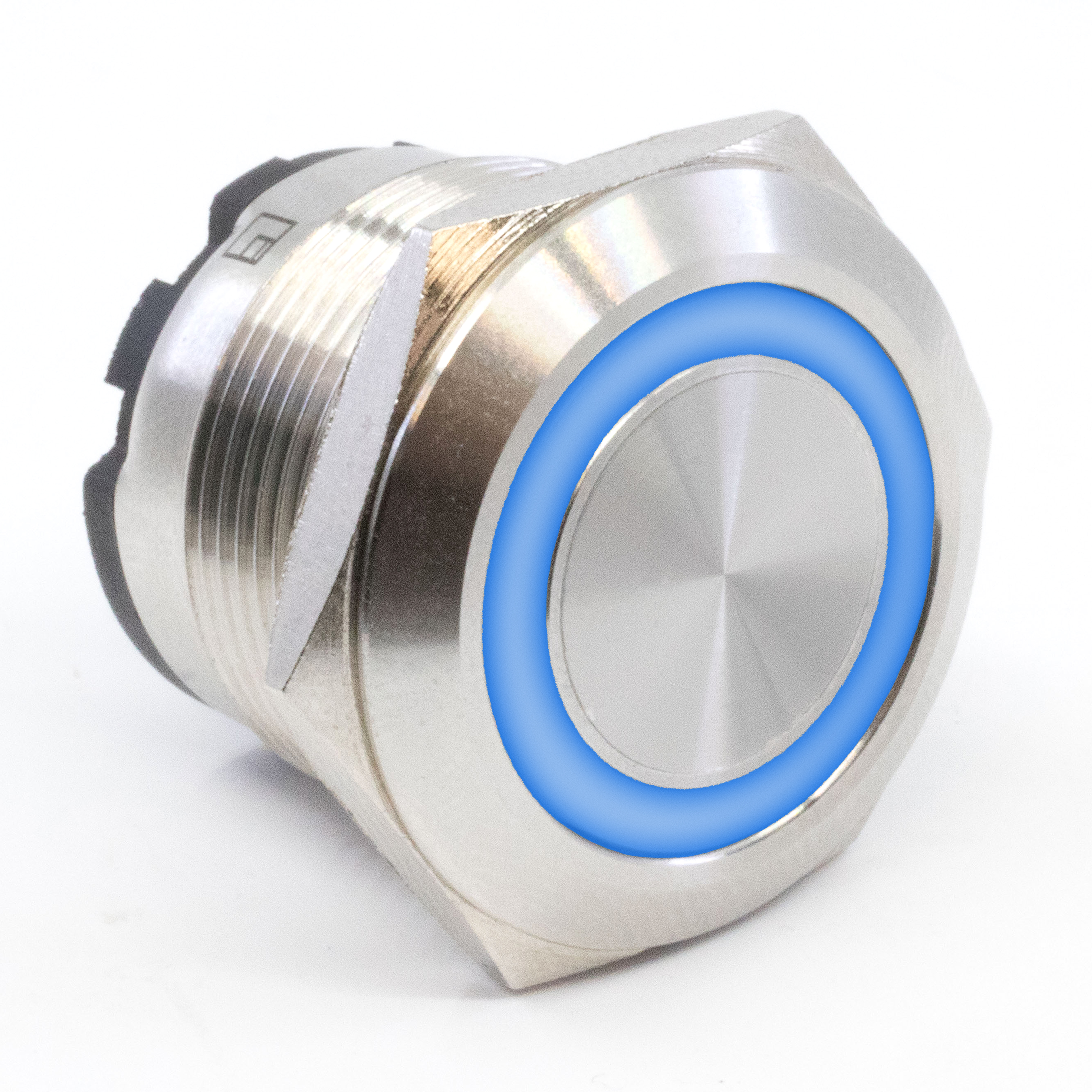

PVHC7 Series Illuminated, High Current Anti-Vandal Switch
Stock Check for PVHC7F2BSS345
Not the product you are looking for? Configure your product
ANTI-VANDAL, 20A, 250VAC, SPST, Off-(On), Panel Mount, Front, Illuminated
About PVHC7 Series
- 22mm panel cutout
- 20A, 250VAC, UL;Â IP67 rated
- SPST; latching or momentary function
- Solder or wire leads termination
- Flat actuator
- Stainless steel or black anodized
- Illuminated ring, ring and power symbol, or non-illuminated
- Many LED illumination color options
- Many illumination voltage options
- 50,000 cycles electrical life
- -40°C to 85°C operating temperature
PVHC7 Series Markets
Product Specifications
PVHC7F2BSS345
ANTI-VANDAL, 20A, 250VAC, SPST, Off-(On), Panel Mount, Front, Illuminated
- Series Name PVHC7
- PackagingBulk
- Current Rating20A
- Voltage Rating250VAC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound, Button, Flush
- Actuator ColorSilver
- Illumination StyleRing
- Illumination ColorLED, Blue
- Illumination Voltage24VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 22mm Dia.
- Operating Temperature-40°C to 85°C
