Interactive Anti-Vandal Switch Panel Solutions
April 3, 2025 | 5 minute read
Select any switch from the panel to browse its data sheet, or continue for detailed specifications, images and purchasing options.
Read MorePVB7 Series Illuminated Anti-Vandal Switch

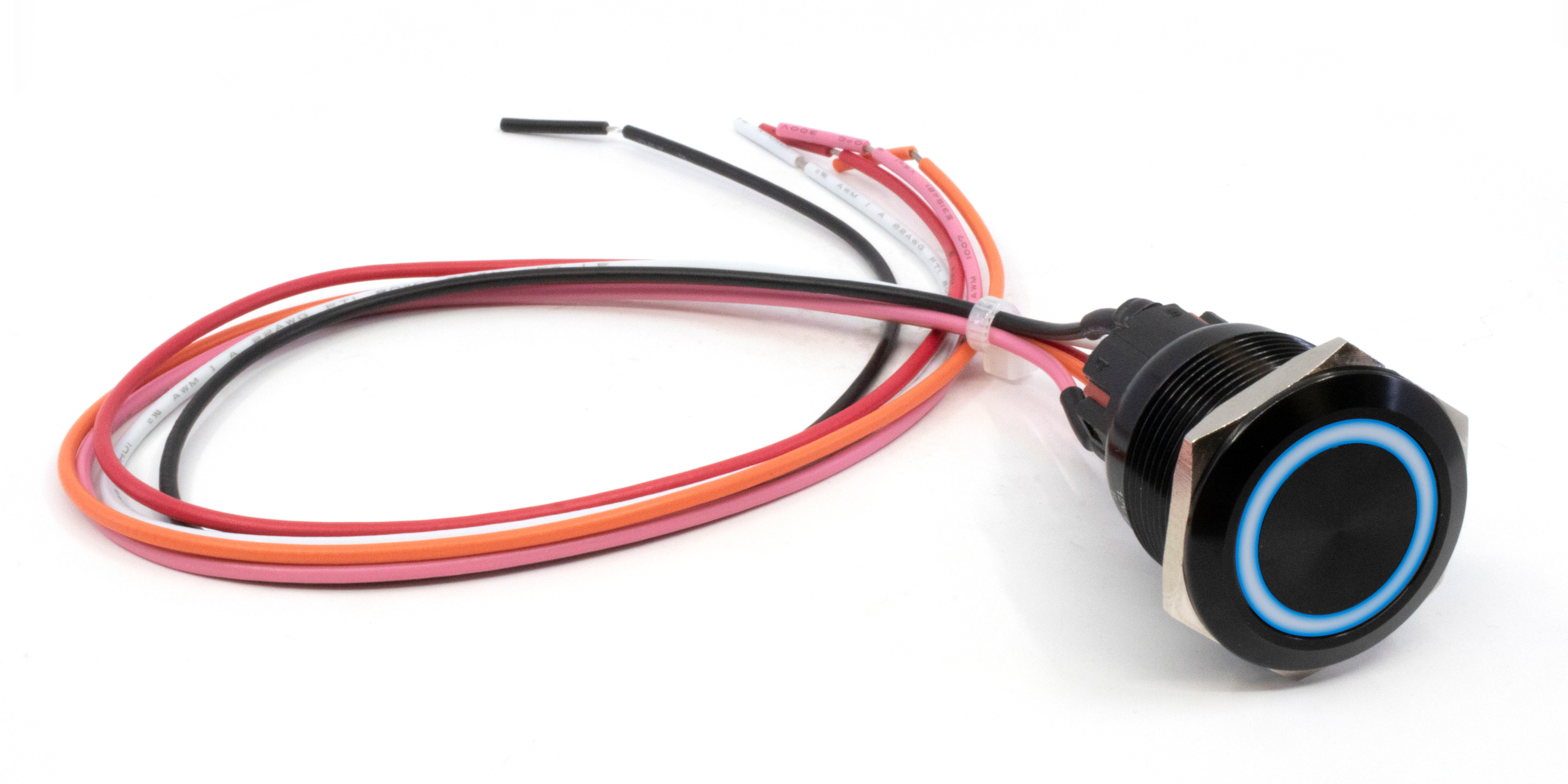

PVB7 Series Illuminated Anti-Vandal Switch
Stock Check for PVB7FWB011344
Not the product you are looking for? Configure your product
ANTI-VANDAL, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated
About PVB7 Series
- 22mm diameter panel cutout
- 5A, 250VAC UL;Â 2A, 24VDC;Â IP67 rated
- SPDT or DPDT;Â latching or momentary function
- Flat actuator
- Solder, wire leads 300mm, or wire leads 300mm w/ connector
- Stainless steel or black anodized finish
- Illuminated ring, ring/power symbol, or non-illuminated
- Many LED color and voltage options including RGB
- Silver or gold contact material
- -40°C to 85°C operating temperature
Product Specifications
PVB7FWB011344
ANTI-VANDAL, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated
- Series Name PVB7
- PackagingBulk
- Current Rating2A
- Voltage Rating24VDC
- CircuitSPDT
- FunctionOn-(On)
- Mounting TypePanel Mount, Front
- Termination TypeWire Leads
- Contact MaterialSilver
- Actuator TypeRound, Button, Flush
- Actuator ColorBlack
- Illumination StyleRing
- Illumination ColorLED, Blue
- Illumination Voltage12VDC
- Ingress ProtectionIP67
- Panel Cutout DimensionsCircular - 22mm Dia.
- Operating Temperature-40°C to 85°C
Support for PVB7FWB011344
Not the product you are looking for? Configure your product
