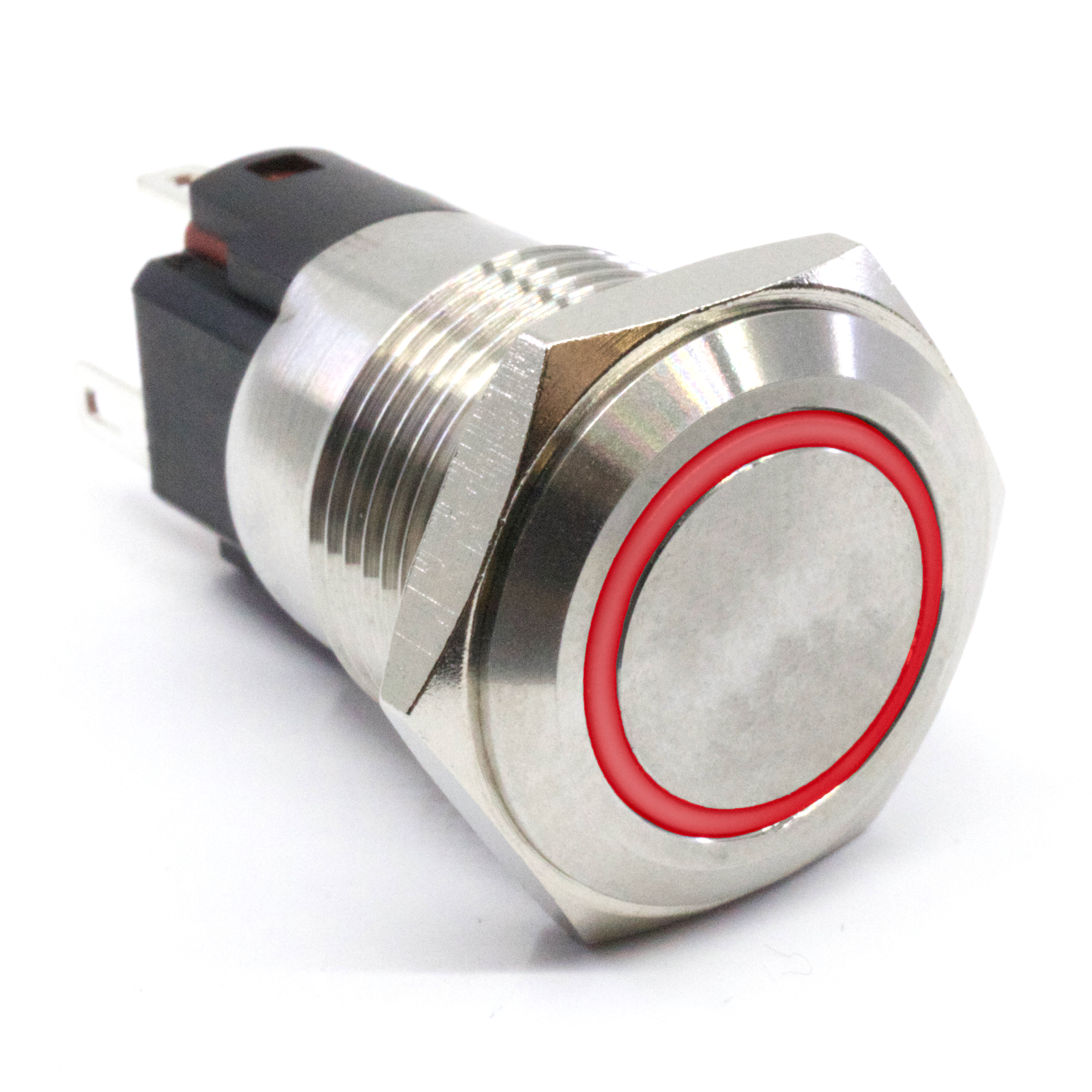

PVB3 Series Illuminated Anti-Vandal Switch

PVB3 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

PVB3 Series: PVB3F2B0SS3R1

Categories: ANTI-VANDAL

RoHS Compliant REACH Compliant UL Certified

PVB3 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PVB3F2B0SS3R1

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PVB3F2B0SS3R1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PVB3F2B0SS3R1 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated

Powered by oemsecrets

About PVB3 Series

  • 16mm panel cutout
  • 2A, 24VDC, UL;  IP67
  • SPDT; latching or momentary function
  • Solder or wire leads termination
  • Flat or high actuator
  • Stainless steel or black anodized finish
  • Illuminated ring, ring/power symbol, or non-illuminated
  • Many LED illumination color options including RGB
  • Many illumination voltage options
  • Silver or gold contact material
  • 50,000 cycles electrical life
  • -40°C to 85°C operating temperature

PVB3 Series Anti-Vandal Switch | E-Switch E-Bits

PVB3 Series Markets

Appliance

Product Specifications

PVB3F2B0SS3R1

ANTI-VANDAL, 2A, 24VDC, SPDT, On-(On), Panel Mount, Front, Illuminated

  • Series Name PVB3
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating24VDC
  • CircuitSPDT
  • FunctionOn-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Illumination StyleRing
  • Illumination ColorLED, RGB
  • Illumination Voltage1.8, 2.8, 2.8V
  • Ingress ProtectionIP67
  • Panel Cutout DimensionsCircular - 16mm Dia.
  • Operating Temperature-40°C to 85°C
