PV4 Series Illuminated Anti-Vandal Switch

PV4 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

PV4 Series: PV4F2H0SS-341

Categories: ANTI-VANDAL

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

PV4 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PV4F2H0SS-341

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PV4F2H0SS-341

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PV4F2H0SS-341 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 24VDC, DPDT, On-(On), Panel Mount, Front, Illuminated


About PV4 Series

  • 19mm panel cutout
  • 2A, 24VDC; IP65
  • SPDT, DPDT, or DPDT-NO/NC circuit; latching, momentary, or double break function
  • Solder, screw, or wire leads termination options
  • High or flat actuator
  • Stainless steel or black anodized finish
  • Illuminated dot, ring, ring/power symbol, or non-illuminated options
  • Many LED colors including bi-color and RGB
  • Many illumination voltage options
  • Laser etched power symbol option
  • Silver or gold contact material
  • 50,000 cycles electrical life
  • -20°C to 55°C operating temperature

Product Specifications

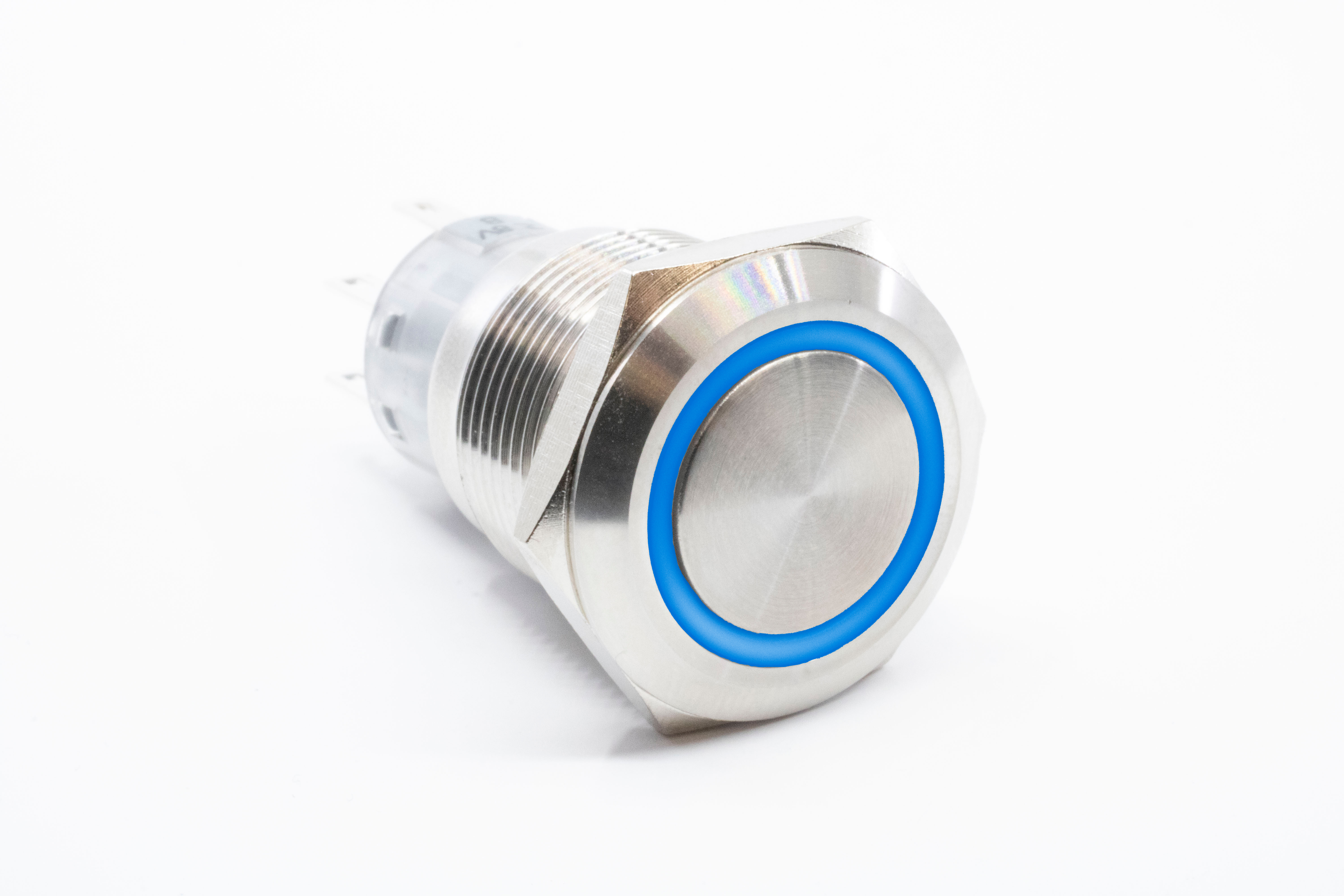

PV4F2H0SS-341

ANTI-VANDAL, 2A, 24VDC, DPDT, On-(On), Panel Mount, Front, Illuminated

  • Series Name PV4
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating24VDC
  • CircuitDPDT
  • FunctionOn-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Illumination StyleRing
  • Illumination ColorLED, Blue
  • Illumination Voltage2.8VDC
  • Ingress ProtectionIP67
  • Panel Cutout DimensionsCircular - 19mm Dia.
  • Operating Temperature-40°C to 85°C
