PV16 Series Illuminated Anti-Vandal Switch

PV16 Series: PV16F2B0SS

Series Data Sheet

PV16 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Actuator: Terminal: Function: Rating: Body Finish: Actuator Finish: Contact Material: Lens Style: LED Color: LED Voltage:

* If you need further customization, we can help!

Current Configuration:

PV16F2B0SS

Spec Sheet (2D)

... in stock, available to buy now.

Quantity:

Additional Purchase Options:

Check Distributor Stock

Request Sample

Stock Check for PV16F2B0SS

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PV16F2B0SS from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 5A, 220VAC, SPDT, On-(On), Panel Mount, Front

Quantity:

About PV16 Series

16mm diameter panel cutout
2A, 24VDC / 5A, 220VAC; IP67 rated
SPDT or DPDT, latching or momentary
High or flat actuator
Solder, wire leads 300mm, or wire leads 300mm w/ ECM connector
Illuminated ring, dot, ring/power symbol, or non-illuminated
Many LED colors and voltages
Stainless steel or black anodized finish
Silver or gold contact material
-40°C to 85°C operating temperature

PV Series with Wire Leads

PV16 Series Markets

Agricultural Appliance Audio Visual Automation Construction Fitness Food Industry Home Maintenance Industrial Marine Medical Personal Care Security Sustainable Energy Telecommunications Transportation

Product Specifications

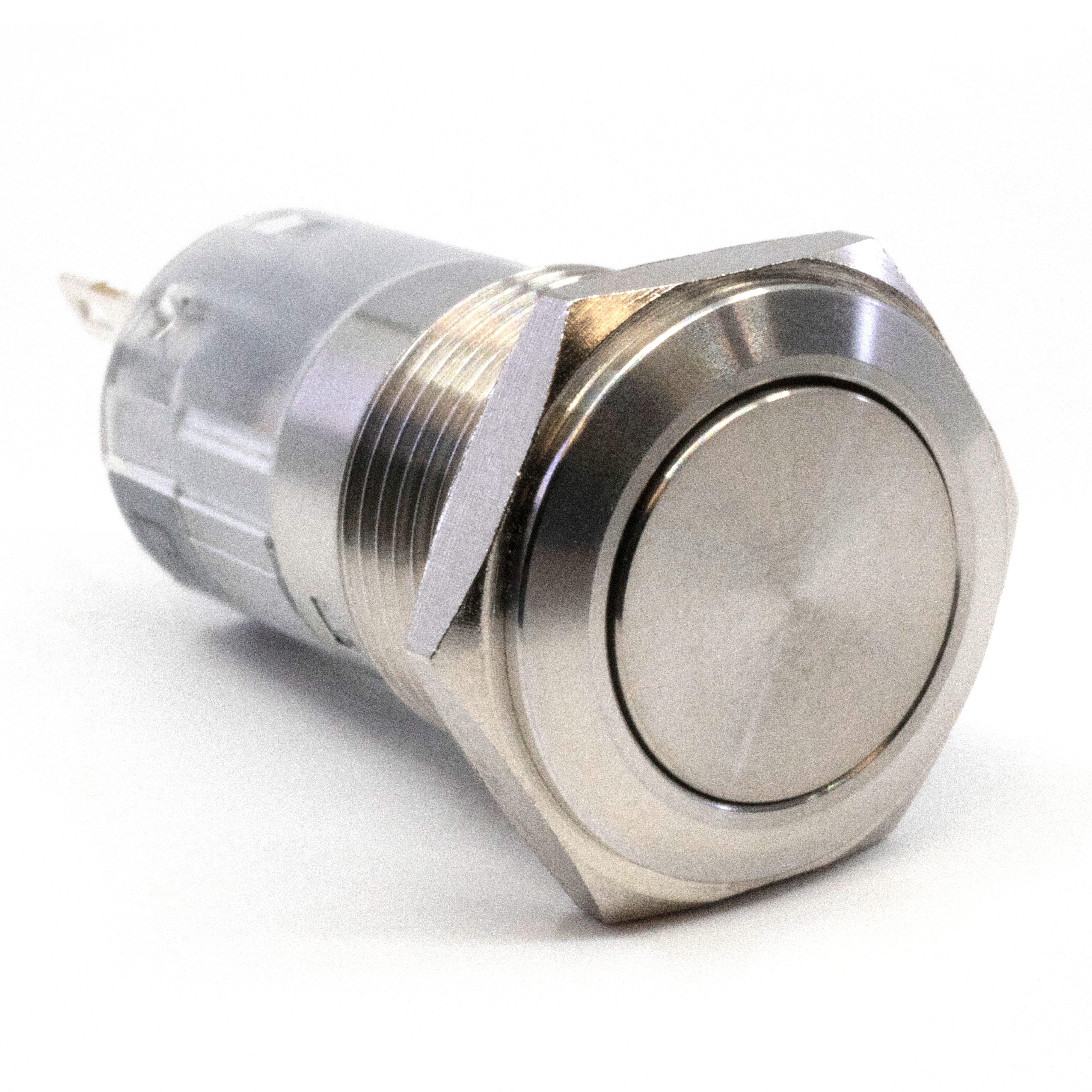

PV16F2B0SS

ANTI-VANDAL, 5A, 220VAC, SPDT, On-(On), Panel Mount, Front

Series Name PV16
PackagingBulk
Current Rating5A
Voltage Rating220VAC
CircuitSPDT
FunctionOn-(On)
Mounting TypePanel Mount, Front
Termination TypeSolder
Contact MaterialSilver
Actuator TypeRound, Button, Flush
Actuator ColorSilver
Illumination StyleNon-illuminated
Illumination ColorNon-illuminated
Ingress ProtectionIP67
Panel Cutout DimensionsCircular - 16mm Dia.
Operating Temperature-40°C to 85°C
