PV10 Series Illuminated Anti-Vandal Switch

PV10 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

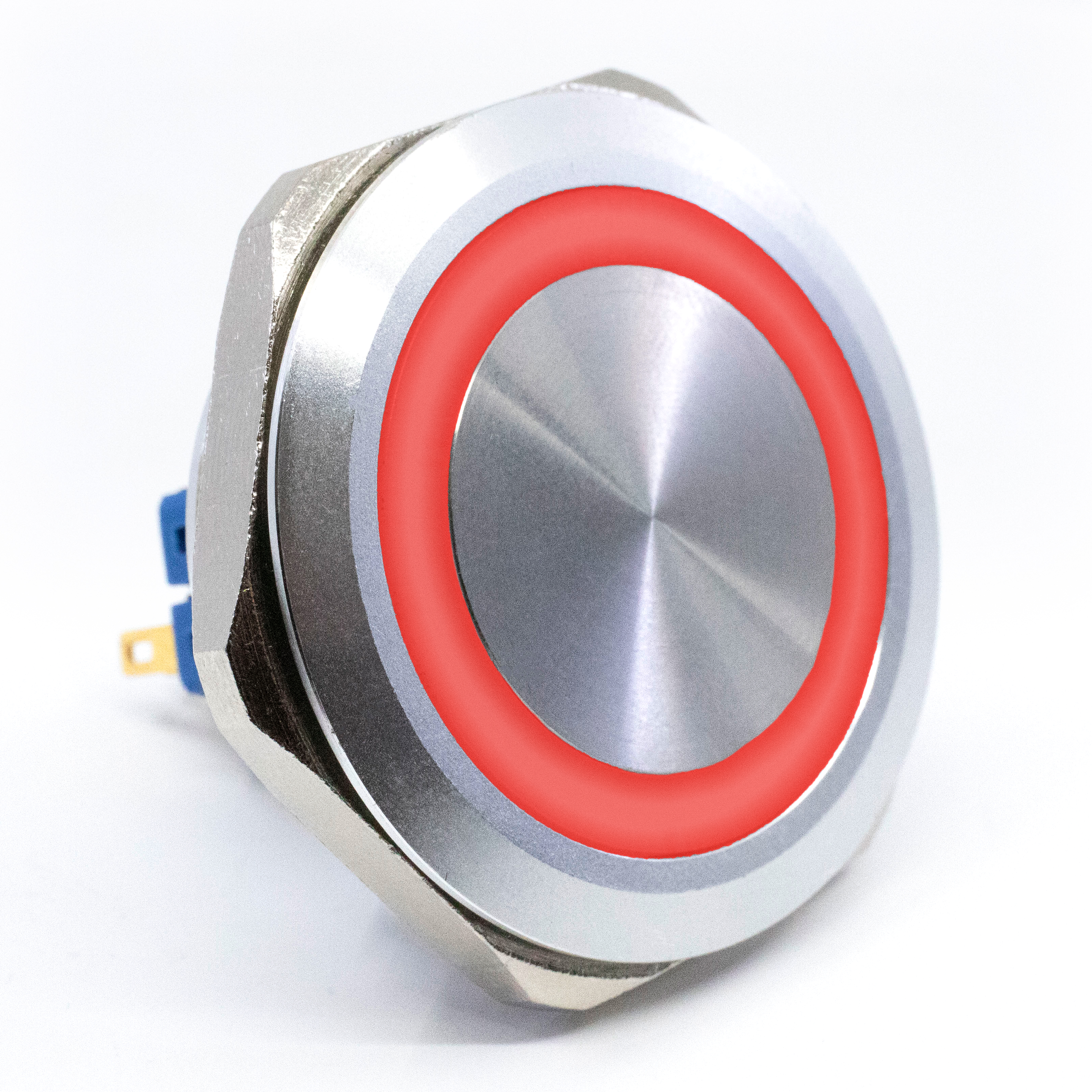

PV10 Series: PV10F2T0SS-3G1

Categories: ANTI-VANDAL

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

PV10 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PV10F2T0SS-3G1

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PV10F2T0SS-3G1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PV10F2T0SS-3G1 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 48VDC, DPST-NO/NC, Off-On, On-Off, Panel Mount, Front, Illuminated

Powered by oemsecrets

About PV10 Series

  • 40mm panel cutout
  • 2A, 48VDC;  IP65 rated
  • SPDT or DPDT circuit; latching or momentary function
  • Solder or wire leads 300mm long termination options
  • Flat actuator
  • Stainless steel finish
  • Illuminated dot or ring, or non-illuminated options
  • Many LED illumination color options including bi-color
  • Many illumination voltage options
  • 50,000 cycles electrical life
  • -20°C to 55°C operating temperature

Anti-Vandal Switches: E-Switch PV10 [2019]

PV10 Series Markets

Audio Visual

Product Specifications

PV10F2T0SS-3G1

ANTI-VANDAL, 2A, 48VDC, DPST-NO/NC, Off-On, On-Off, Panel Mount, Front, Illuminated

  • Series Name PV10
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating48VDC
  • CircuitDPST-NO/NC
  • FunctionOff-On, On-Off
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Actuator TypeRound, Button, Flush
  • Actuator ColorStainless Steel
  • Illumination StyleRing
  • Illumination ColorLED, Red/Green
  • Illumination Voltage1.8VDC, 2.8VDC
  • Ingress ProtectionIP65
  • Operating Force6.5N
  • Panel Cutout DimensionsCircular - 40mm Dia.
  • Operating Temperature-20°C to 55°C
