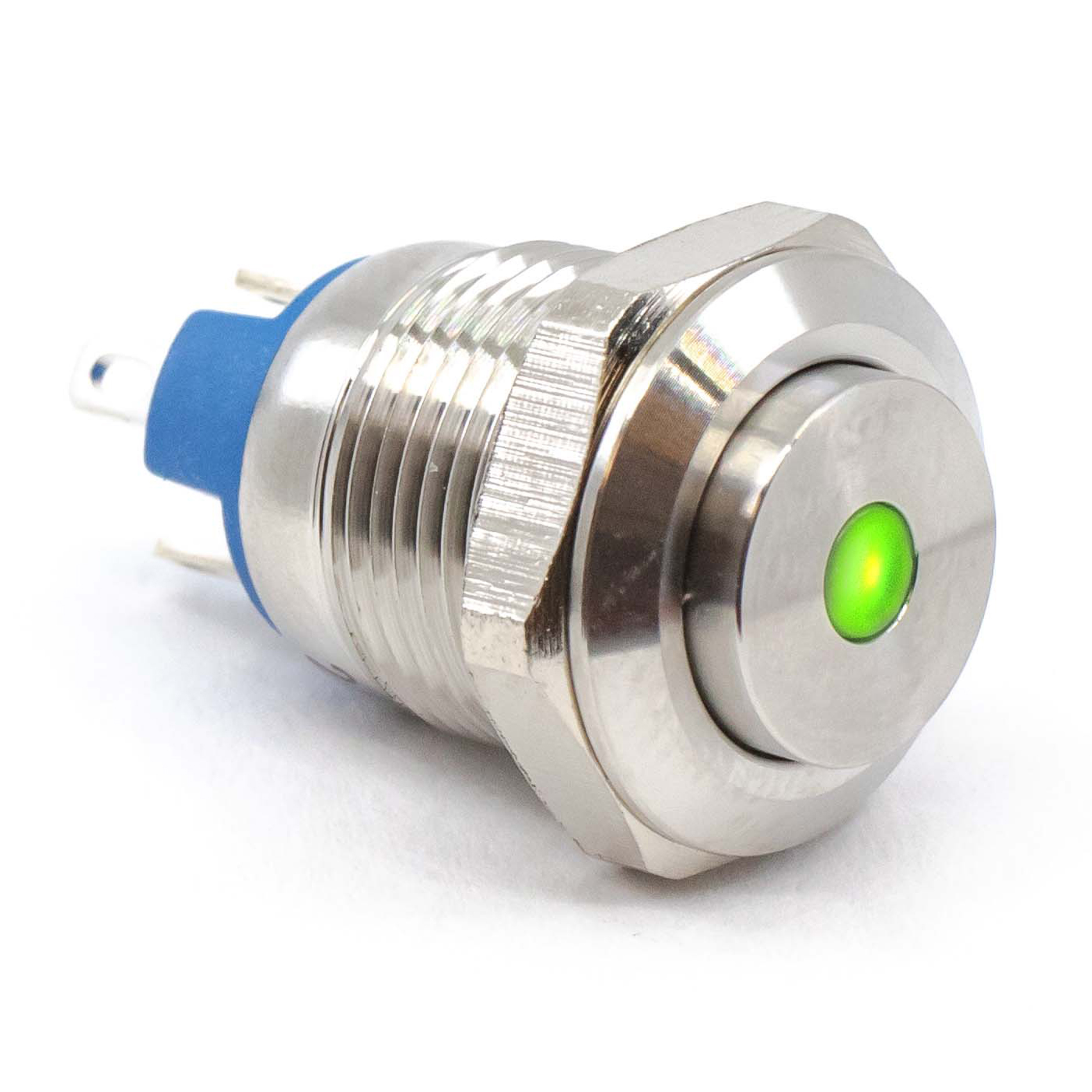

PV0 Series Illuminated Anti-Vandal Switch

PV0 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

PV0 Series: PV0H240SS-231

Categories: ANTI-VANDAL

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

PV0 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PV0H240SS-231

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PV0H240SS-231

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PV0H240SS-231 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

Powered by oemsecrets

About PV0 Series

  • 12mm panel cutout
  • 2A, 36VDC; IP67 rated
  • SPST circuit; momentary function
  • High or flat actuator
  • Solder or wire leads termination options
  • Ring, dot, or power symbol illumination
  • Multiple LED color options, including RGB
  • Stainless steel or black anodized finish
  • Silver or gold contact material
  • 50,000 cycles electrical life
  • -40°C to 85°C operating temperature

PV Series with Wire Leads

PV0 Series Markets

Medical

Product Specifications

PV0H240SS-231

ANTI-VANDAL, 2A, 36VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

  • Series Name PV0
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating36VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeRound, Button
  • Actuator ColorSilver
  • Illumination StyleDot
  • Illumination ColorLED, Green
  • Illumination Voltage2.8VDC
  • Ingress ProtectionIP67
  • Panel Cutout DimensionsCircular - 12mm Dia.
  • Operating Temperature-40°C to 85°C
