PP1 Series Push-Pull Pushbutton Detector Switch

PP1 Series Push-Pull Pushbutton Detector Switch

PP1 Series: PP1-EB7-1A2

Categories: DETECTOR

RoHS Compliant REACH Compliant UL Certified ENEC Certified

PP1 Series Push-Pull Pushbutton Detector Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PP1-EB7-1A2

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PP1-EB7-1A2

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PP1-EB7-1A2 from our authorized distributors.

In-Stock Distributors

DETECTOR, 16A, 125VAC, SPDT, On-(On), Panel Mount, Snap-In

Powered by oemsecrets

About PP1 Series

  • Electrical ratings:
    • 16A 125VAC; UL, cUL
    • 12A 250VAC; UL, cUL
    • 1HP 125/250VAC; UL, cUL
  • Panel mount snap-in design;  IP40 rated
  • Panel cutout size: 28.4mm x 13.5mm
  • SPDT, push-pull or momentary functions
  • Straight, push-pull, or short actuator options
  • Quick connect 0.187″ or 0.250″ termination options; vertical, horizontal, or angled
  • Black or white body and actuator color options
  • 50,000 cycles mechanical life
  • Silver contact material
  • 0°C to 85°C operating temperature
  • Acts as a door interlock switch or detector switch

Detector/Pushbutton Switch: E-Switch PP1 Series & PP2 Series

PP1 Series Markets

Audio Visual

Product Specifications

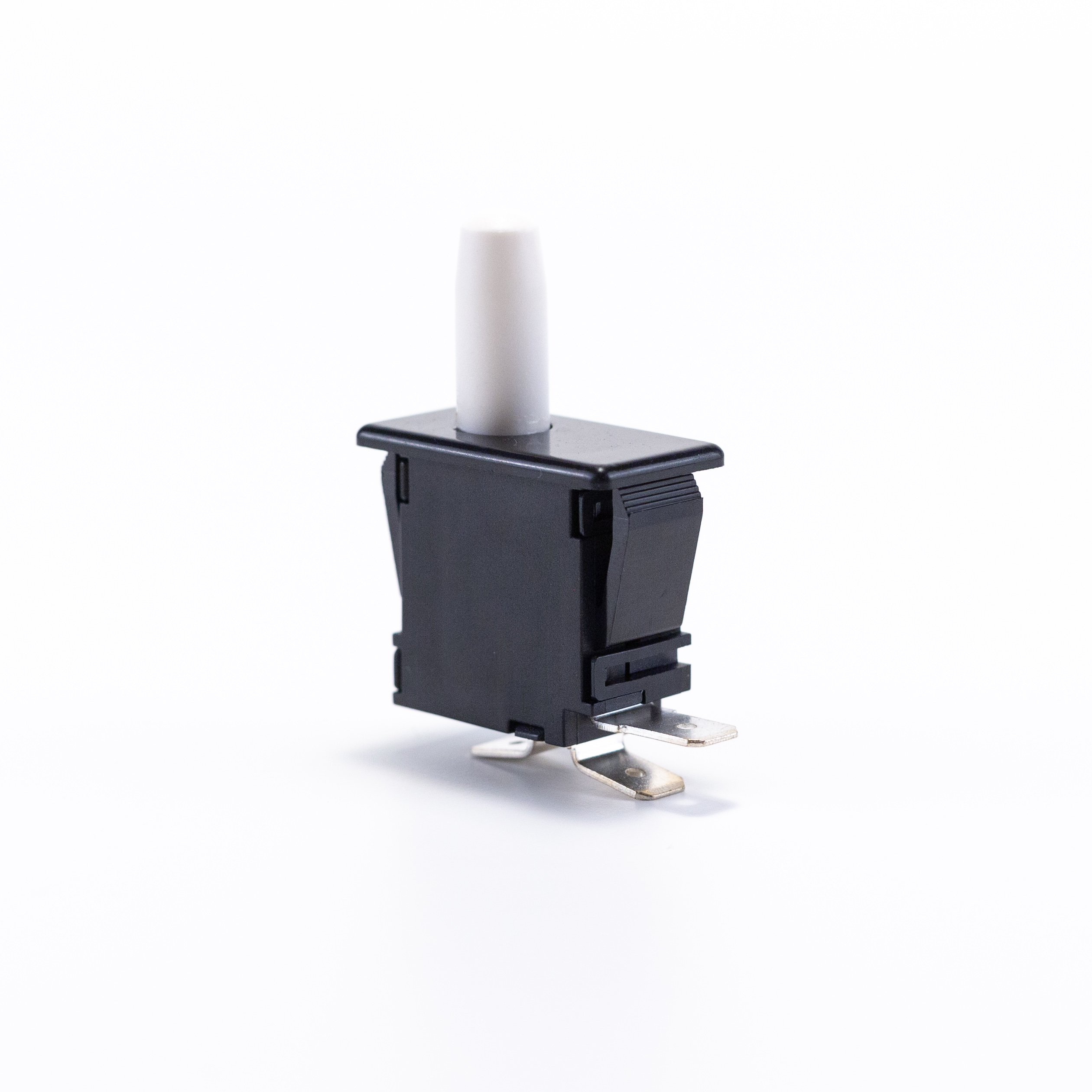

PP1-EB7-1A2

DETECTOR, 16A, 125VAC, SPDT, On-(On), Panel Mount, Snap-In

  • Series Name PP1
  • PackagingBulk
  • Current Rating16A
  • Voltage Rating125VAC
  • CircuitSPDT
  • FunctionOn-(On)
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.250"
  • Actuator TypeRound (Pin Plunger)
  • Actuator ColorWhite
  • Actuator Height21.70mm
  • Ingress ProtectionIP40
  • Operating Force300gf
  • Panel Cutout DimensionsRectangular - 28.2mm x 13.3mm
  • Operating Temperature0°C to 85°C
