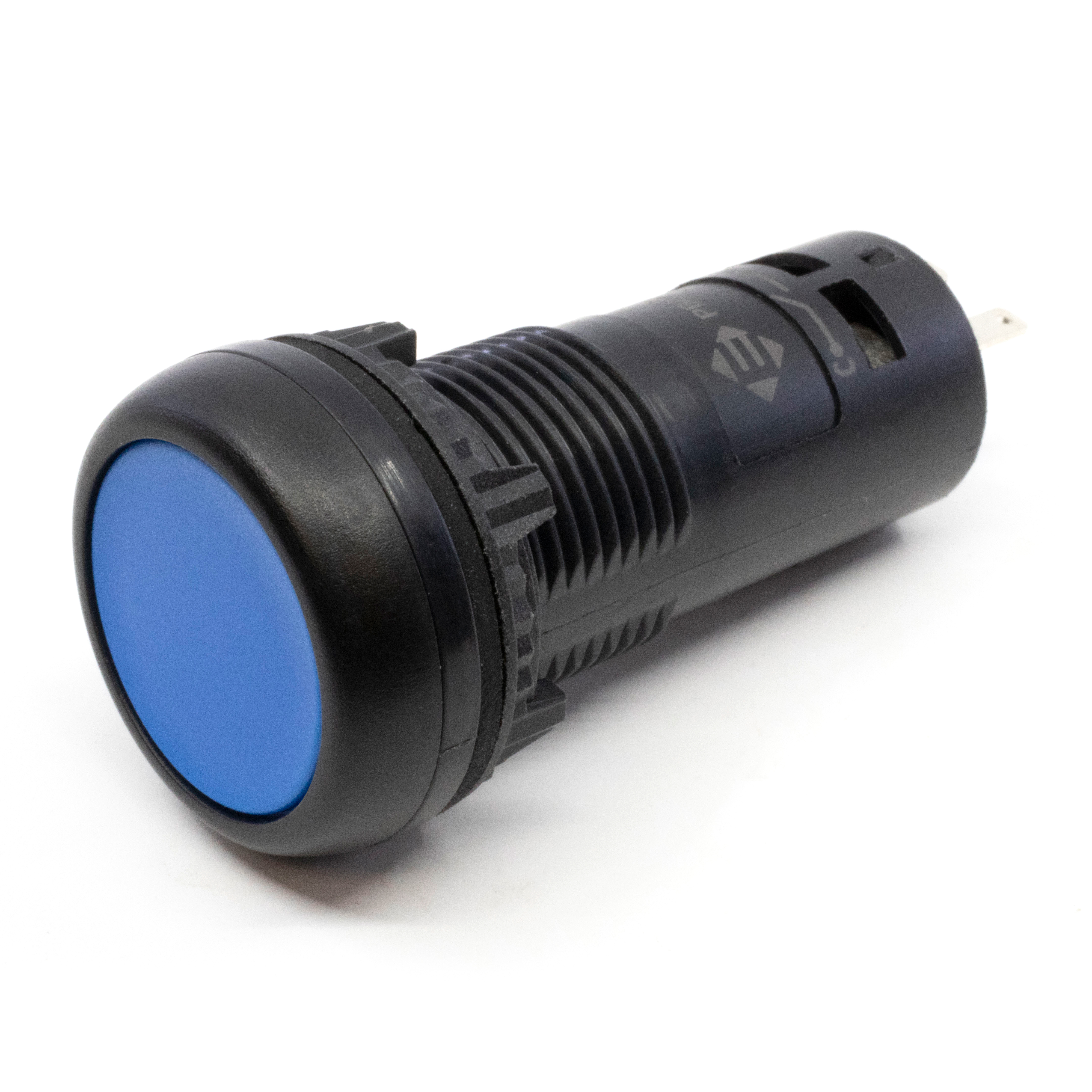

PBA22 Series Pushbutton Switch

PBA22 Series Pushbutton Switch

PBA22 Series: PBA22F2ABLU

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant

PBA22 Series Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PBA22F2ABLU

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample Request Quote

Stock Check for PBA22F2ABLU

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PBA22F2ABLU from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 6A, 230VAC, SPST, Off-(On), Panel Mount, Threaded Body with Nut

Powered by oemsecrets

About PBA22 Series

  • IP65 rated
  • 22mm diameter panel cutout
  • 6A, 230VAC;  1.5A, 24VDC
  • Modular interface/contact block design
  • Panel mount, threaded body with nut design
  • SPST, DPST, or DPST-NO/NC circuit;  momentary function
  • Round button, flush actuator; many actuator color options
  • Quick connect – 0.110″ termination
  • -25°C to 65°C operating temperature
  • Attractive front panel design

Value Added: Easy Custom Assemblies From E-Switch

PBA22 Series Markets

Agricultural

Product Specifications

PBA22F2ABLU

PUSHBUTTON, 6A, 230VAC, SPST, Off-(On), Panel Mount, Threaded Body with Nut

  • Series Name PBA22
  • PackagingBulk
  • Current Rating6A
  • Voltage Rating230VAC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Threaded Body with Nut
  • Termination TypeQuick Connect - 0.110
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorBlue
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP65
  • Panel Cutout DimensionsCircular - 22mm Dia.
  • Operating Temperature-25°C to 65°C


Support for PBA22F2ABLU

Not the product you are looking for? Configure your product

Product Inquiry Request Sample Request Quote
