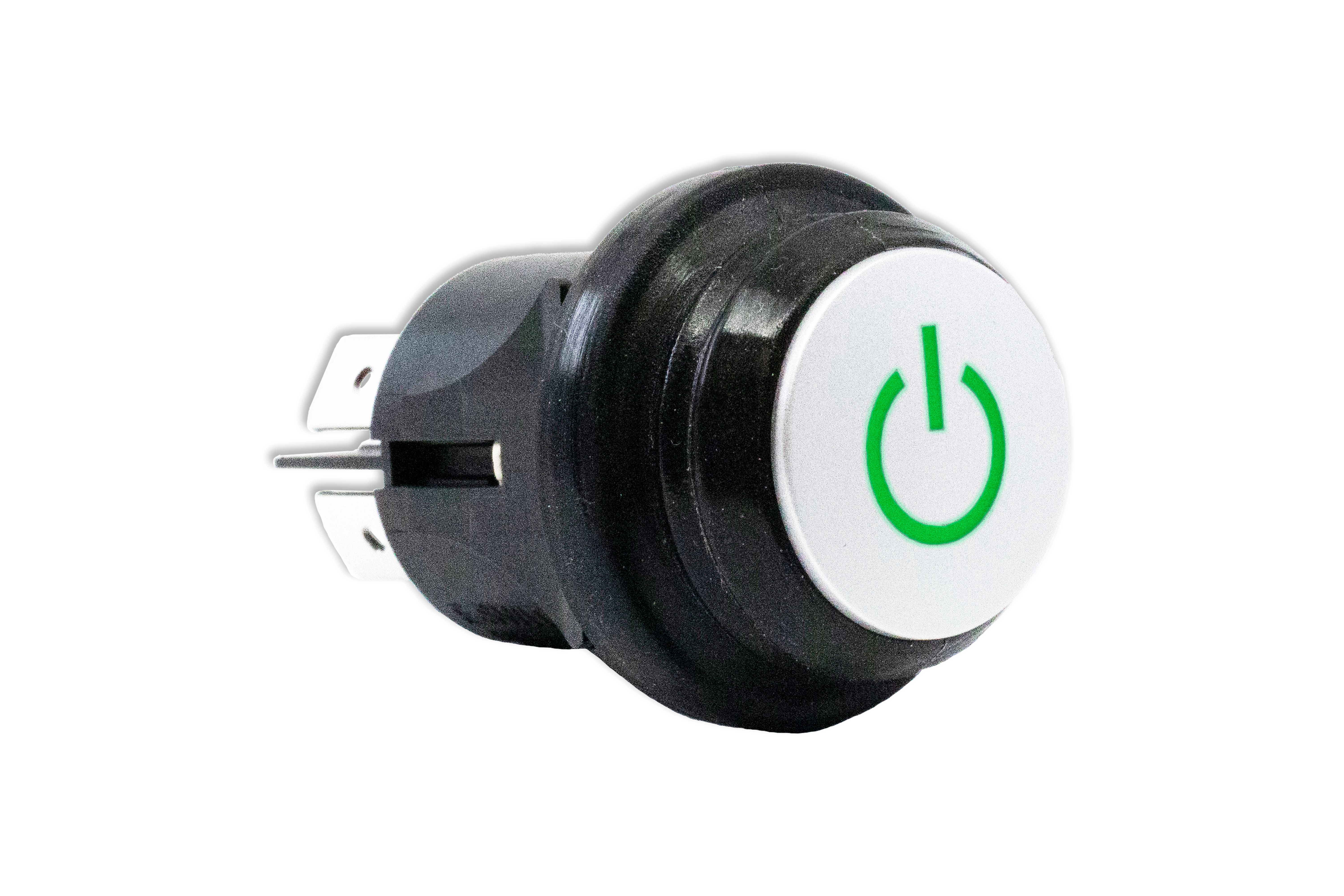

PB66 Series Illuminated, Power Pushbutton Switch

PB66 Series Illuminated, Power Pushbutton Switch Wire Leads & Connectors Available

PB66 Series: PB66EE2CR6P31

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant UL Certified

PB66 Series Illuminated, Power Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PB66EE2CR6P31

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PB66EE2CR6P31

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PB66EE2CR6P31 from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 16A, 127VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated

Powered by oemsecrets

About PB66 Series

  • 25mm cutout size; IP66 rated
  • 16(16)A 127VAC, UL Certified, High Current Pushbutton
  • Power symbol illuminated or laser etched
  • Multiple illumination color options
  • 50,000 cycle electrical life
  • Operating Temperature: 0°C to 55°C
  • DPST circuit, Latching function

E-Switch E-Bits: PB66 Series Pushbutton Switch

PB66 Series Markets

Appliance

Product Specifications

PB66EE2CR6P31

PUSHBUTTON, 16A, 127VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated

  • Series Name PB66
  • PackagingBulk
  • Current Rating16A
  • Voltage Rating127VAC
  • CircuitDPST
  • FunctionOff-On
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.250"
  • Actuator TypeRound, Button
  • Actuator ColorSilver
  • Illumination StylePower Symbol
  • Illumination ColorLED, Green
  • Illumination Voltage127V
  • Ingress ProtectionIP66
  • Panel Cutout DimensionsCircular - 25mm Dia.
  • Operating Temperature0°C to 55°C

Support for PB66EE2CR6P31

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
