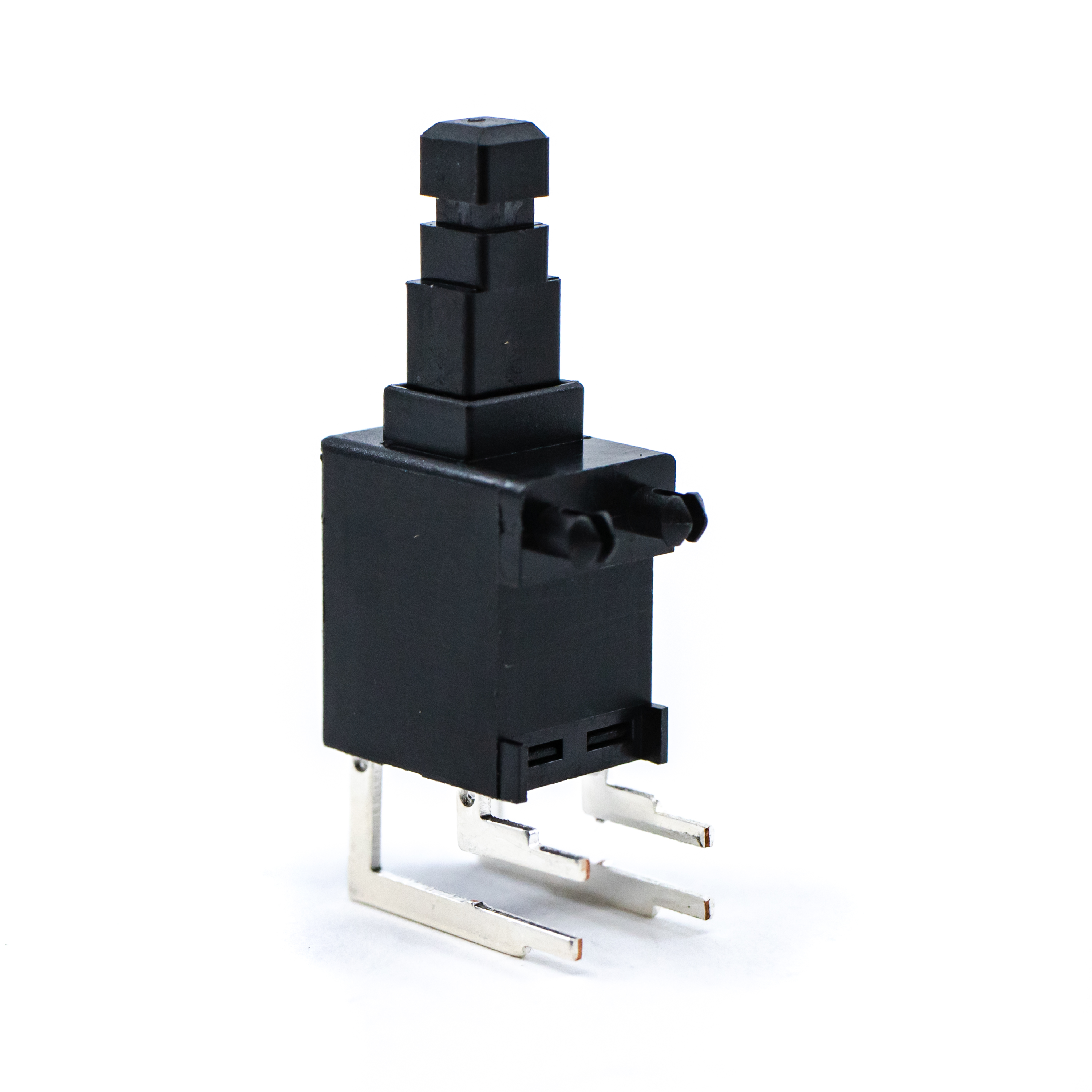

PB400 Series Right Angle Pushbutton Switch
Stock Check for PB400EEQX
Not the product you are looking for? Configure your product
PUSHBUTTON, 3A, 30VDC, DPST, Off-On, Through Hole, Right Angle
About PB400 Series
- Low cost
- Right angle pushbutton switch
- DPST
- Momentary or maintained (latching) functionality
- Electrical Rating: 3A @ 30VDC
- Travel
- Switch to make: 1.8mm
- Latch: 2.2mm (Latching)
- Full Actuation: 3.2mm
- Optional black cap
- Operating Temperature: -5°C to 60°C
- Terminal: Copper, Silver Plated
PB400 Series Markets
Product Specifications
PB400EEQX
PUSHBUTTON, 3A, 30VDC, DPST, Off-On, Through Hole, Right Angle
- Series Name PB400
- PackagingBulk
- Current Rating3A
- Voltage Rating30VDC
- CircuitDPST
- FunctionOff-On
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypePlunger for Cap
- Actuator ColorBlack
- Illumination Style-
- Illumination Color-
- Operating Temperature-5°C to 60°C
