Read MorePB350 Series Illuminated, Long Travel Pushbutton Switch
PB350 Series Illuminated, Long Travel Pushbutton Switch
Stock Check for PB350STRW
Not the product you are looking for? Configure your product
PUSHBUTTON, 30mA, 28VDC, SPST, Off-(On), Through Hole, Illuminated
About PB350 Series
- SPST or SPDT/Double action
- Double action: first circuit closes mid travel, second at full travel
- Long travel – 2.0mm
- High actuation force
- Tactile response
- Compact size of 12.4mm x 12.4mm x 12.8mm
- Five different LED color options (red, blue, green, yellow or white)
- Electrical Rating: 30mA @ 28 VDC
- Gold contacts
- Electrical Life: 20,000 cycles
- Operating Temperature: -40°C to 85°C
PB350 Series Markets
Product Specifications

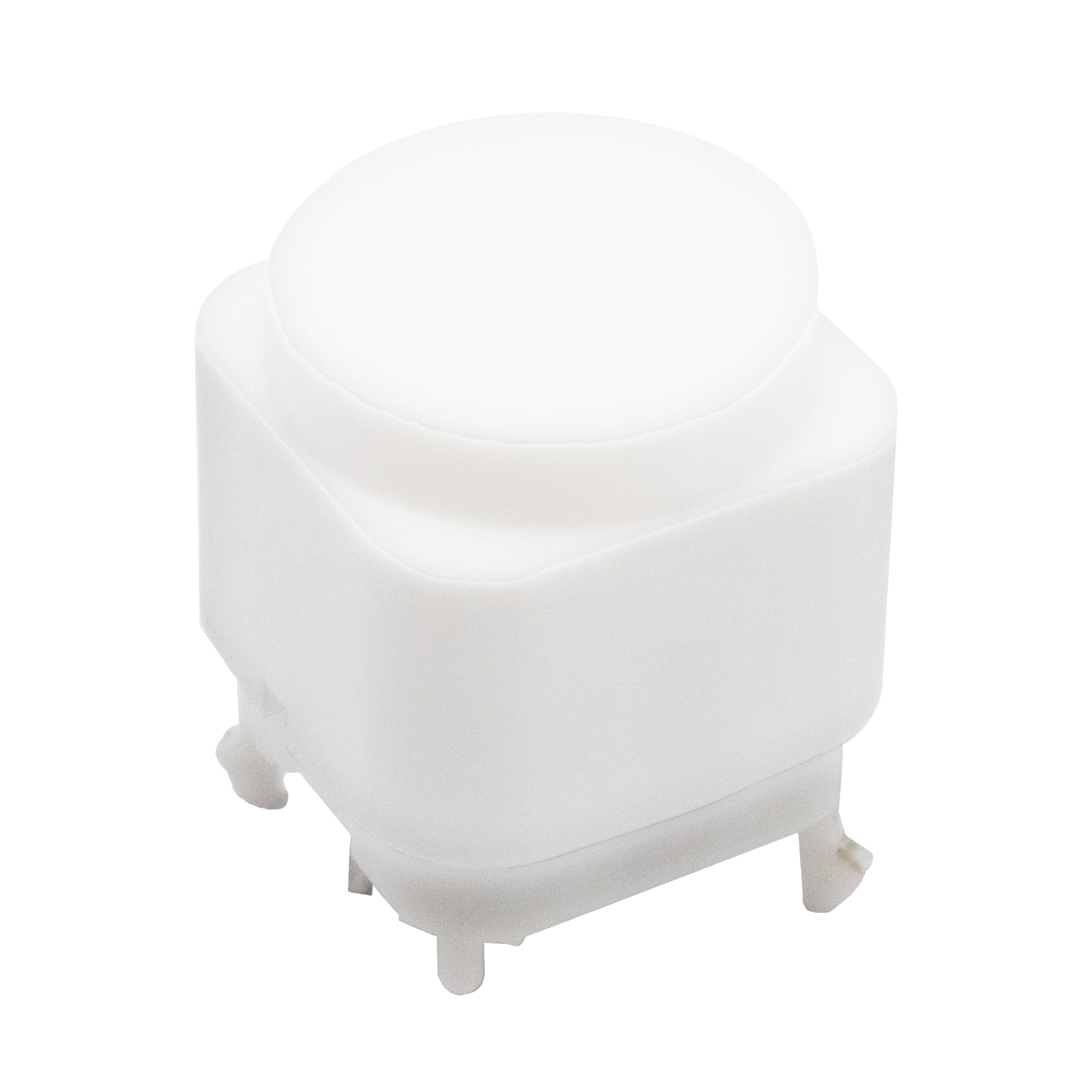

PB350STRW
PUSHBUTTON, 30mA, 28VDC, SPST, Off-(On), Through Hole, Illuminated
- Series Name PB350
- PackagingBulk
- Current Rating30mA
- Voltage Rating28VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeRound, Button
- Actuator ColorWhite
- Illumination StyleFull
- Illumination ColorLED, White
- Illumination Voltage3.2VDC
- Operating Temperature-40°C to 85°C
Support for PB350STRW
Not the product you are looking for? Configure your product
