PB2 Series Illuminated, Power Pushbutton Switch

PB2 Series Illuminated, Power Pushbutton Switch Wire Leads & Connectors Available

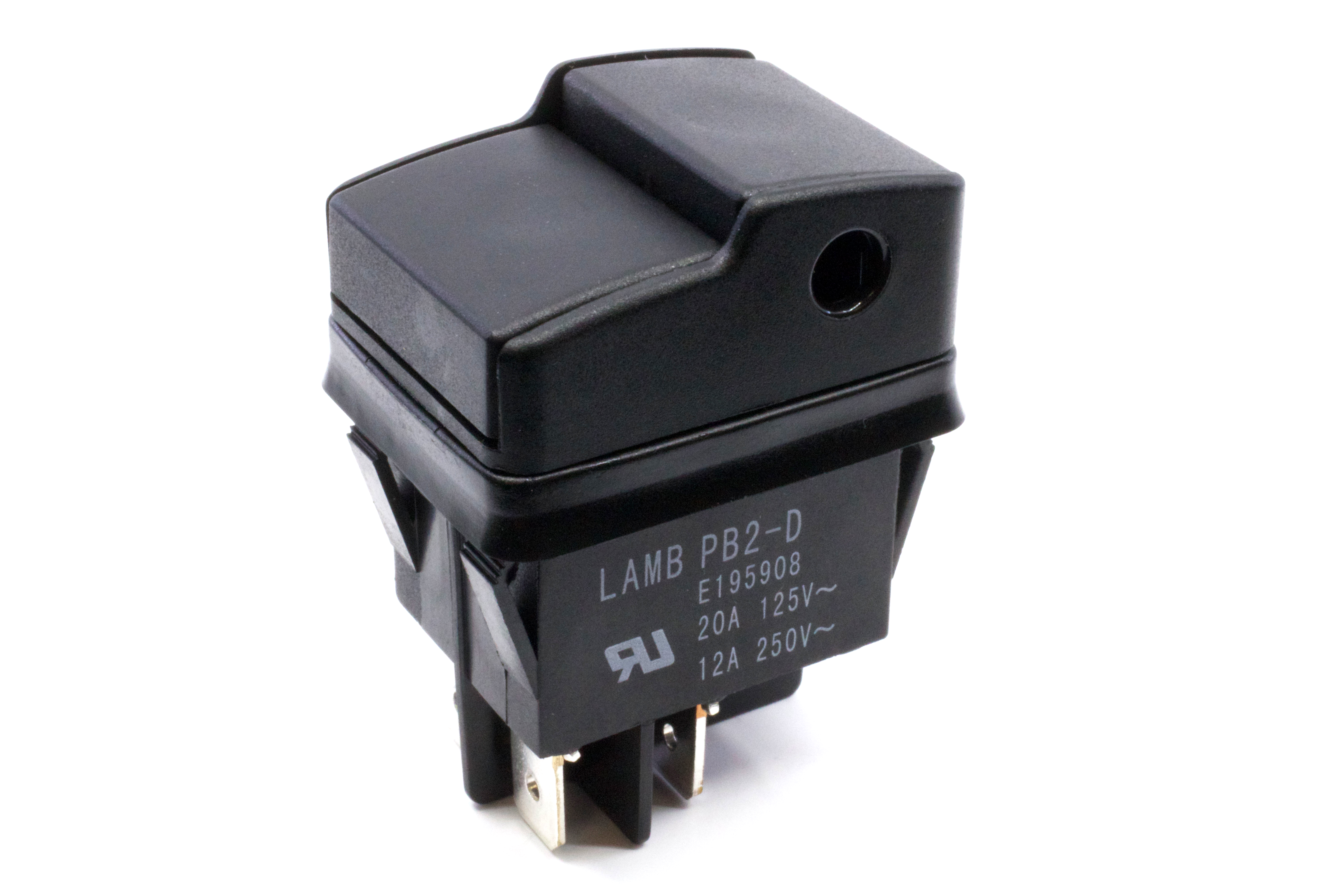

PB2 Series: PB2L42D1100

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant UL Certified

PB2 Series Illuminated, Power Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PB2L42D1100

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PB2L42D1100

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PB2L42D1100 from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 20A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated

Powered by oemsecrets

About PB2 Series

  • High electrical rating of 20A, 125VAC [cURus UL508] RoHS compliant
  • IP54 rating for dust and water resistance (internal O-rings)
  • 22mm x 30mm panel cutout
  • Multiple illumination voltage options and lens colors
  • Single-pole or Double-pole functions
  • Actuator color and marking options

PB2 Series Markets

Industrial

Product Specifications

PB2L42D1100

PUSHBUTTON, 20A, 125VAC, DPST, Off-On, Panel Mount, Snap-In, Illuminated

  • Series Name PB2
  • PackagingBulk
  • Current Rating20A
  • Voltage Rating125VAC
  • CircuitDPST
  • FunctionOff-On
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeQuick Connect - 0.250"
  • Actuator TypeSquare, Button, Dual
  • Actuator ColorBlack
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP54
  • Panel Cutout DimensionsRectangular - 30mm x 22mm
  • Operating Temperature-20°C to 85°C
