Read MorePA4 Series Illuminated, Power Pushbutton Switch

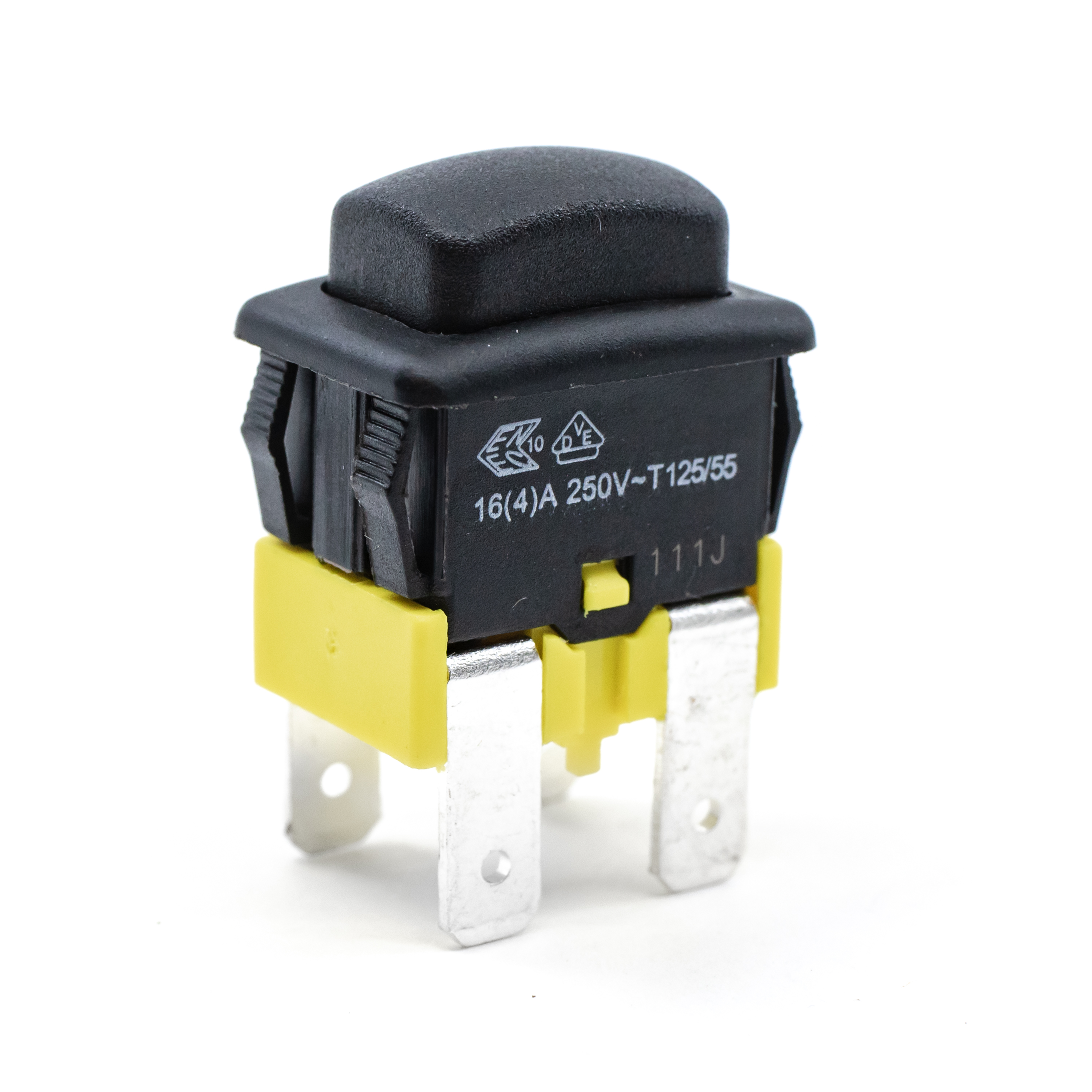

PA4 Series Illuminated, Power Pushbutton Switch
Stock Check for PA41EC1100
Not the product you are looking for? Configure your product
PUSHBUTTON, 16A, 125VAC, DPST, Off-(On), Panel Mount, Snap-In
About PA4 Series
- Durable, robust and economical
- High power rating: 16A 125/250VAC; UL, cUL
- 13mm x 19mm panel cutout
- Standard and water-resistant (IP54) versions
- Full illumination options
- Solder, 4.8mm Tab, 6.3mm Tab termination options
- Eight actuator marking options
PA4 Series Markets
Product Specifications
PA41EC1100
PUSHBUTTON, 16A, 125VAC, DPST, Off-(On), Panel Mount, Snap-In
- Series Name PA4
- PackagingBulk
- Current Rating16A
- Voltage Rating125VAC
- CircuitDPST
- FunctionOff-(On)
- Mounting TypePanel Mount, Snap-In
- Termination TypeQuick Connect - 0.187
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator ColorBlack
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Panel Cutout DimensionsRectangular - 19mm x 13mm
- Operating Temperature-20°C to 65°C
Support for PA41EC1100
Not the product you are looking for? Configure your product
