MS Series Miniature Snap Action Switch
Stock Check for MS0850502F030P1A
Not the product you are looking for? Configure your product
SNAP ACTION, 5A, 125/250VAC, SPDT, On-(Off), Through Hole
About MS Series
- Electrical Ratings:
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 5A, 125/250VAC; UL, cUL, VDE
- SPDT or SPST-NO circuit; momentary function
- Chassis mount, through hole, or through hole right angle mounting options
- Solder lug, quick connect, PCB pin, or right/left angled PCB pin termination options
- Pin plunger, lever, roller, or simulated roller actuator options
- Between 10gf – 295gf operating force options
- 1,000,000 cycles mechanical life
- Gold or silver contact material
- -25°C to 85°C operating temperature
MS Series Markets
Product Specifications

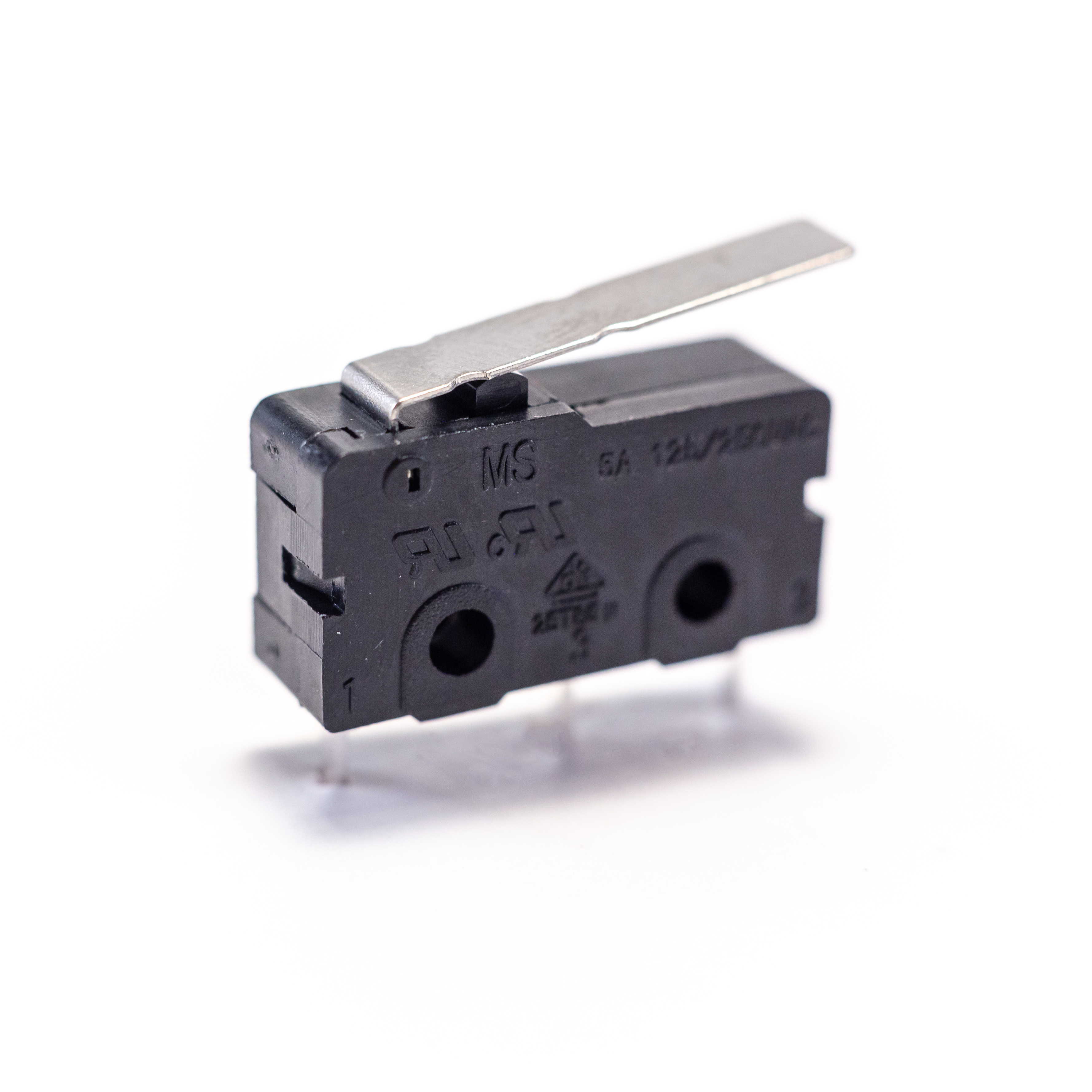

MS0850502F030P1A
SNAP ACTION, 5A, 125/250VAC, SPDT, On-(Off), Through Hole
- Series Name MS
- PackagingBulk
- Current Rating5A
- Voltage Rating125/250VAC
- CircuitSPDT
- FunctionOn-(Off)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeLever, Straight
- Operating Force30gf
- Operating Temperature-25°C to 85°C
Support for MS0850502F030P1A
Not the product you are looking for? Configure your product
