Read MoreLP6 Series Illuminated Pushbutton Switch

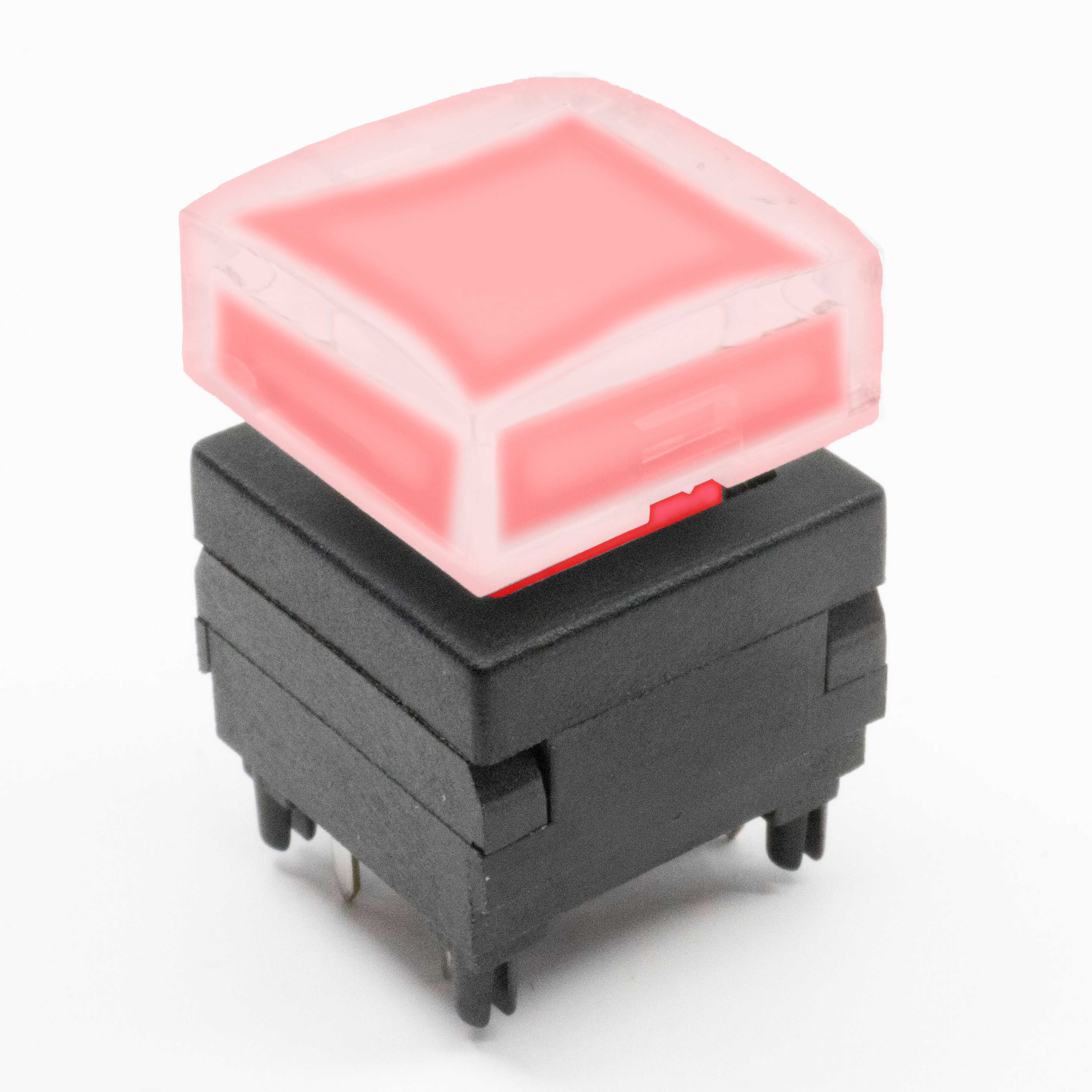

LP6 Series Illuminated Pushbutton Switch
Stock Check for LP6OA2ASRG
Not the product you are looking for? Configure your product
PUSHBUTTON, 12mA, 12VDC, DPST, Off-(On), Through Hole, Illuminated
About LP6 Series
- Single pole or double pole functions
- 15mm square, sculptured cap
- Multiple color options including RGB color
- Life expectancy of 200,000 cycles
- Through-hole mounting design
- Full LED illumination options
- SPST, DPST; momentary functions
- Electrical Rating: 12mA @ 12VDC
- Travel: 2.20mm
- Operating/Storage Temperature: -20°C to 70°C
- Operating Force: 150gf for SPST, 200gf for DPST
LP6 Series Markets
Product Specifications
LP6OA2ASRG
PUSHBUTTON, 12mA, 12VDC, DPST, Off-(On), Through Hole, Illuminated
- Series Name LP6
- PackagingBulk
- Current Rating12mA
- Voltage Rating12VDC
- CircuitDPST
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeSquare, Button
- Illumination StyleFull
- Illumination ColorLED, Red/Green
- Operating Temperature-20°C to 70°C
Support for LP6OA2ASRG
Not the product you are looking for? Configure your product
