Read MoreLC Series Right Angle Pushbutton Switch

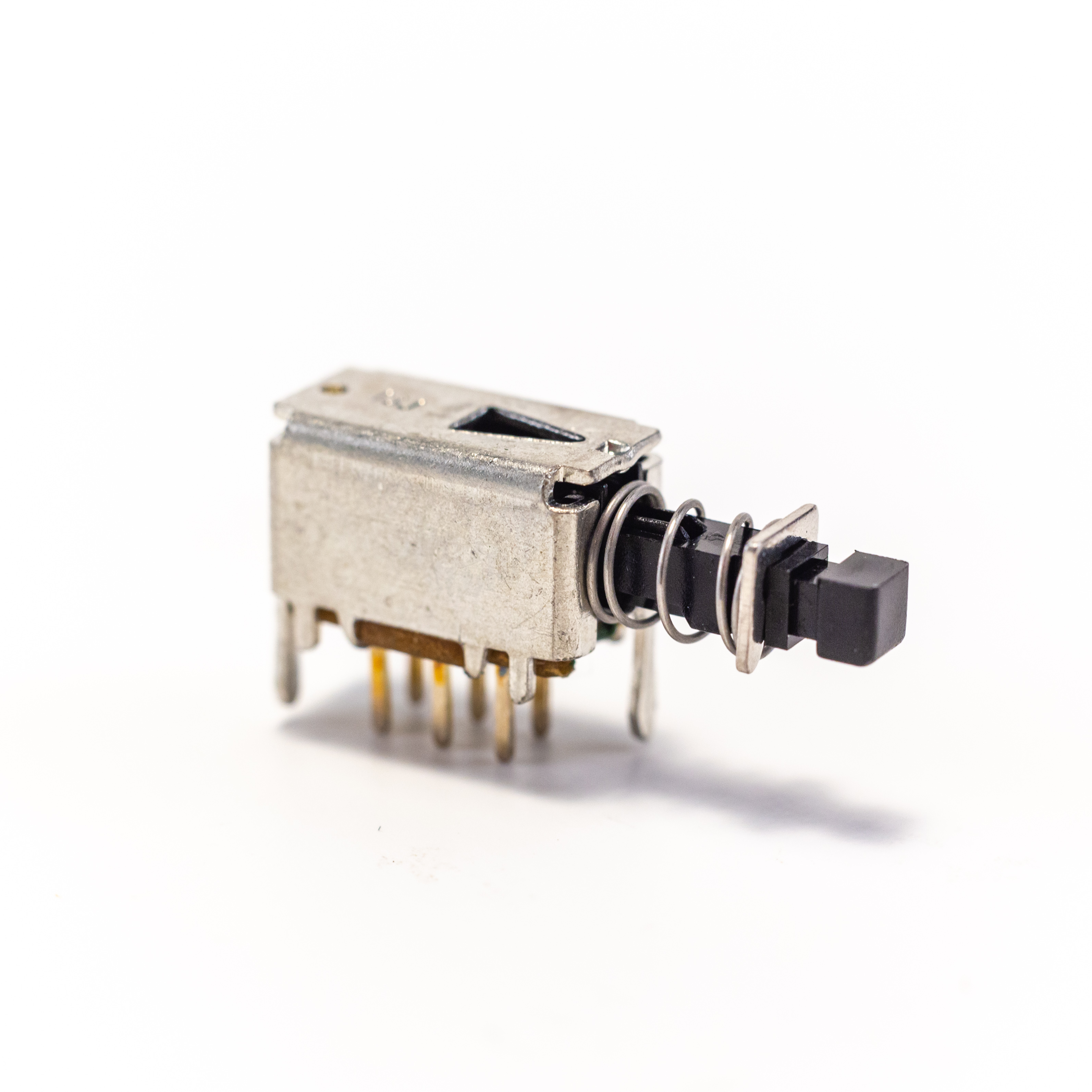

LC Series Right Angle Pushbutton Switch
Stock Check for LC2259OANP
Not the product you are looking for? Configure your product
PUSHBUTTON, 300mA, 30VDC, DPDT, On-(On), Through Hole, Right Angle
About LC Series
- Latching and momentary functions
- Shorting or non-shorting versions
- SPDT or DPDT functions
- Variety of housing styles available
- Operating Temperature: -20°C to 85°C
- Electrical Rating: 300mA @ 30VDC
- Through-hole mounting design
- Life Expectancy: 10,000 cycles typical
- Travel: 3.5mm
- Operating Force: 200gf to 330gf
LC Series Markets
Product Specifications
LC2259OANP
PUSHBUTTON, 300mA, 30VDC, DPDT, On-(On), Through Hole, Right Angle
- Series Name LC
- PackagingBulk
- Current Rating300mA
- Voltage Rating30VDC
- CircuitDPDT
- FunctionOn-(On)
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypePlunger for Cap
- Illumination Style-
- Illumination Color-
- Operating Temperature-20°C to 85°C
Support for LC2259OANP
Not the product you are looking for? Configure your product
