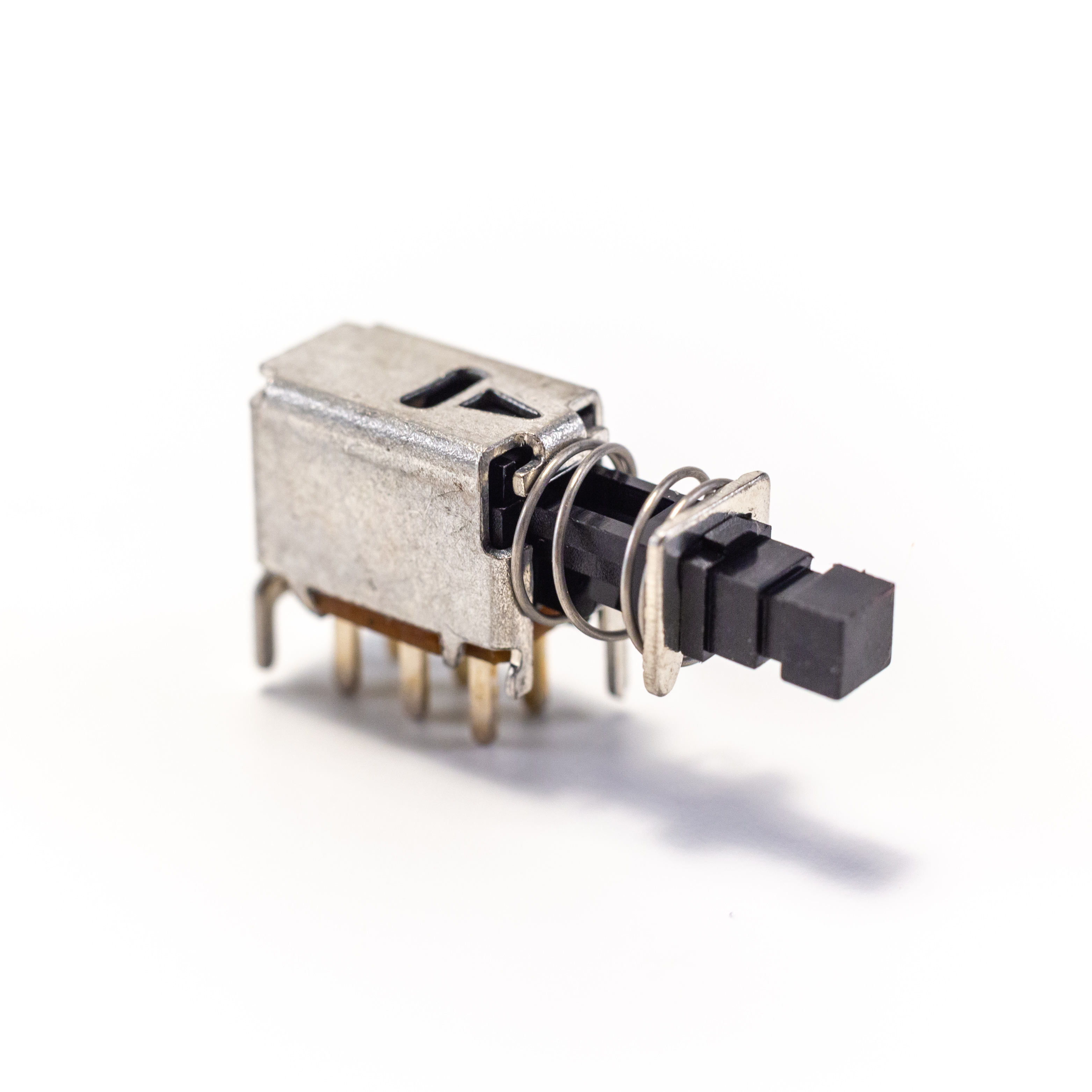

LC Series Right Angle Pushbutton Switch

LC Series: LC2255OANP

Categories: PUSHBUTTON

Series Data Sheet

LC Series Right Angle Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Model No.: Mechanical Config.: Timing: Termination:

* If you need further customization, we can help!

Current Configuration:

LC2255OANP

Spec Sheet (2D)

... in stock, available to buy now.

Quantity:

Additional Purchase Options:

Check Distributor Stock

Request Sample

Stock Check for LC2255OANP

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the LC2255OANP from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 300mA, 30VDC, DPDT, On-(On), Through Hole, Right Angle

Quantity:

About LC Series

Through hole right angle mounting design
Electrical Rating: 300mA @ 30VDC
SPDT or DPDT; latching or momentary function
PC Pin termination
Plunger for cap actuator; many cap options
Shorting or non-shorting
Variety of housing styles
Silver contact material
200gf-330gf operating force dependent on model
-20°C to 85°C operating temperature

E-Switch Featured Switch: LC Series Pushbutton Switch

LC Series Markets

Appliance Audio Visual Industrial Telecommunications

Product Specifications

LC2255OANP

PUSHBUTTON, 300mA, 30VDC, DPDT, On-(On), Through Hole, Right Angle

Series Name LC
PackagingBulk
Current Rating300mA
Voltage Rating30VDC
CircuitDPDT
FunctionOn-(On)
Mounting TypeThrough Hole, Right Angle
Termination TypePC Pin
Contact MaterialSilver
Actuator TypePlunger for Cap
Illumination StyleNon-illuminated
Illumination ColorNon-illuminated
Operating Temperature-20°C to 85°C

Support for LC2255OANP

Not the product you are looking for? Configure your product

Spec Sheet (2D)

PDF | English

Product Inquiry Request Sample
