LB22 Series Illuminated Pushbutton Switch

LB22 Series Illuminated Pushbutton Switch Wire Leads & Connectors Available

LB22 Series: LB22F2GQ7

Categories: PUSHBUTTON

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

LB22 Series Illuminated Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

LB22F2GQ7

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for LB22F2GQ7

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the LB22F2GQ7 from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 3A, 250VAC, DPDT, On-On, Panel Mount, Front

Powered by oemsecrets

About LB22 Series

  • Single-pole or double-pole functions, with latching or momentary options
  • Multiple actuator color and style options (laser etched power symbol available)
  • Operating Temperature: -20°C to 55°C
  • Silver or gold contacts
  • Electrical Rating: 3A @ 250VAC; IP65 rated
  • Electrical Life: 50,000 cycles
  • Available with or without illumination (from 3 volts to 220 volts)
  • Travel: 3.20mm

E-Switch E-bits: LB22 Series Pushbutton Switch

LB22 Series Markets

Audio Visual

Product Specifications

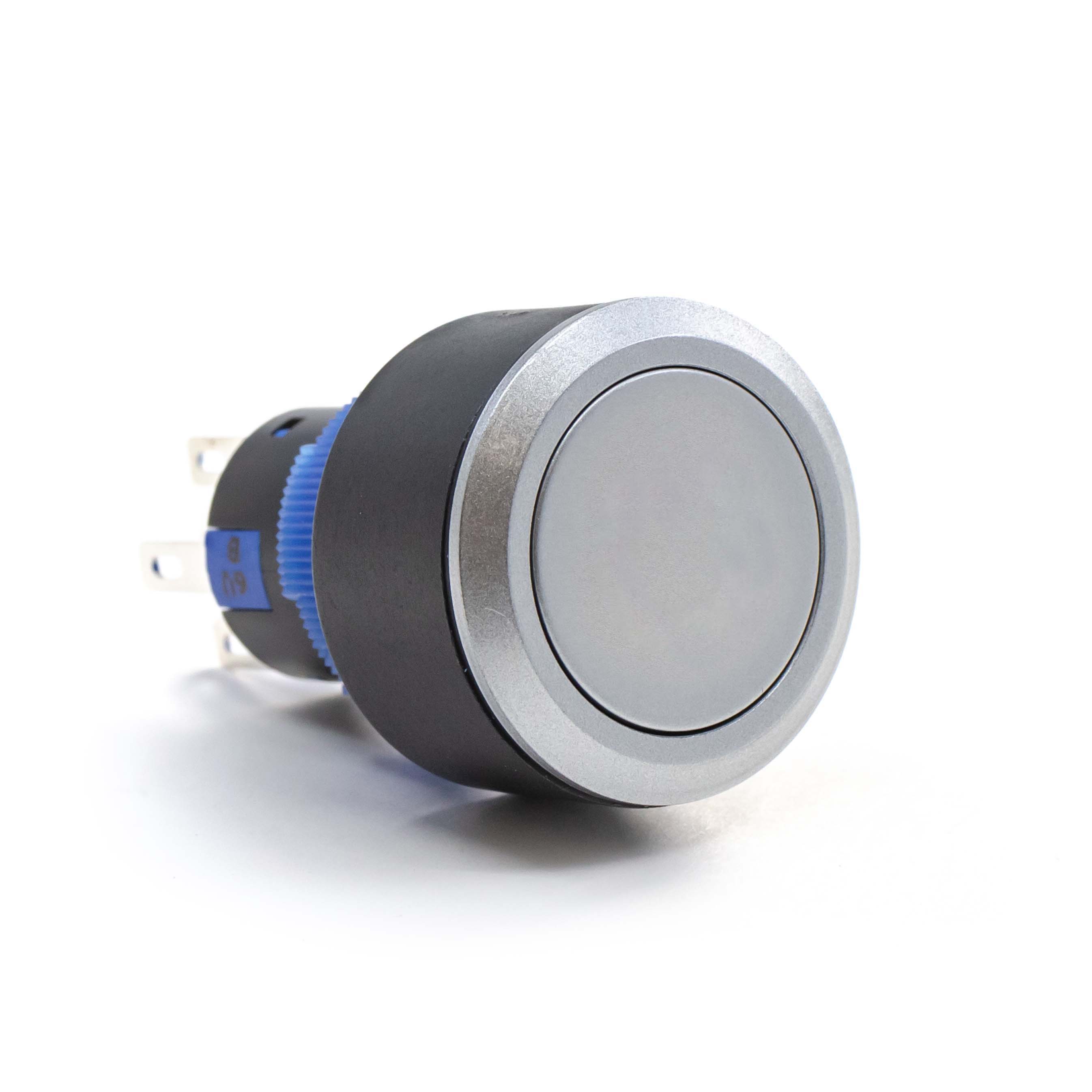

LB22F2GQ7

PUSHBUTTON, 3A, 250VAC, DPDT, On-On, Panel Mount, Front

  • Series Name LB22
  • PackagingBulk
  • Current Rating3A
  • Voltage Rating250VAC
  • CircuitDPDT
  • FunctionOn-On
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorSilver
  • Illumination Style-
  • Illumination Color-
  • Ingress ProtectionIP65
  • Panel Cutout DimensionsCircular - 22mm Dia.
  • Operating Temperature-20°C to 55°C

Support for LB22F2GQ7

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
