Read MoreLB22 Series Illuminated Pushbutton Switch
LB22 Series Illuminated Pushbutton Switch
Stock Check for LB22F23Q3131
Not the product you are looking for? Configure your product

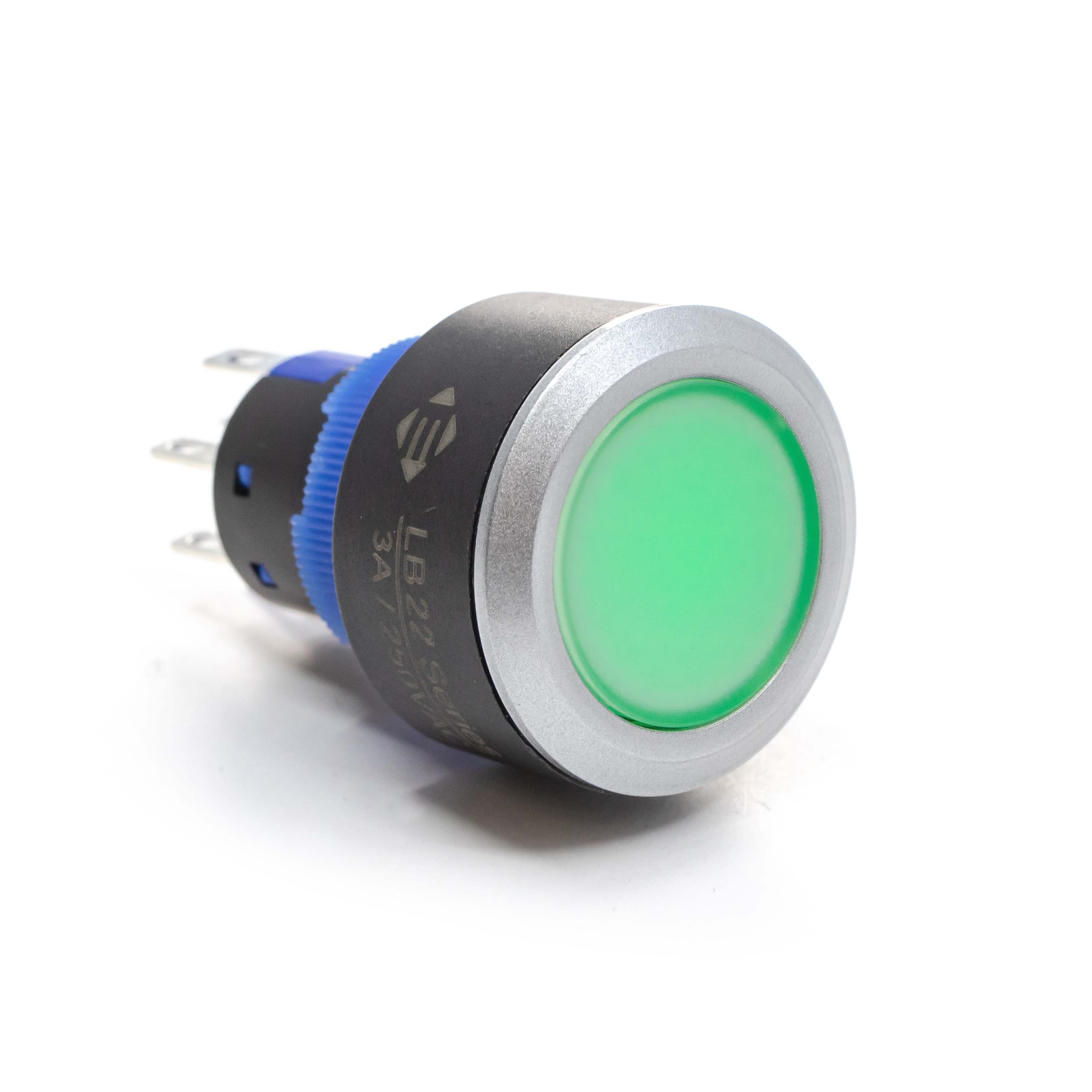

PUSHBUTTON, 3A, 250VAC, SPDT, On-On, Panel Mount, Front, Illuminated
About LB22 Series
- IP65 rated
- 22mm panel cutout
- 3A @ 250VAC
- SPDT or DPDT; latching or momentary
- Solder termination
- Full illumination, Power Symbol illumination, or non-illuminated
- Many LED color and voltage options;Â Many actuator color options
- Silver or gold contact material
- 50,000 cycles electrical life
- -20°C to 55°C operating temperature
Product Specifications
LB22F23Q3131
PUSHBUTTON, 3A, 250VAC, SPDT, On-On, Panel Mount, Front, Illuminated
- Series Name LB22
- PackagingBulk
- Current Rating3A
- Voltage Rating250VAC
- CircuitSPDT
- FunctionOn-On
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound, Button, Flush
- Actuator ColorGreen
- Illumination StyleFull
- Illumination ColorLED, Green
- Illumination Voltage3VDC
- Ingress ProtectionIP65
- Panel Cutout DimensionsCircular - 22mm Dia.
- Operating Temperature-20°C to 55°C
Support for LB22F23Q3131
Not the product you are looking for? Configure your product
