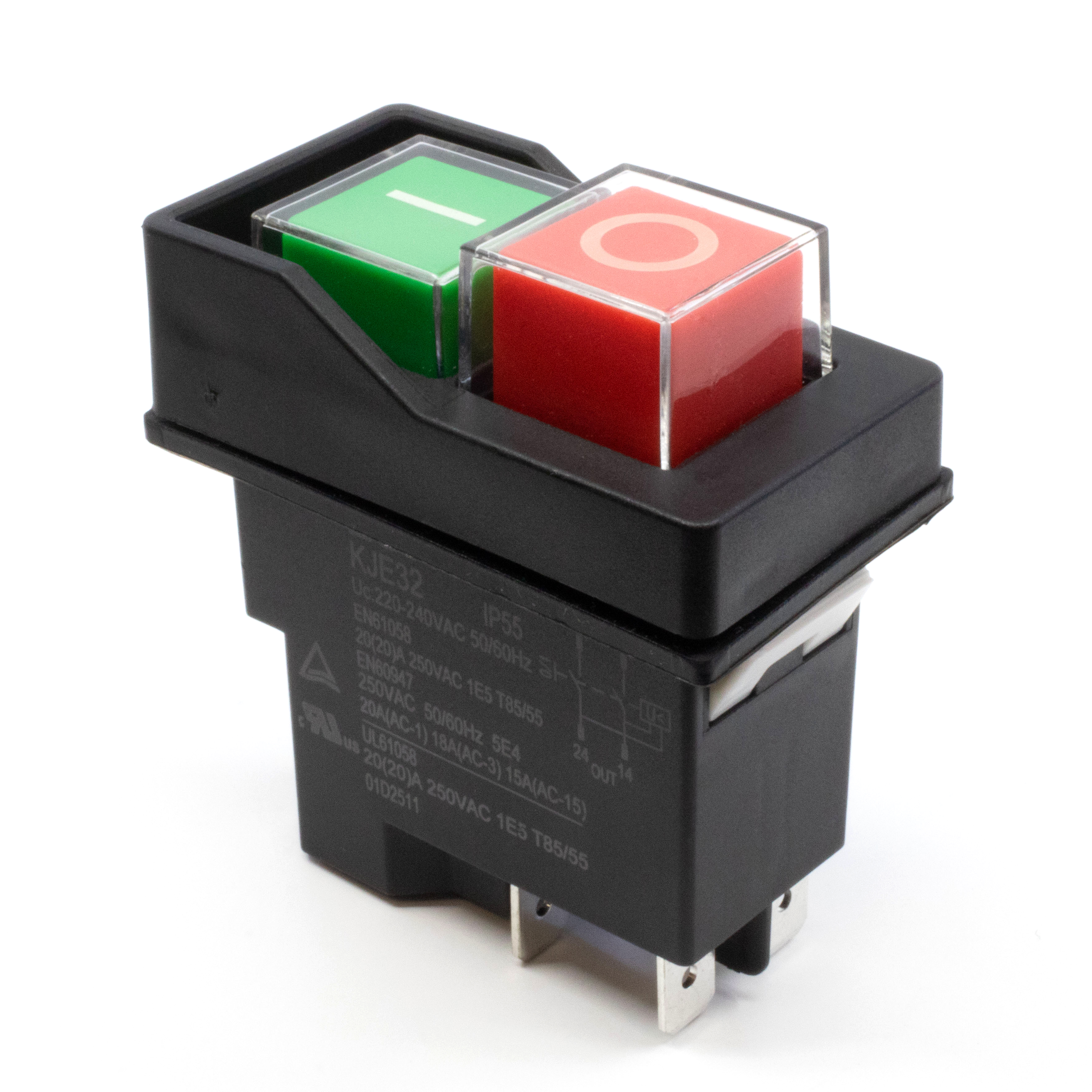

KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch

KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch Wire Leads & Connectors Available

KJE32 Series: KJE32211111

Categories: PUSHBUTTON

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant UL Certified ENEC Certified

KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

KJE32211111

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for KJE32211111

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the KJE32211111 from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 20A, (On)-Off-On, Panel Mount

Powered by oemsecrets

About KJE32 Series

  • Heavy duty industrial design
  • Electromagnet provides automatic safety protection against power outages and restarts
  • 46mm x 22mm x 2.5mm panel cutout
  • Contact Ratings (TUV and UL listed)
    • 20(20)A 250VAC 1E5 T85/55 TUV(EN61058)
    • 20(20)A 127VAC 1E5 T85/55 TUV(EN61058)
    • 20(20)A 127VAC 1E5 T85/55 UL (EN61058)
    • 25.1A 60VDC 10E4 T85/55 UL(EN61058)
  • PVC cap for dust and water protection – IP55 rating
  • Six different function options (2NO, 2NO w/ remote trip, NO + NC w/ remote trip, NO + NC, 2NO + NC, 2NO + NC w/ remote trip)
  • Black or yellow bezel options
  • Four different actuator marking styles

KJE32 Series Pushbutton Switch | E-Switch E-Bits

KJE32 Series Markets

Food Industry

Product Specifications

KJE32211111

PUSHBUTTON, 20A, (On)-Off-On, Panel Mount

  • Series Name KJE32
  • PackagingBulk
  • Current Rating20A
  • Function(On)-Off-On
  • Mounting TypePanel Mount
  • Termination TypeQuick Connect - 0.250"
  • Contact MaterialSilver
  • Actuator TypeSquare, Button, Dual
  • Actuator ColorRed/Green
  • Illumination Style-
  • Illumination Color-
  • MarkingI/O Vertical
  • Ingress ProtectionIP55
  • Panel Cutout DimensionsRectangular - 46mm x 22mm
  • Operating Temperature0°C to 55°C
