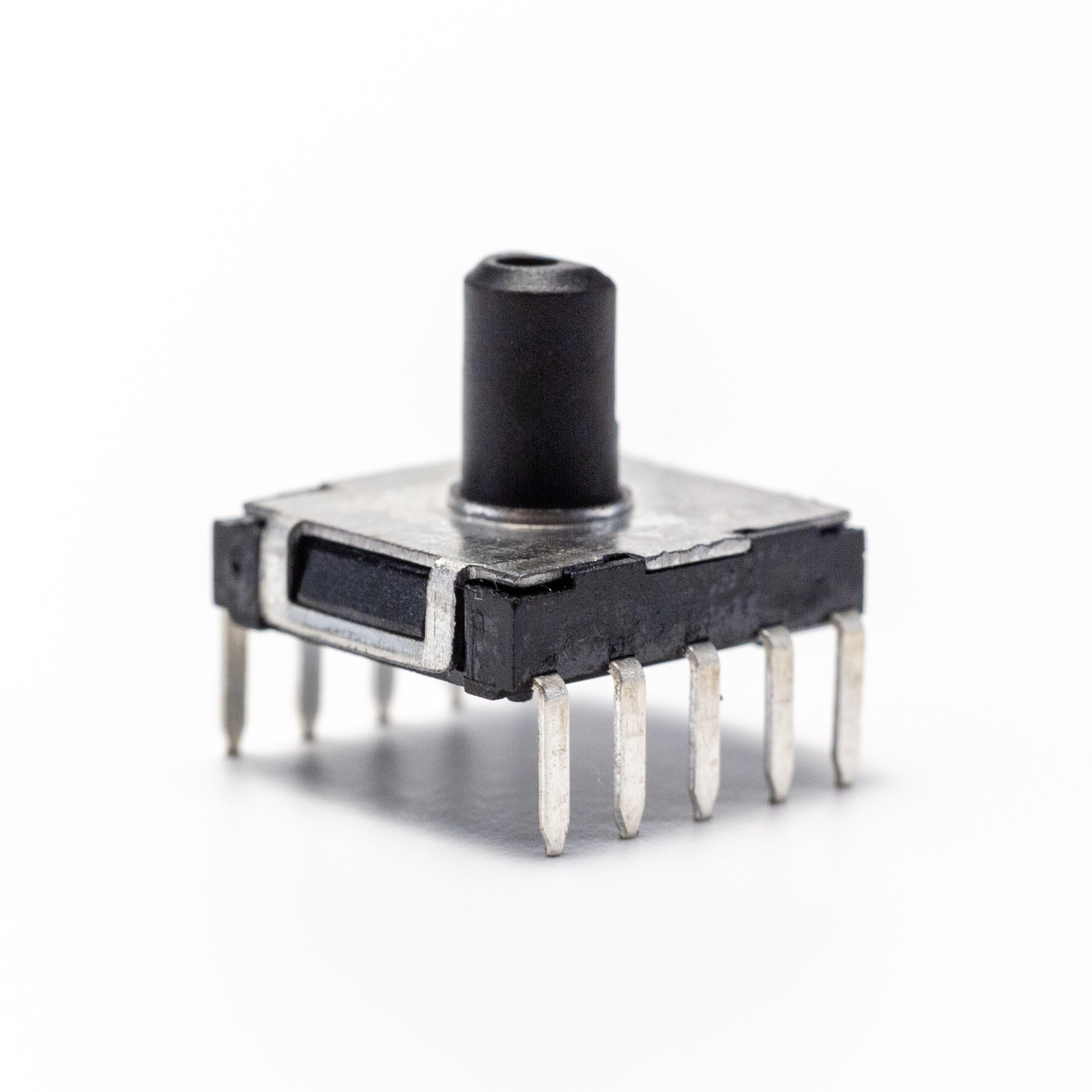

KC1901 Series Rotary Switch
Stock Check for KC1901A
Not the product you are looking for? Configure your product
ROTARY, 100mA, 16VDC, Through Hole
About KC1901 Series
- Electrical rating: 100mA, 16VDC
- Through hole mounting design
- SP9T – Single pole, 9 positions
- Rotary with shaft actuator, 9.8mm height off pcb
- 0.100″ (2.54mm), Full Pitch
- 0.488″ (12.40mm) length
- 0.5N/cm operating force
- 10,000 cycle life typical
- Silver contact material
KC1901 Series Markets
Product Specifications
KC1901A
ROTARY, 100mA, 16VDC, Through Hole
- Series Name KC1901
- PackagingBulk
- Current Rating100mA
- Voltage Rating16VDC
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeRotary with Shaft
- Actuator Height9.80mm
- Nbr of Positions9
