KAC Series Low Profile, Piano DIP Switch
Stock Check for KAC04LGGR
Not the product you are looking for? Configure your product
DIP, 25mA, 24VDC, SPST, Surface Mount, Right Angle
About KAC Series
- Electrical rating:Â Switch: 25mA @ 24VDC;Â Carry:Â 100mA @ 50VDC
- Through hole right angle or surface mount right angle (SMT) design
- 2, 4, 6, 8, or 10 positions; SPST each position
- Piano actuator; extended
- Splayed or gull wing termination
- 0.100″ (2.54mm) Full pitch
- Low profile, 5.1mm height off pcb
- 20 degrees nominal travel
- 2,000 cycle life
- Gold contact material
- -20°C to 85°C operating temperature
- Tube or tape and reel packaging
KAC Series Markets
Product Specifications

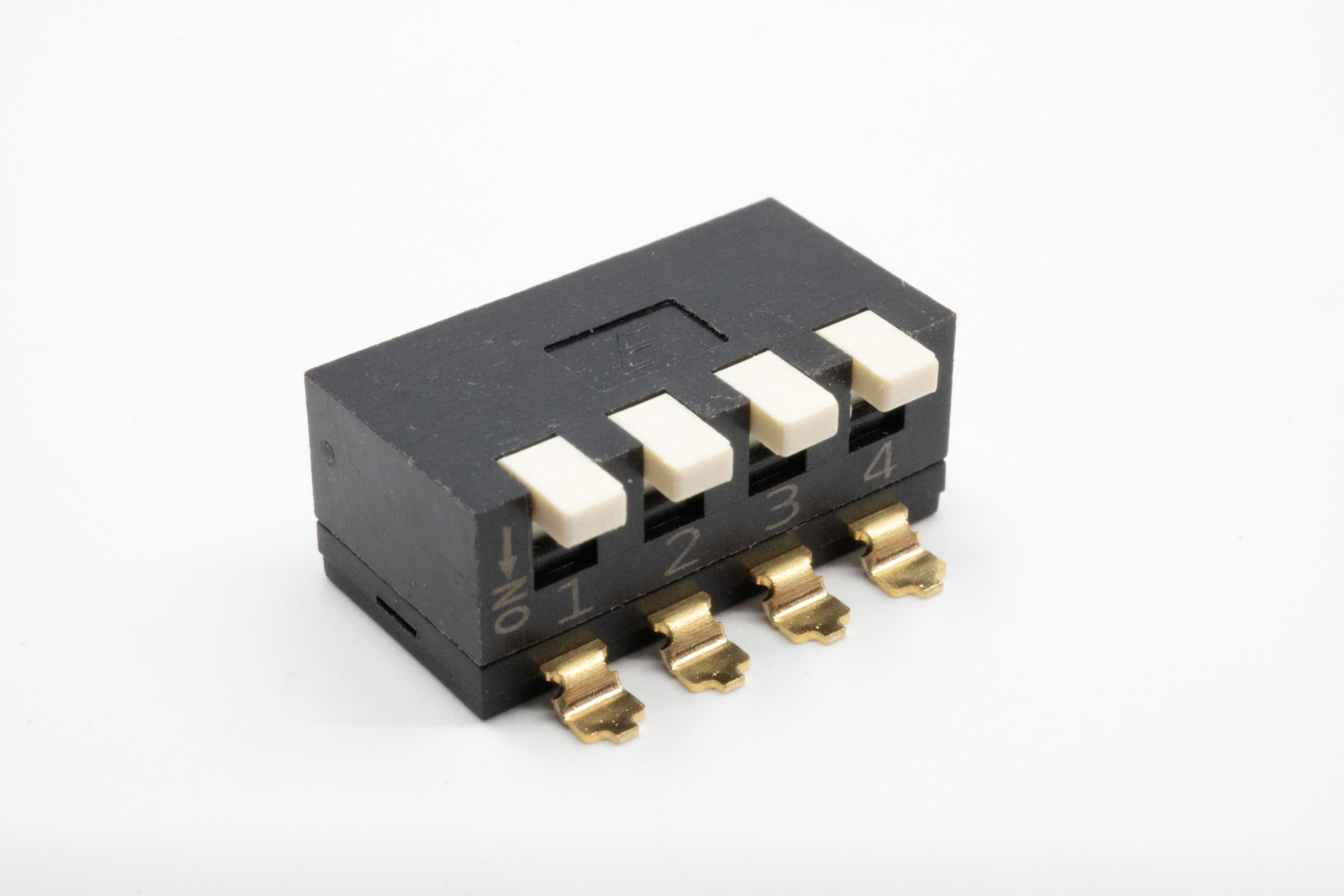

KAC04LGGR
DIP, 25mA, 24VDC, SPST, Surface Mount, Right Angle
- Series Name KAC
- PackagingTape & Reel
- Current Rating25mA
- Voltage Rating24VDC
- CircuitSPST
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypePiano
- Actuator Height5.10mm
- Operating Temperature-20°C to 85°C
- Nbr of Positions4
- Pitch0.100" (2.54mm), Full
