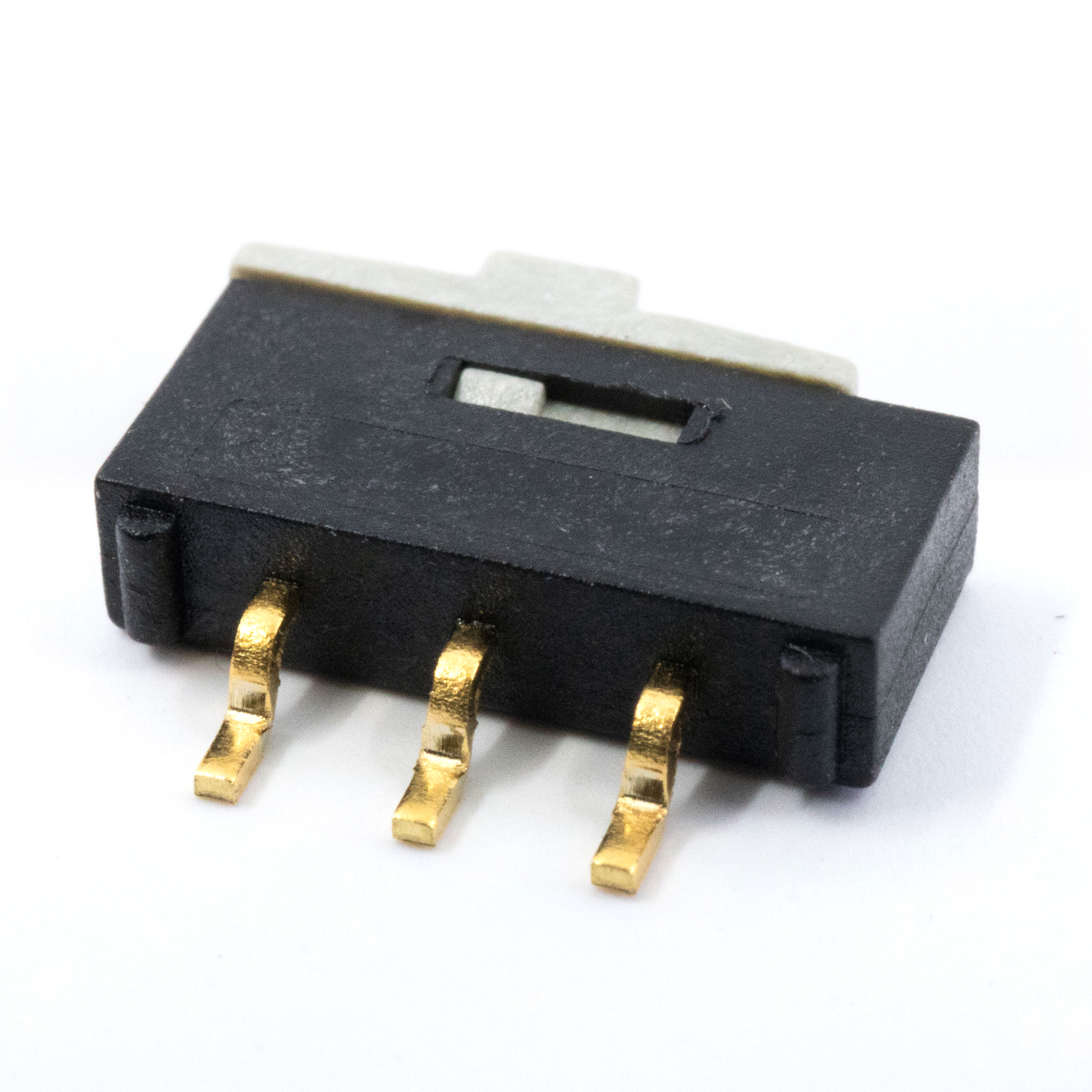

EGJ1210 Series Slide Switch
EGJ1210 Series Slide Switch
Stock Check for EGJ1210AAG2R
Not the product you are looking for? Configure your product
SLIDE, 300mA, 24VDC, SPDT, On-On, Surface Mount, Right Angle, Illuminated
About EGJ1210 Series
- Surface mount and through hole PC board design; right angle options
- 1.60mm travel
- Compact design
- 250 gram force
- SPDT function
- Tape and reel packaging (gull wing only)
- Operating/Storage Temperature: -40°C to +85°C
- Electrical Rating: 300mA @ 24VDC
- Electrical Life: 2,000 cycles
- Gold terminals
EGJ1210 Series Markets
Product Specifications
EGJ1210AAG2R
SLIDE, 300mA, 24VDC, SPDT, On-On, Surface Mount, Right Angle, Illuminated
- Series Name EGJ1210
- PackagingTape & Reel
- Current Rating300mA
- Voltage Rating24VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialGold
- Actuator TypeStandard
- Actuator Height1.40mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Temperature-40°C to 85°C
