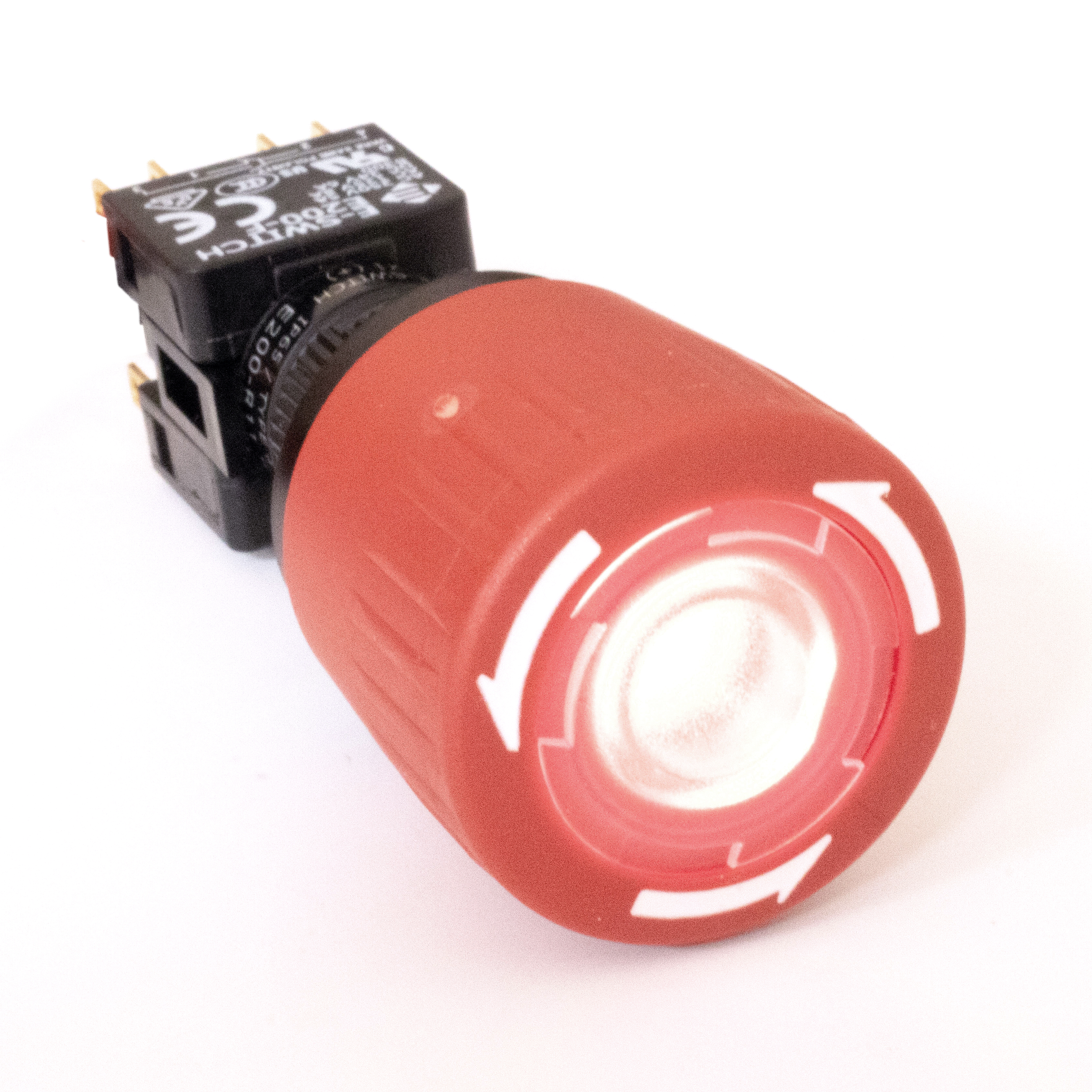

E200 Series Emergency Stop, Pushbutton Switch
Stock Check for E200-R11-A1KR
Not the product you are looking for? Configure your product
ESTOP, 8A, 125VAC, DPDT, On-On, Panel Mount, Front
About E200 Series
- IP65
- 16mm panel cutout size
- Agency Approvals:Â UL-cUL, ANSI/UL508; VDE, EN 61058-1 : IEC 61058-1
- Contact Arrangement options: 1NO/1NC+1NO/1NC, 1NO/1NC, 2NO, 1NO
- Contact Rating: 8A 125VAC, 6A 24VDC, 200mA 250VDC; 5A 250VAC [VDE]
- Pushlock turn to reset, design
- Multiple illumination options: LED, neon, incandescent, or no lamp
- Operating temperature: -25°C to 55°C (illuminated versions)
- Operating temperature: -25°C to 70°C (non-illuminated versions)
- 2000gf operating force
- 100,000 cycles min. mechanical life
E200 Series Markets
Product Specifications
E200-R11-A1KR
ESTOP, 8A, 125VAC, DPDT, On-On, Panel Mount, Front
- Series Name E200
- PackagingBulk
- Current Rating8A
- Voltage Rating125VAC
- CircuitDPDT
- FunctionOn-On
- Mounting TypePanel Mount, Front
- Termination TypeSolder
- Contact MaterialSilver
- Actuator TypeRound - Illuminated
- Actuator ColorRed
- Actuator Height30.50mm
- Ingress ProtectionIP65
- Operating Force2000gf
- Panel Cutout DimensionsCircular - 16mm Dia.
- Operating Temperature-25°C to 55°C
