Read More800U Series Sealed, Ultraminiature Pushbutton Switch
800U Series Sealed, Ultraminiature Pushbutton Switch
Stock Check for 800UDP8P1A1M6RER1BLK
Not the product you are looking for? Configure your product
PUSHBUTTON, 0.4VA, 20VAC/VDC, DPDT, On-(On), Through Hole, Right Angle
About 800U Series
- IP67 rated
- Electrical Ratings:
- Gold – 0.4VA, 20V max. (AC or DC)
- Through hole mounting design
- SPDT or DPDT; On-(On)
- PC Pin termination: straight, rt. angle horizontal, or rt. angle vertical
- Cap option: 800U R1 Cap – black, red or white
- Gold contact material
- Epoxy sealed
800U Series Markets
Product Specifications

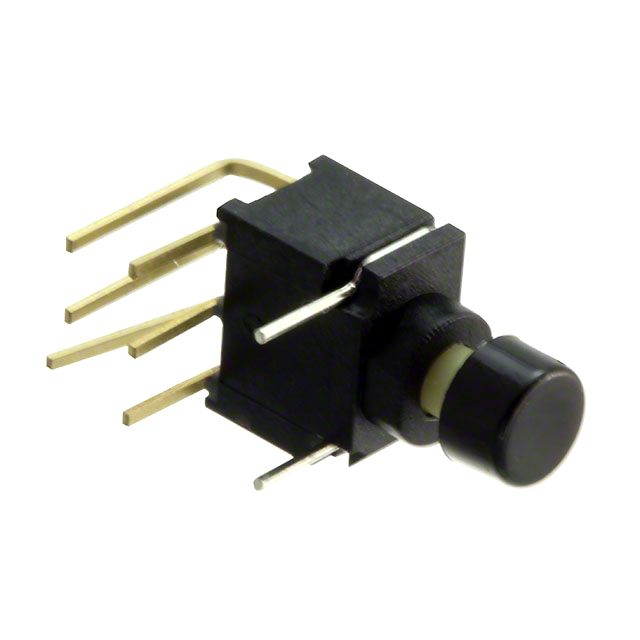

800UDP8P1A1M6RER1BLK
PUSHBUTTON, 0.4VA, 20VAC/VDC, DPDT, On-(On), Through Hole, Right Angle
- Series Name 800U
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitDPDT
- FunctionOn-(On)
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeRound, Button
- Actuator ColorBlack
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Operating Temperature-40°C to 85°C
- Cap OptionBlack Cap
Support for 800UDP8P1A1M6RER1BLK
Not the product you are looking for? Configure your product
