700C Series Alternate Action, Miniature Pushbutton Switch

700C Series Alternate Action, Miniature Pushbutton Switch

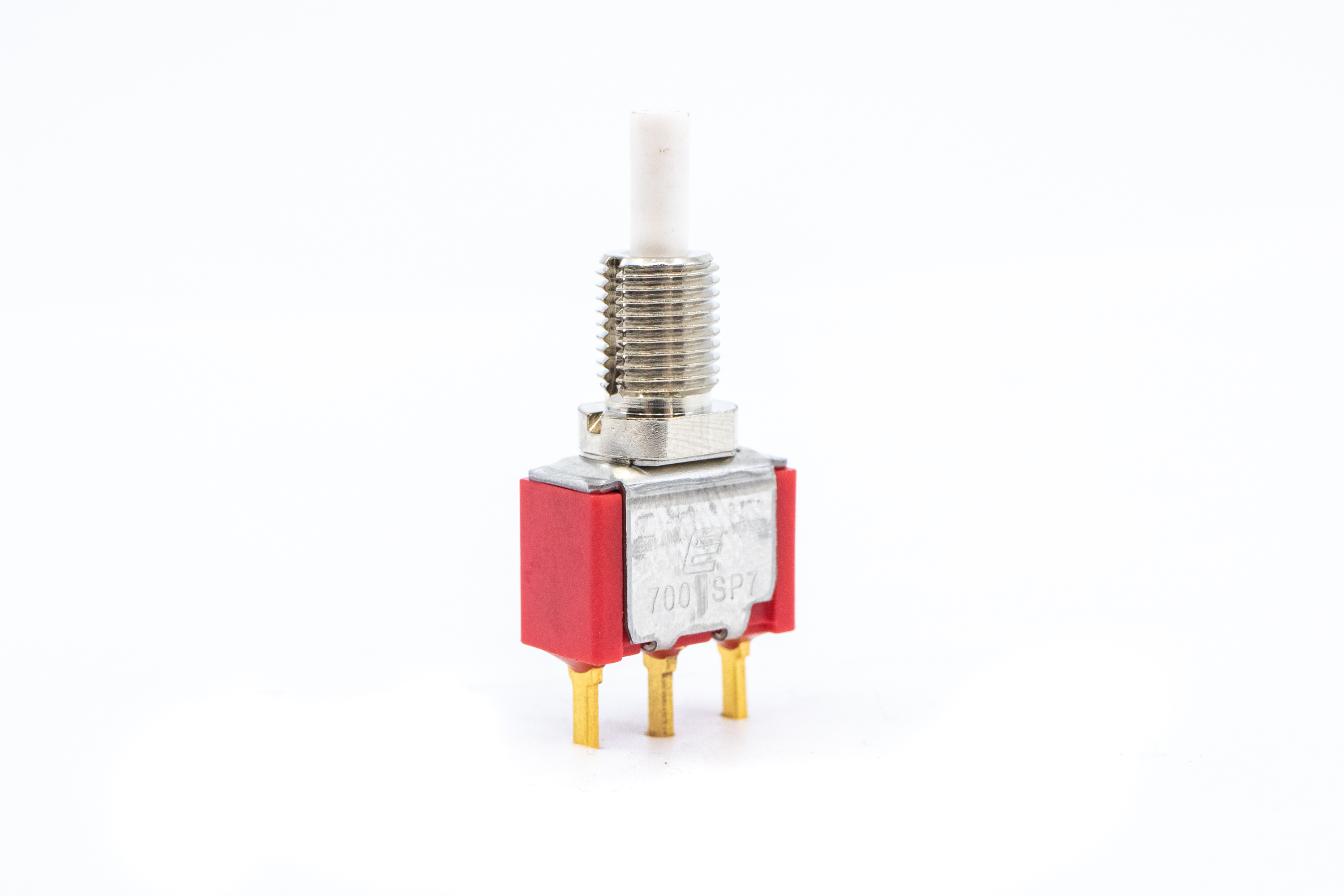

700C Series: 700CSP7B60M2RE

Categories: PUSHBUTTON

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

700C Series Alternate Action, Miniature Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

700CSP7B60M2RE

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for 700CSP7B60M2RE

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 700CSP7B60M2RE from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 0.4VA, 20VAC/VDC, SPDT, On-On, Panel Mount, Rear

Powered by oemsecrets

About 700C Series

  • Push-on, push-off alternation action design
  • Snap acting contact design
  • Gold and silver contact options
  • Contact Ratings
    • Silver: 3A @ 120VAC or 28VDC, 1A @ 250 VAC
    • Gold: 0.4 VA Max @ 20V (AC or DC) Max
  • Through-hole mounting design
  • 1 pole; latching function
  • Variety of bushing and terminal options
  • Life Expectancy: 50,000 Cycles
  • Operating Temperature: -30°C to 85°C
  • Long travel of 3.0mm

700C Series Markets

Telecommunications

Product Specifications

700CSP7B60M2RE

PUSHBUTTON, 0.4VA, 20VAC/VDC, SPDT, On-On, Panel Mount, Rear

  • Series Name 700C
  • PackagingBulk
  • Current Rating0.4VA
  • Voltage Rating20VAC/VDC
  • CircuitSPDT
  • FunctionOn-On
  • Mounting TypePanel Mount, Rear
  • Termination TypePC Pin
  • Contact MaterialGold
  • Actuator TypeRound, Plunger
  • Actuator ColorWhite
  • Illumination Style-
  • Illumination Color-
  • Panel Cutout DimensionsCircular - 6.35mm Dia.
  • Operating Temperature-40°C to 85°C

Support for 700CSP7B60M2RE

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
