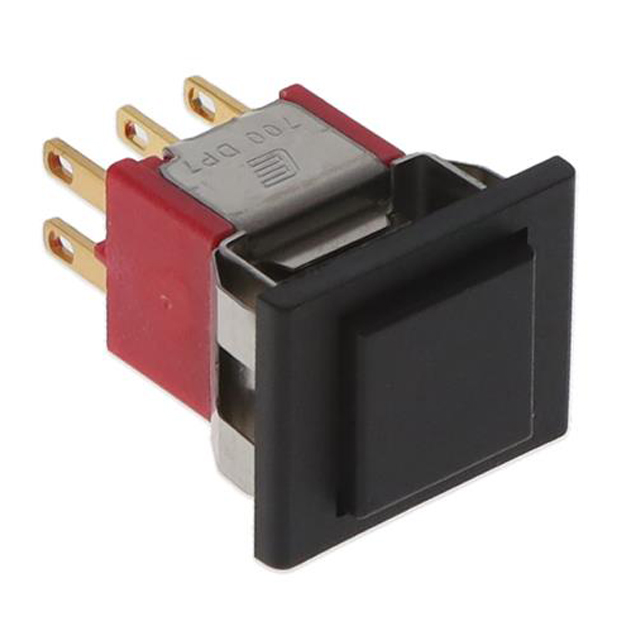

700 Series Snap-Acting, Panel Mount Pushbutton Switch

700 Series Snap-Acting, Panel Mount Pushbutton Switch

700 Series: 700DP7M1REAP2BLKBLK

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant UL Certified

700 Series Snap-Acting, Panel Mount Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

700DP7M1REAP2BLKBLK

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for 700DP7M1REAP2BLKBLK

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 700DP7M1REAP2BLKBLK from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 0.4VA, 20VAC/VDC, DPDT, On-(On), Panel Mount, Snap-In

Powered by oemsecrets

About 700 Series

  • Electrical Ratings:
    • Silver – 1A @ 250 VAC; 3A @ 120 VAC or 28 VDC; UL
    • Gold – 0.4VA, 20V max. (AC or DC)
  • Panel mount, Snap-In design
  • Gold or silver contact options
  • Multiple bushing and termination options
  • 1 or 2 poles momentary functions
  • Operating Temperature: -40°C to 85°C
  • Life Expectancy: 50,000 cycles typical
  • Snap acting contact design

700 Series Markets

Audio Visual

Product Specifications

700DP7M1REAP2BLKBLK

PUSHBUTTON, 0.4VA, 20VAC/VDC, DPDT, On-(On), Panel Mount, Snap-In

  • Series Name 700
  • PackagingBulk
  • Current Rating0.4VA
  • Voltage Rating20VAC/VDC
  • CircuitDPDT
  • FunctionOn-(On)
  • Mounting TypePanel Mount, Snap-In
  • Termination TypeSolder
  • Contact MaterialGold
  • Actuator TypeSquare, Button
  • Actuator ColorBlack
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Panel Cutout DimensionsRectangular - 15.7mm x 12.7mm
  • Operating Temperature-40°C to 85°C
  • Cap OptionBlack Cap
