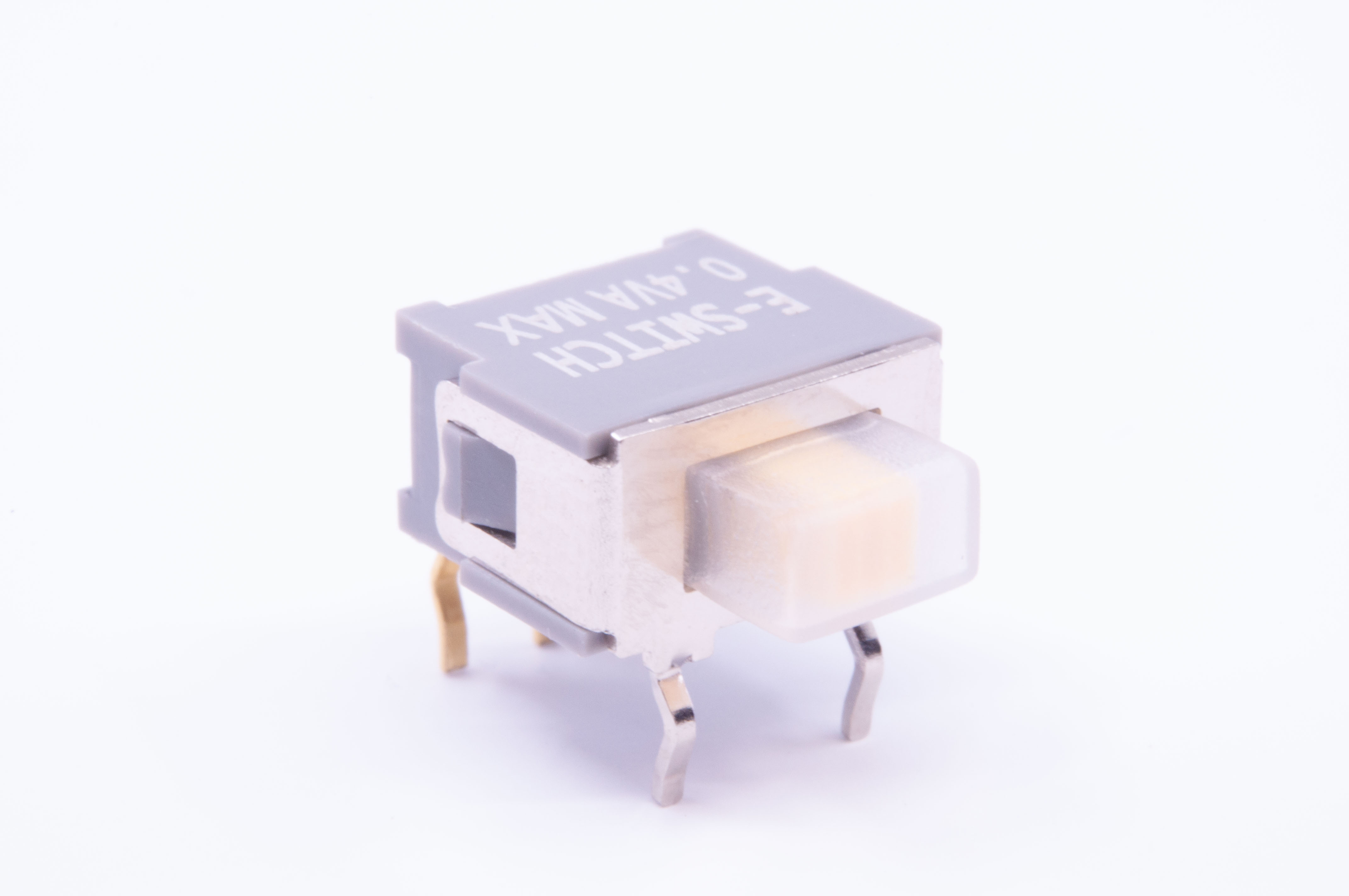

500R Series Sealed, Through Hole Slide Switch

500R Series Sealed, Through Hole Slide Switch

500R Series: 500RSP3S1M6RE

Categories: SLIDE

RoHS Compliant REACH Compliant

500R Series Sealed, Through Hole Slide Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

500RSP3S1M6RE

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for 500RSP3S1M6RE

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 500RSP3S1M6RE from our authorized distributors.

In-Stock Distributors

SLIDE, 0.4VA, 20VAC/VDC, SPDT, On-Off-On, Through Hole, Right Angle

Powered by oemsecrets

About 500R Series

  • IP67
  • Electrical rating:
    • Gold – 0.4VA max. @ 20V max. (AC or DC)
  • SPDT or DPDT circuit; 2 or 3 positions; latching function
  • Through hole, or through hole right angle mounting design
  • 2.8mm actuator length
  • 40,000 cycle life
  • Gold contact material
  • -20ºC to 80ºC operating temperature
  • Epoxy sealed terminals

500R Series Markets

Appliance

Product Specifications

500RSP3S1M6RE

SLIDE, 0.4VA, 20VAC/VDC, SPDT, On-Off-On, Through Hole, Right Angle

  • Series Name 500R
  • PackagingBulk
  • Current Rating0.4VA
  • Voltage Rating20VAC/VDC
  • CircuitSPDT
  • FunctionOn-Off-On
  • Mounting TypeThrough Hole, Right Angle
  • Termination TypePC Pin
  • Contact MaterialGold
  • Actuator TypeStandard
  • Actuator Height2.80mm
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP67
  • Operating Temperature-20°C to 80°C
