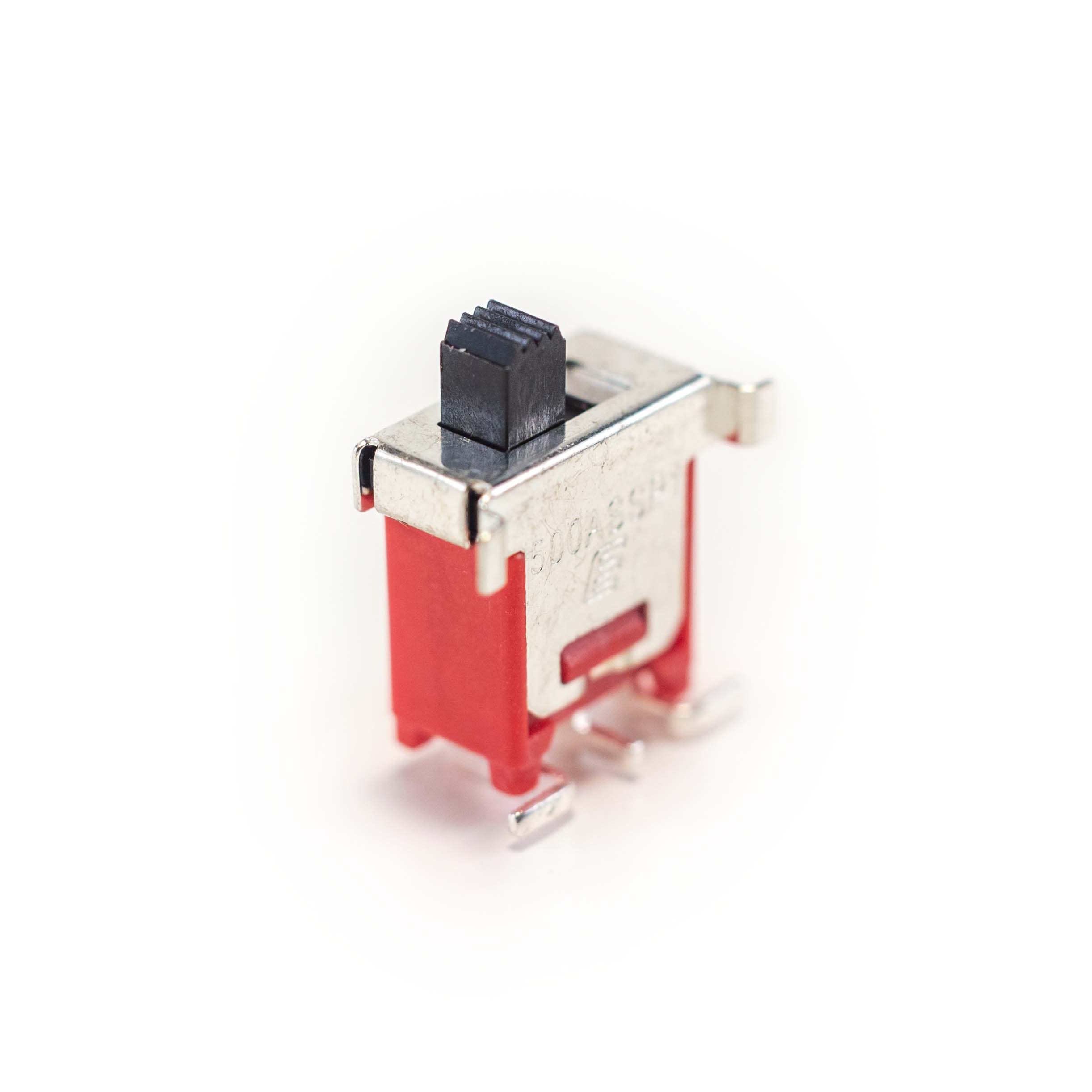

500A Series Subminiature Slide Switch
Stock Check for 500ASSP1SM6QE
Not the product you are looking for? Configure your product
SLIDE, 3A, 120VAC/28VDC, SPDT, On-On, Surface Mount, Right Angle
About 500A Series
- Electrical ratings:
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- Silver – 3A, 120VAC;Â 1A, 250VAC; UL, cUL
- SPDT, 2 or 3 positions; latching function
- Through hole, through hole right angle, or surface mount right angle (SMT) mounting
- Vertical or horizontal actuation options
- 30,000 cycle life
- Silver or gold contact finish (copper alloy)
- Epoxy sealed terminals
- -40°C to 85°C operating temperature
500A Series Markets
Product Specifications
500ASSP1SM6QE
SLIDE, 3A, 120VAC/28VDC, SPDT, On-On, Surface Mount, Right Angle
- Series Name 500A
- PackagingBulk
- Current Rating3A
- Voltage Rating120VAC/28VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height3.10mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Temperature-40°C to 85°C
