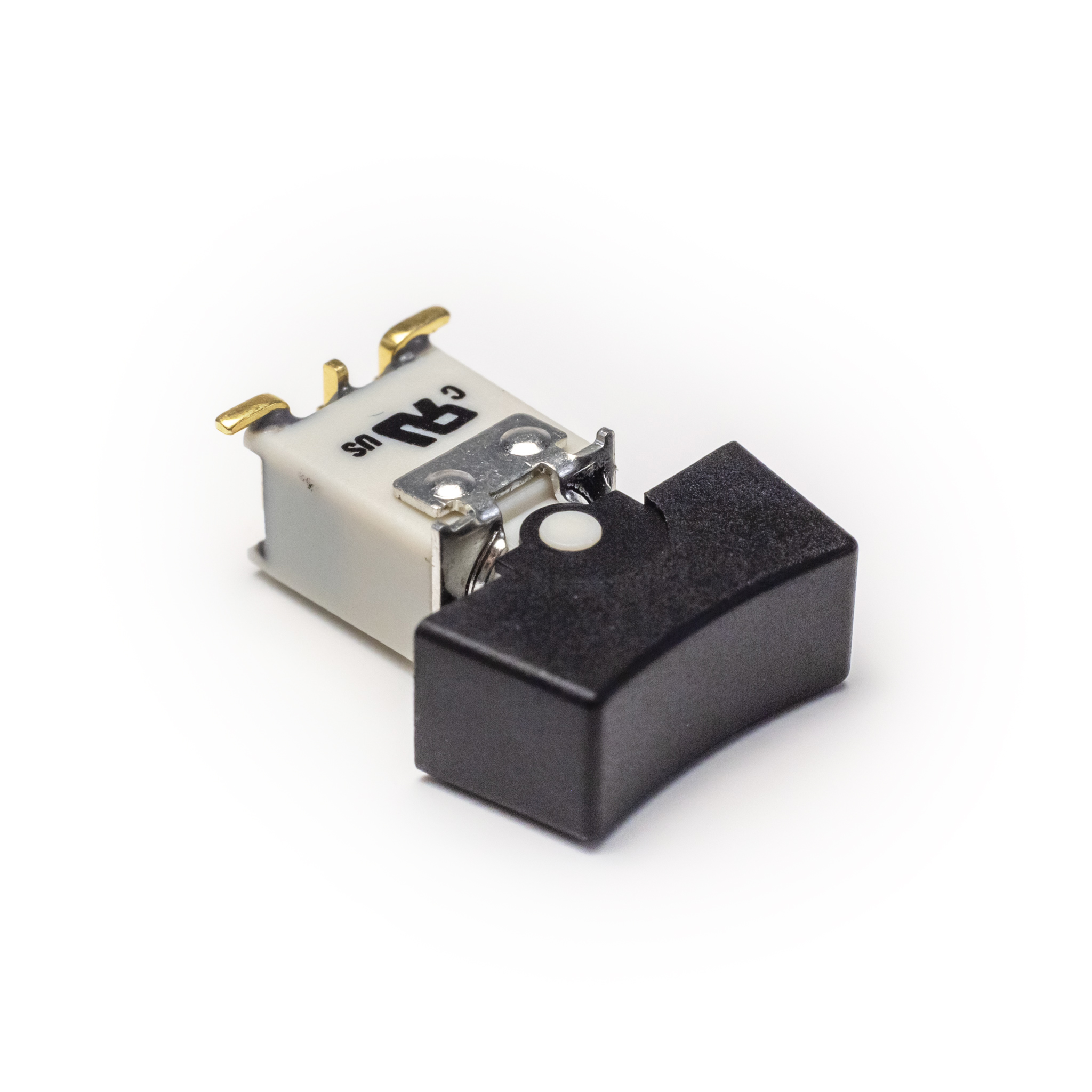

400B Series Sealed, Subminiature, SMT Right Angle Rocker Switch
400B Series Sealed, Subminiature, SMT Right Angle Rocker Switch
Stock Check for 400BWMSP1R2BLKSM6QE
Not the product you are looking for? Configure your product
ROCKER, 3A, 120VAC/28VDC, SPDT, On-On, Surface Mount, Right Angle
About 400B Series
- IP67
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC;Â 1A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, momentary or latching function
- Surface mount right angle (SMT) design
- Standard, black rocker actuator
- Silver or Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
400B Series Markets
Product Specifications
400BWMSP1R2BLKSM6QE
ROCKER, 3A, 120VAC/28VDC, SPDT, On-On, Surface Mount, Right Angle
- Series Name 400B
- PackagingBulk
- Current Rating3A
- Voltage Rating120VAC/28VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeSurface Mount, Right Angle
- Termination TypeSMD (SMT) Tab
- Contact MaterialSilver
- Actuator TypeConcave (Curved)
- Actuator ColorBlack
- Illumination Style-
- Illumination Color-
- Ingress ProtectionIP67
- Operating Temperature-30°C to 85°C
