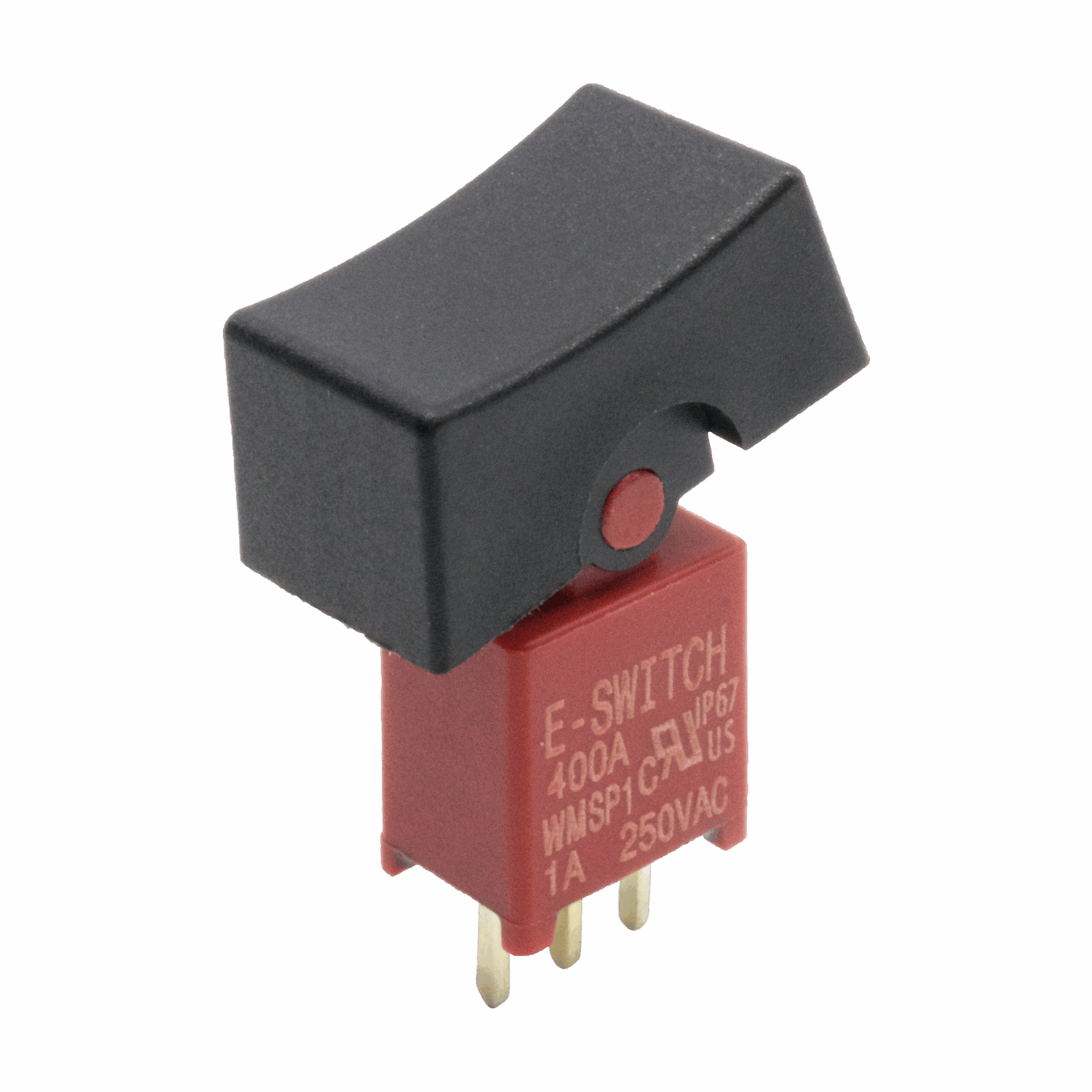

400A Series Sealed, Subminiature Rocker Switch

Wire Leads & Connectors Available

400A Series: 400AWMSP1R1BLKM6QE

Categories: ROCKER

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Model No.: Actuator: Actuator Color: Termination: Contact Material: Seal:

* If you need further customization, we can help!

... in stock, available to buy now.

Quantity:

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 400AWMSP1R1BLKM6QE from our authorized distributors.

ROCKER, 3A, 120VAC/28VDC, SPDT, On-On, Through Hole, Right Angle, Illuminated

Quantity:

IP67
Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
SPDT, DPDT, momentary or latching function
Eight types of Panel Mount and Through Hole mounting options including right angle, vertical, with bracket
PCB Pin or solder termination options
Standard rocker actuator
Multiple actuator color options
Silver or Gold contact material
Epoxy sealed terminals
-30°C to 85°C operating temperature

400AWMSP1R1BLKM6QE

ROCKER, 3A, 120VAC/28VDC, SPDT, On-On, Through Hole, Right Angle, Illuminated

Not the product you are looking for? Configure your product
