Read More400 Series Subminiature Rocker Switch
400 Series Subminiature Rocker Switch
Stock Check for 400MSP1R6BLKM1RE
Not the product you are looking for? Configure your product
ROCKER, 0.4VA, 20VAC/VDC, SPDT, On-On, Panel Mount, Flange
About 400 Series
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC;Â 1A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, momentary or latching function
- Eight types of Panel Mount and Through Hole mounting options including right angle, vertical, with bracket
- PCB pin or solder lug termination options
- Multiple rocker actuator options
- Multiple actuator color options
- Silver or Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
400 Series Markets
Product Specifications

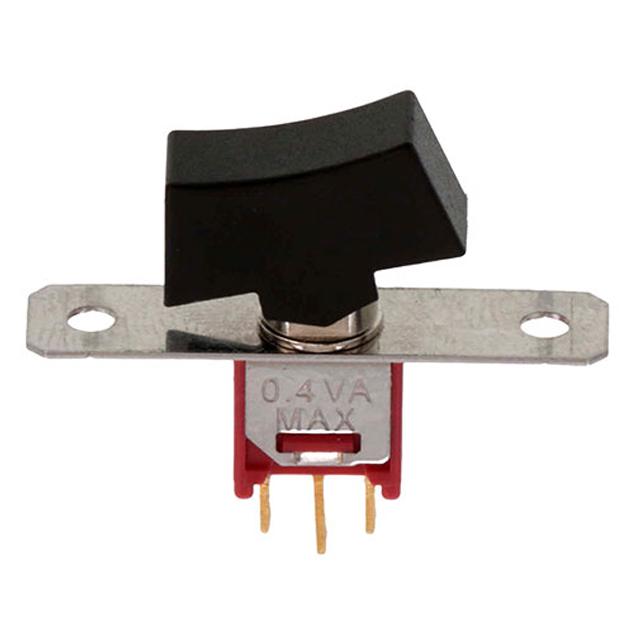

400MSP1R6BLKM1RE
ROCKER, 0.4VA, 20VAC/VDC, SPDT, On-On, Panel Mount, Flange
- Series Name 400
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypePanel Mount, Flange
- Termination TypeSolder
- Contact MaterialGold
- Actuator TypeConcave (Curved)
- Actuator ColorBlack
- Illumination Style-
- Illumination Color-
- Operating Temperature-40°C to 85°C
