Read More400 Series Subminiature Rocker Switch

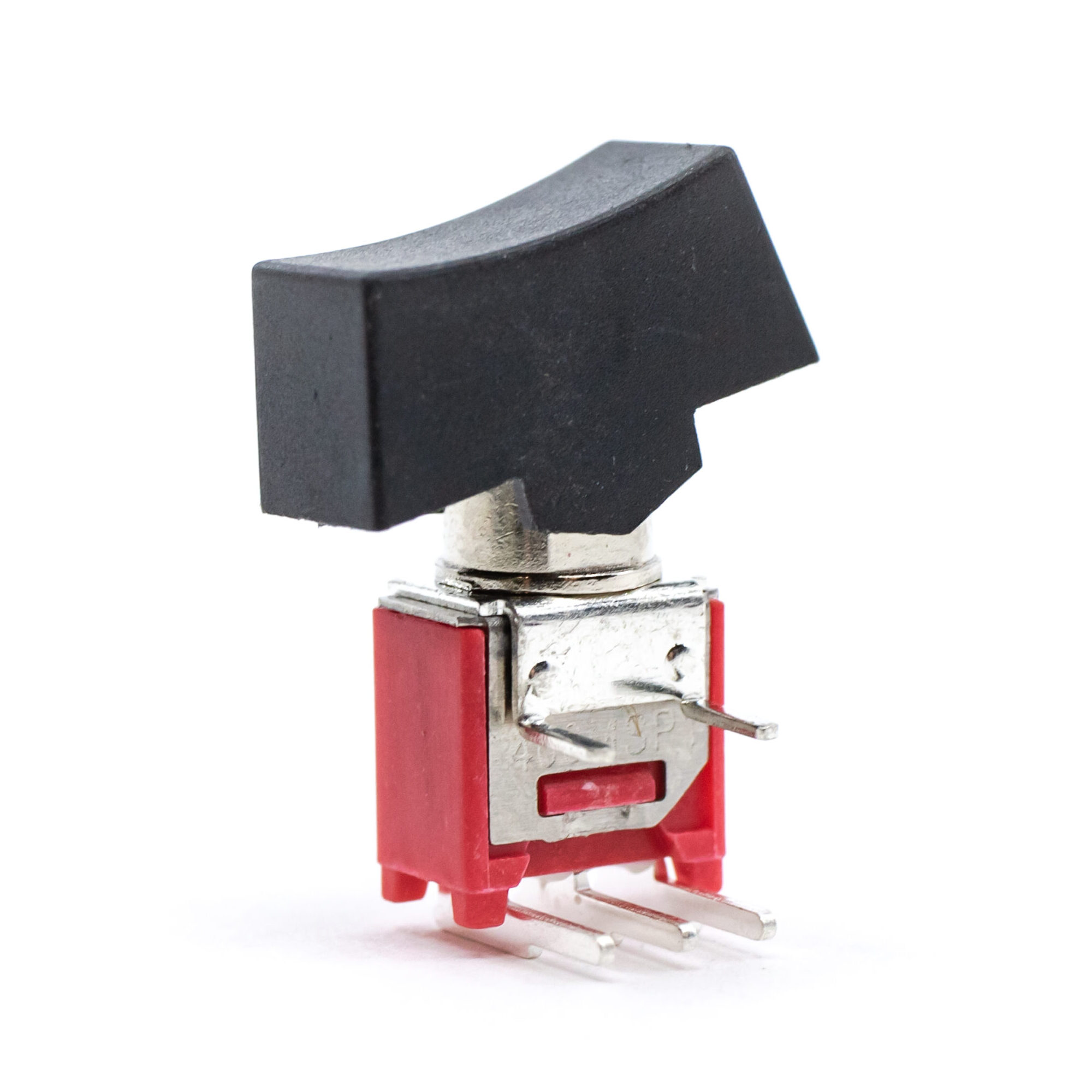

400 Series Subminiature Rocker Switch
Stock Check for 400MDP1R1VS2QE
Not the product you are looking for? Configure your product
ROCKER, 3A, 120VAC/28VDC, DPDT, On-On, Through Hole
About 400 Series
- Electrical Ratings:
- Silver – 3A, 120VAC or 28VDC;Â 1A, 250VAC; UL, cUL
- Gold – 0.4VA max. @ 20V max. (AC or DC)
- SPDT, DPDT, momentary or latching function
- Eight types of Panel Mount and Through Hole mounting options including right angle, vertical, with bracket
- PCB pin or solder lug termination options
- Multiple rocker actuator options
- Multiple actuator color options
- Silver or Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
400 Series Markets
Product Specifications
400MDP1R1VS2QE
ROCKER, 3A, 120VAC/28VDC, DPDT, On-On, Through Hole
- Series Name 400
- PackagingBulk
- Current Rating3A
- Voltage Rating120VAC/28VDC
- CircuitDPDT
- FunctionOn-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeConcave (Curved)
- Actuator ColorBlack
- Illumination Style-
- Illumination Color-
- Operating Temperature-40°C to 85°C
