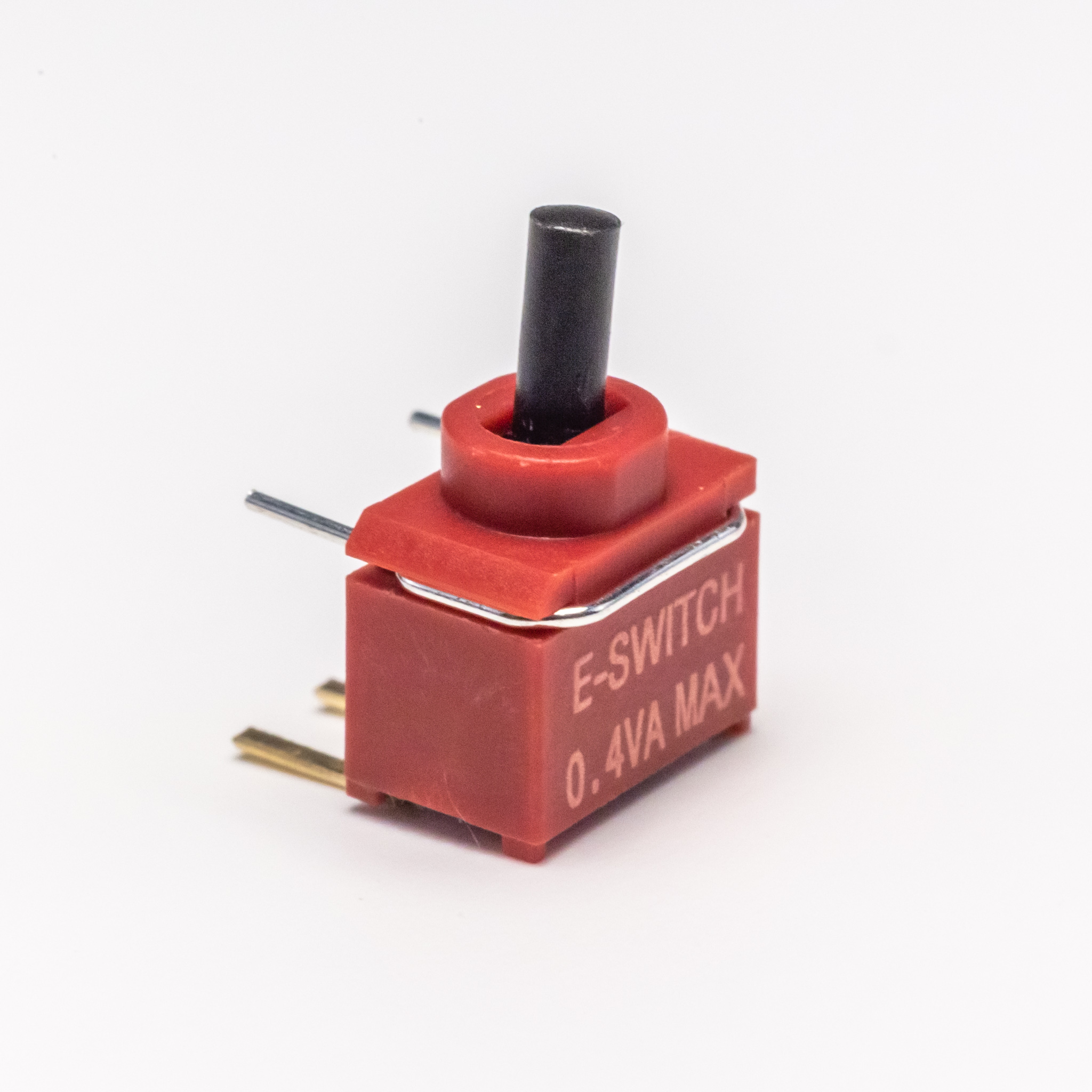

200U Series Sealed, Ultraminiature Toggle Switch
Stock Check for 200USP1T1A1M6RE
Not the product you are looking for? Configure your product
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-On, Through Hole, Right Angle
About 200U Series
- IP67 rated
- Electrical Rating:
- Gold – 0.4VA, 20V Max. (AC or DC)
- Through hole mounting design
- PC Pin termination: straight, horizontal rt. angle, or vertical rt. angle
- SPST, SPDT, DPST, or DPDT;Â latching function
- Up to 40,000 cycles life expectancy
- Gold contact material
- Epoxy sealed terminals
- -30°C to 85°C operating temperature
200U Series Markets
Product Specifications
200USP1T1A1M6RE
TOGGLE, 0.4VA, 20VAC/VDC, SPDT, On-On, Through Hole, Right Angle
- Series Name 200U
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating20VAC/VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeStandard Round
- Actuator Height3.80mm
- Ingress ProtectionIP67
- Operating Temperature-30°C to 85°C
- BushingUnthreaded
