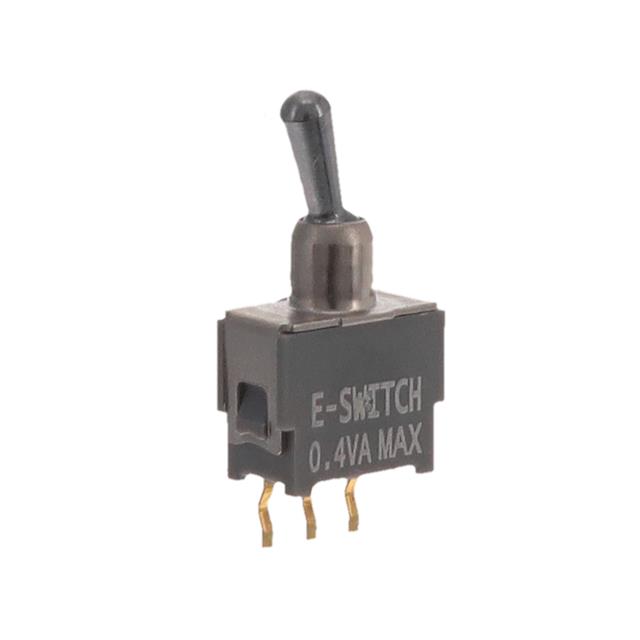

200R Series Miniature Toggle Switch
Stock Check for 200RSP1T1B1M2R
Not the product you are looking for? Configure your product
TOGGLE, 0.4VA, 48VAC/VDC, SPDT, On-On, Through Hole
About 200R Series
- Electrical Rating:
- Gold – 0.4VA, 48V max. (AC or DC)
- SPDT, DPDT, momentary or latching functions
- Through hole, through hole right angle, through hole right angle vertical mounting/termination options
- Gold contact material
- Up to 40,000 cycles life expectancy
- -30°C to 85°C operating temperature
200R Series Markets
Product Specifications
200RSP1T1B1M2R
TOGGLE, 0.4VA, 48VAC/VDC, SPDT, On-On, Through Hole
- Series Name 200R
- PackagingBulk
- Current Rating0.4VA
- Voltage Rating48VAC/VDC
- CircuitSPDT
- FunctionOn-On
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypeStandard Round
- Actuator Height6.00mm
- Operating Temperature-30°C to 85°C
- BushingUnthreaded
Support for 200RSP1T1B1M2R
