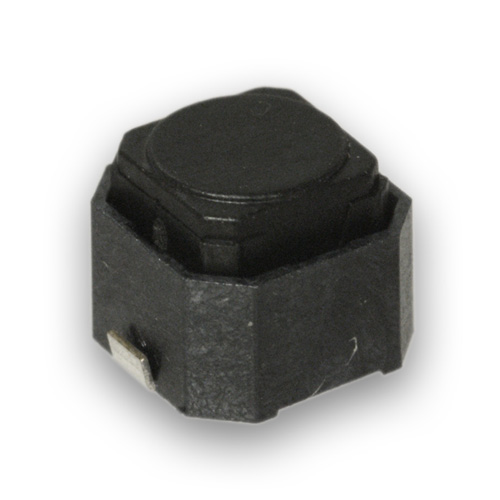

TL9210 Series Long Travel, SMT J-bend Tactile Switch

TL9210 Series Long Travel, SMT J-bend Tactile Switch

The TL9210 Series surface mount, J-bend tactile switch offers long travel and a quiet tactile feel with low contact resistance. You have your choice of 180 or 260 grams for the operating force. The actuator on these tactile switches is 5.0mm long and the operating life is 100,000 cycles. This tact switch operates best at temperatures from -20 to 70°C. These tact switches measure 6.0mm x 6.0mm. The applications and markets for this tact switch include, but aren't limited to:

  • Medical equipment
  • Audio/visual
  • Consumer electronics
  • Computer peripherals
  • Instrumentation

FEATURES

  • Surface mount termination
  • Multiple operating force options
  • Long travel and quiet tactile feel
  • Low contact resistance

Tl9210af260q

TL9210 Series Long Travel, SMT J-bend Tactile Switch

decoration Tl9210af260q

Industry Utilization:

CERTIFICATIONS

Rohs Logo Reach Logo

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl9210af260q

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Links

Most Common Configurations

TL9210AF180Q
TL9210AF260Q

Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC ELECTRICAL LIFE: 100,000 Cycles MECHANICAL LIFE: 100,000 Cycles CONTACT RESISTANCE: 100mΩ initial INSULATION RESISTANCE: 100MΩ Min. @ 100VDC DIELECTRIC STRENGTH: 250VAC for 1 min. OPERATING TEMPERATURE: -20°C to 70°C STORAGE TEMPERATURE: -30°C to 80°C OPERATING FORCE: 200 +/- 80gf TRAVEL: 1.3mm +/- 0.2mm CONTACT ARRANGEMENT: SPST
