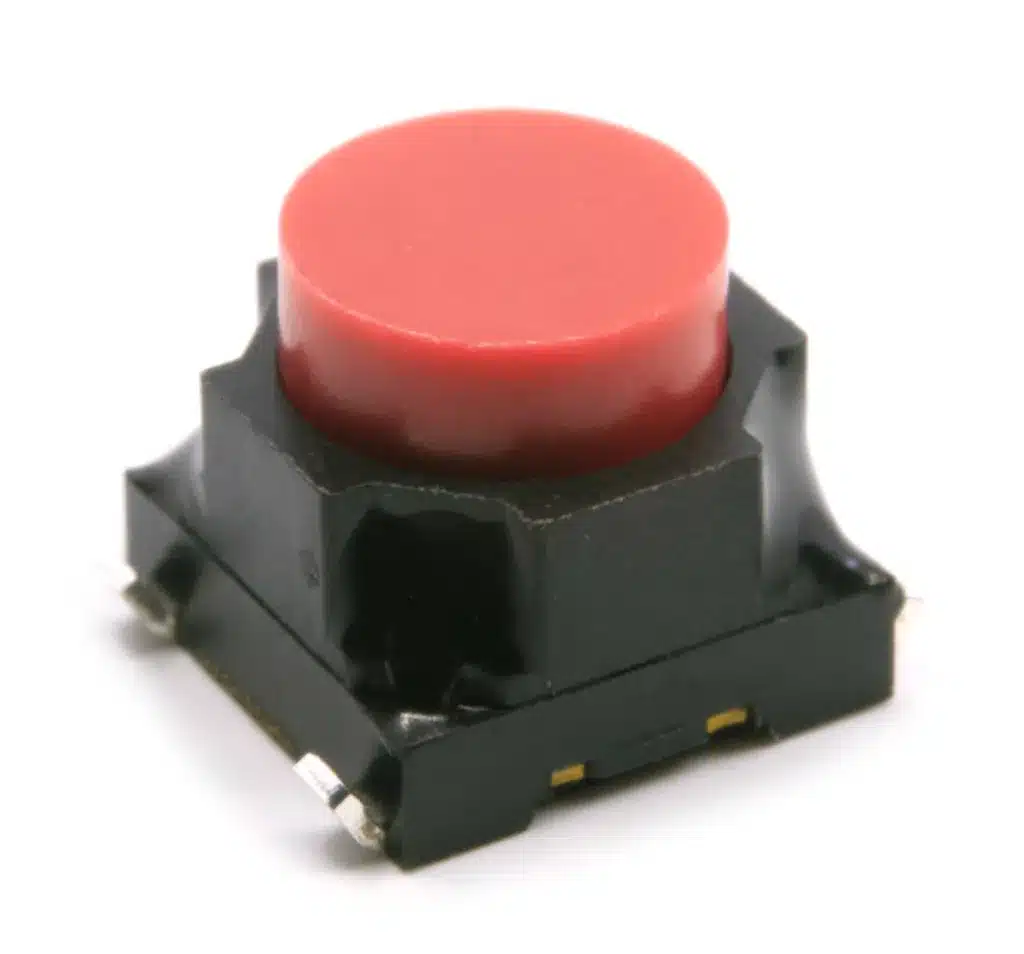

TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
- Surface mount (SMT) design
- 6mm x 6mm
- “Soft Touch” tactile switch
- Long travel of 1.3mm
- 200gf or 350gf operating force
- 5mm actuator height
- Up to 100,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged

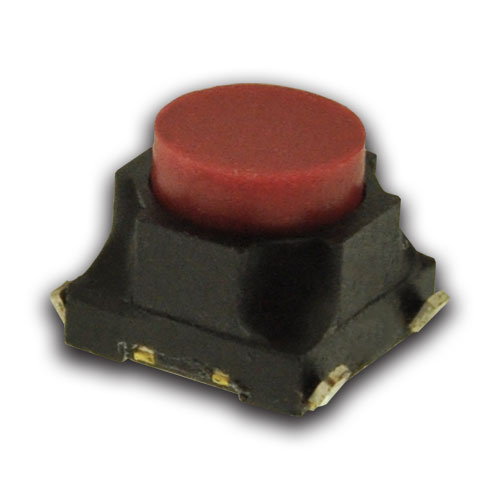

TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- ELECTRICAL LIFE: 100,000 at 200gf; 30,000 at 350gf
- CONTACT RESISTANCE: 100mΩ Max
- INSULATION RESISTANCE: 100MΩ @ 500VDC
- DIELECTRIC STRENGTH: 300VAC for 1 Minute
- OPERATING/STORAGE TEMPERATURE: -40°C to 85°C
- TRAVEL: 1.30mm
- CONTACT ARRANGEMENT: SPST
- ACTUATION FORCE: 200gf; 350gf
