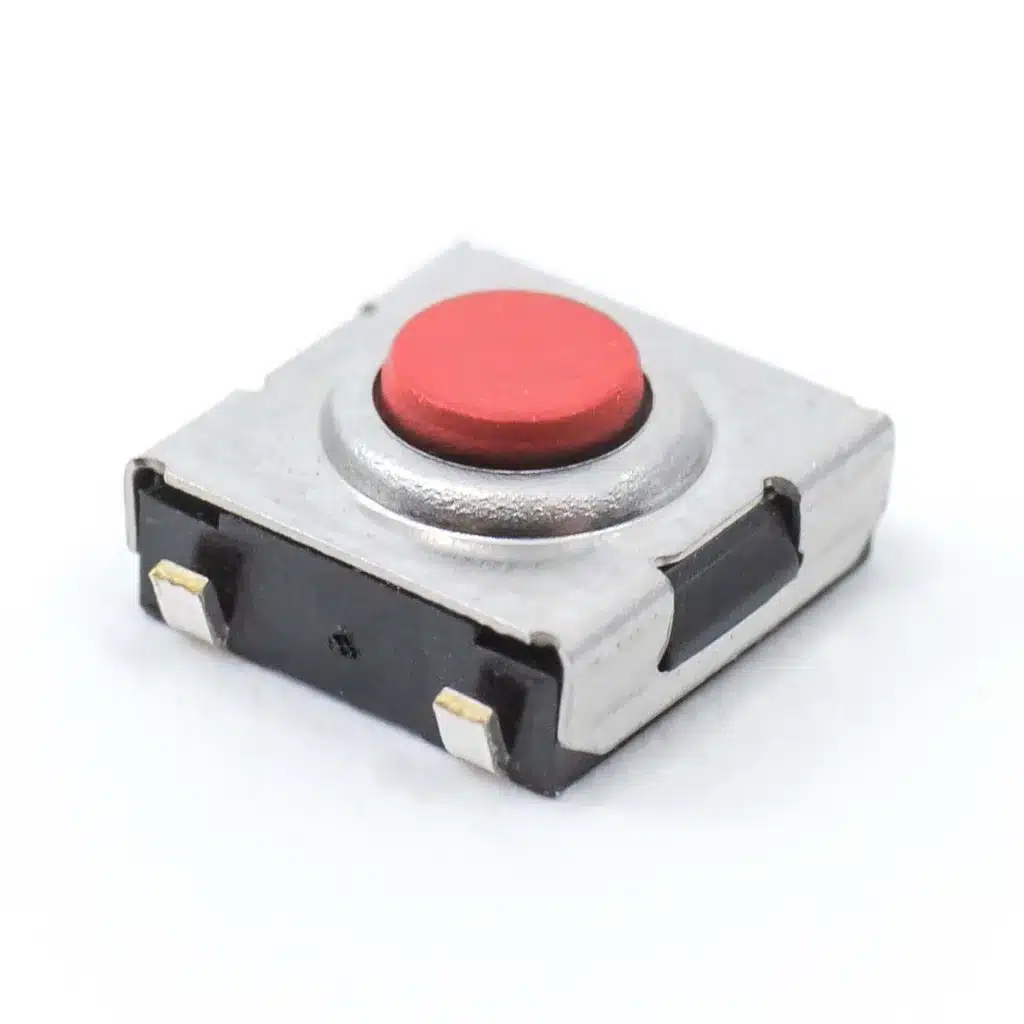

TL6800 Series Sealed, SMT Tactile Switch

The TL6800 Series tactile switch is sealed to an IP67 rating for protection against dust and moisture, and features a long life expectancy of up to a million cycles. Two actuation force options are available for this surface mount tact switch: 160gf and 260gf. The TL6800 Series tact switches can handle temperatures ranging from -40°C to 90°C. These IP67 rated switches are silver plated, with a SPST circuit, and an electrical current rating of 50mA @ 12VDC. These sealed, long life tactile switches are ideal for applications like:

  • Telecommunications
  • Medical equipment
  • Instrumentation
  • Consumer electronics
  • Computer peripherals
  • Audio/visual

FEATURES

  • IP67 rated
  • 6.3mm x 6.2mm tactile switch
  • Long life expectancy of up to 1,000,000 cycles
  • 160 ± 50 and 260 ± 50 gram force options
  • Surface mount design

TL6800 Series Sealed, SMT Tactile Switch

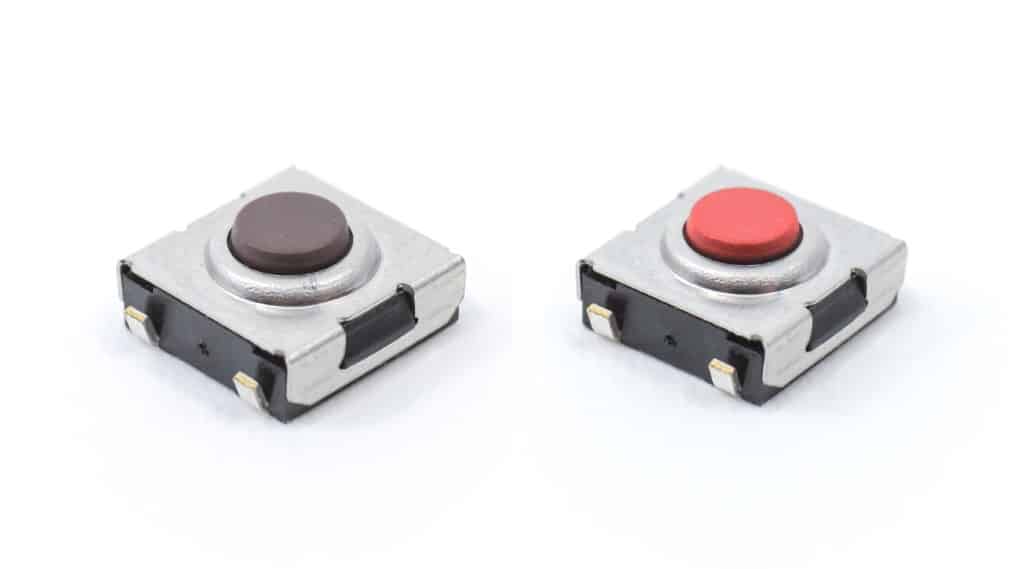

decoration Tl6800 Both

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl6800 Both

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC CONTACT RESISTANCE: 100mΩ Max. (Initial) INSULATION RESISTANCE: 100MΩ Min. @ 100VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING/STORAGE TEMPERATURE: -40°C to 90°C TRAVEL: 0.25mm + 0.15mm DUST/MOISTURE PROTECTION: IP67 LIFE EXPECTANCY: 160gf ± 50gf: 1,000,000 cycles; 260gf ± 50gf: 500,000 cycles PACKAGING: Tape and Reel (1,500 pcs/reel)
