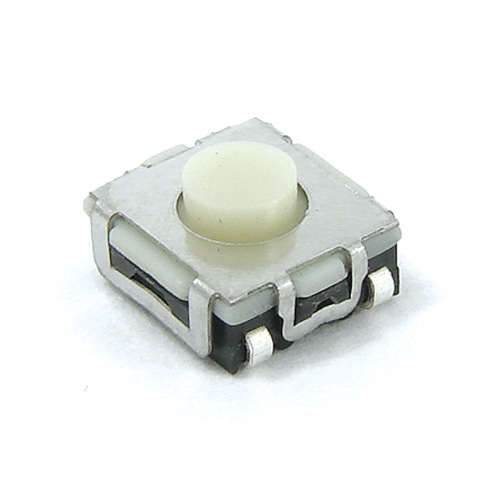

TL6700 Series Sealed SMT Tactile Switch

The TL6700 Series is a staple in our line of sealed tactile switches. An SMT sealed tactile switch, it is process sealed to IP67 standards, protecting against dust, moisture, and aggressive wash processes. The TL6700 Series tact switches come with two operating force options: 160gf and 260gf. Thje life expectancy of this tact switch with operating force of 160gf is 500,000 cycles, and at 260gf it's 100,000 cycles. These tactile switches operate best in temperatures ranging from -20 to 70°C. Applications for this SMT tact switch include:

  • Portable handheld devices
  • Consumer electronics
  • Telecommunications
  • Medical devices

FEATURES

  • 6.9mm x 6.2mm tactile switch
  • 160 ± 50gf and 260 ± 50gf operating force options
  • Surface mount design
  • Process sealed

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl6700 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL6700AF160QG
TL6700AF160QJ

Detail Specifications

ELECTRICAL RATING:  50mA @ 12VDC LIFE EXPECTANCY: 100,000 cycles at 260gf; 500,000 cycles at 160gf CONTACT RESISTANCE: 100mΩ Max. Initial @ 2-4VDC INSULATION RESISTANCE: 100MΩ Min. DIELECTRIC STRENGTH: 250VAC ACTUATION FORCE: 160gf ± 50gf; 260gf ± 50gf OPERATING/STORAGE TEMPERATURE: -20 to 70°C TRAVEL: 0.35 ± 0.2mm
