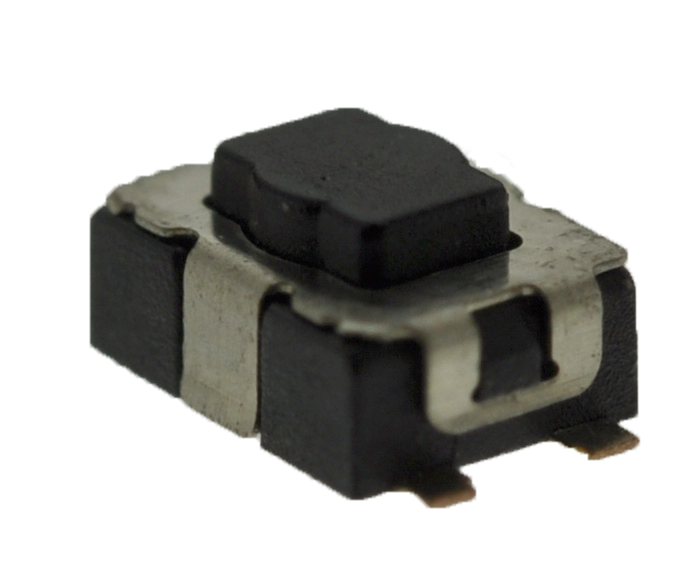

TL6330 Series High-Temperature, SMT Tactile Switch

TL6330 Series High-Temperature, SMT Tactile Switch

The TL6330 Series tactile switch offers a surface mount, PC board design with a small package size of 2.80mm x 4.60mm with actuator height options of 1.90mm or 2.50mm. These high-temperature tactile switches have a long life of up to 200,000 cycles and operate in temperatures ranging from -40 to 85°C. This SMT tact switch is a Single Pole, Single Throw (SPST) switch with 200, 300, or 400 gram force options, and an IP67 ingress protection rating for protection against dust and moisture. The electrical rating on these tactile switches is 50mA of 32VDC current and the actuator travel is 0.25mm. Applications for the TL6330 Series tact switch include:

  • Handheld devices
  • Wearable electronics
  • Internet of things
  • Smart home
  • Telecommunication
  • Testing equipment

FEATURES

  • IP67 rating for dust and moisture protection
  • Surface mount, PC board mounting design
  • Long life of up to 200,000 cycles
  • Small package size of 2.80mm x 4.60mm, with two actuator height options
  • 200gf, 300gf, 400gf operating force options

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl6330af200q

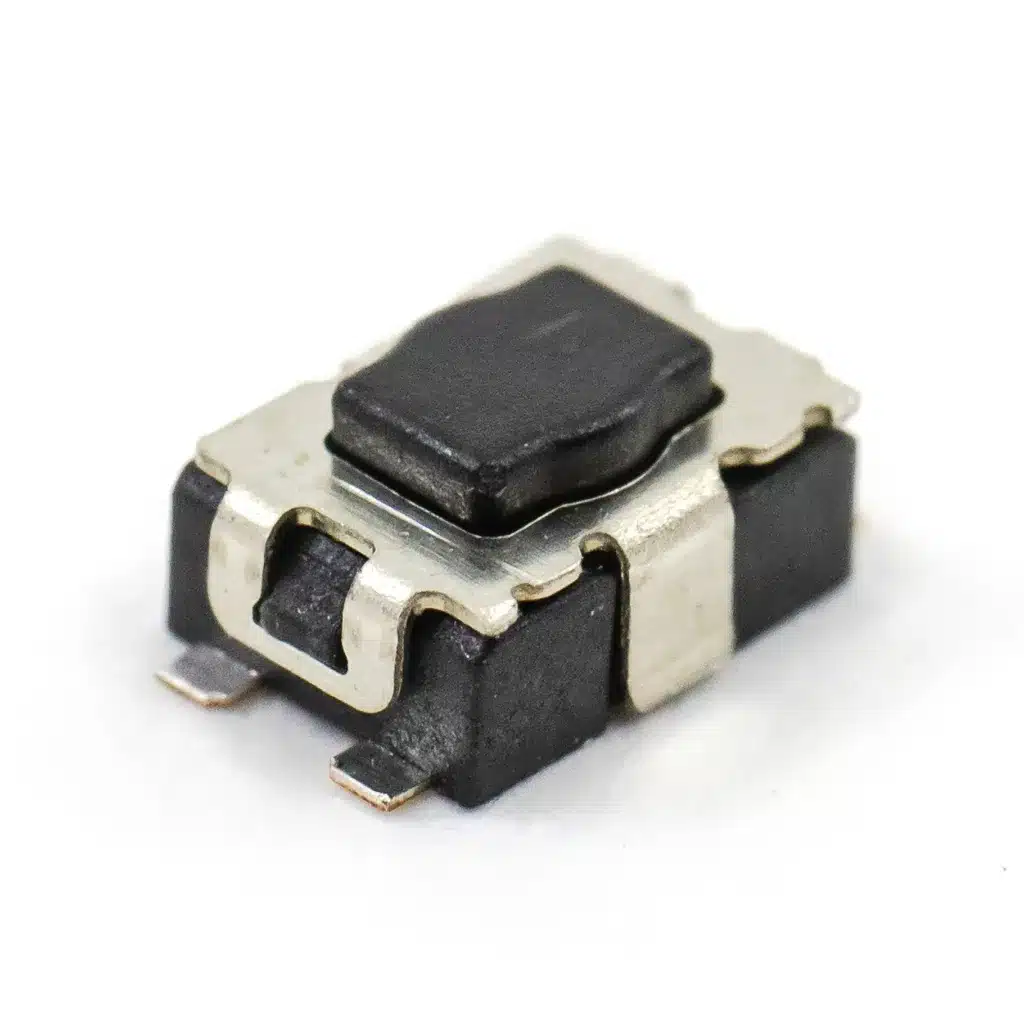

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations

TL6330AF200Q

Detail Specifications

ELECTRICAL RATING: 50mA @ 32VDC ELECTRICAL LIFE: Up to 200,000 cycles CONTACT RESISTANCE: 100mΩ Max INSULATION RESISTANCE: 1GΩ Min @ 500VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING/STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 0.25mm CONTACT ARRANGEMENT: SPST ACTUATION FORCE: 200gf ± 50gf (200,000 Cycles) 300gf ± 75gf (150,000 Cycles) 400gf ± 100gf (100,000 Cycles) DUST/MOISTURE PROTECTION: IP67 PACKAGING: Tape and Reel (7,000 pieces/reel for Actuator A; 3,000 pieces/reel for Actuator B)
