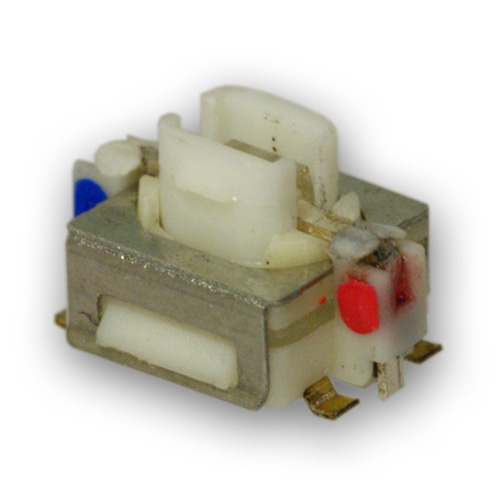

TL6210 Series Sealed, Illuminated, SMT Tactile Switch
TL6210 Series Sealed, Illuminated, SMT Tactile Switch
- IP67
- Surface mount (SMT) design
- 6.2mm x 4.6mm
- Illuminated, with many LED color options
- 200gf operating force
- 3.72mm actuator height
- 100,000 cycle life
- Silver contact material
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL6210 Series Sealed, Illuminated, SMT Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- ELECTRICAL LIFE: 100,000 Cycles
- MECHANICAL LIFE: 100,000 Cycles
- CONTACT RESISTANCE: 500mΩ
- INSULATION RESISTANCE: 100MΩ Min. @ 100VDC
- DIELECTRIC STRENGTH: 250VAC for 1 min.
- OPERATING/STORAGE TEMPERATURE: -20°C to 70°C
- OPERATING FORCE: 200 +/- 80gf
- TRAVEL: 0.45mm +/- 0.15mm
- CONTACT ARRANGEMENT: SPST
- DUST/MOISTURE PROTECTION: IP67
