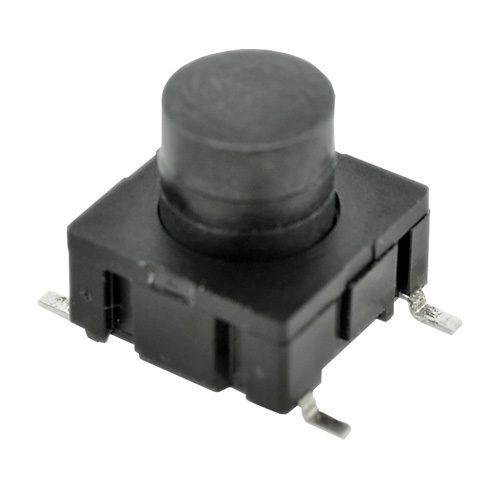

TL6200 Series Sealed, Long Life, Tactile Switch
TL6200 Series Sealed, Long Life, Tactile Switch
- IP67
- Surface mount (SMT) or Through hole mounting options
- 10.1mm x 10.1mm
- Many actuator height options
- Long life of 10,000,000 cycles
- 300gf operating force
- Black or white actuator
- Silver contact material
- -40 to 160°C operating temperature
- 50mA @ 24VDC
TL6200 Series Sealed, Long Life, Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 24VDC
- CONTACT RESISTANCE: 30mΩ Max (initial)
- INSULATION RESISTANCE: 10MΩ Min.
- DIELECTRIC STRENGTH: 250VAC for 1 minute
- ELECTRICAL LIFE: 10,000,000 cycles
- MECHANICAL LIFE: 10,000,000 cycles
- OPERATING/STORAGE TEMPERATURE: -40°C to 160°C
- TRAVEL: 1.00mm
- DUST/MOISTURE PROTECTION: IP67 rated
- ACTUATION FORCE: 300gf
- CONTACT ARRANGEMENT: SPST
