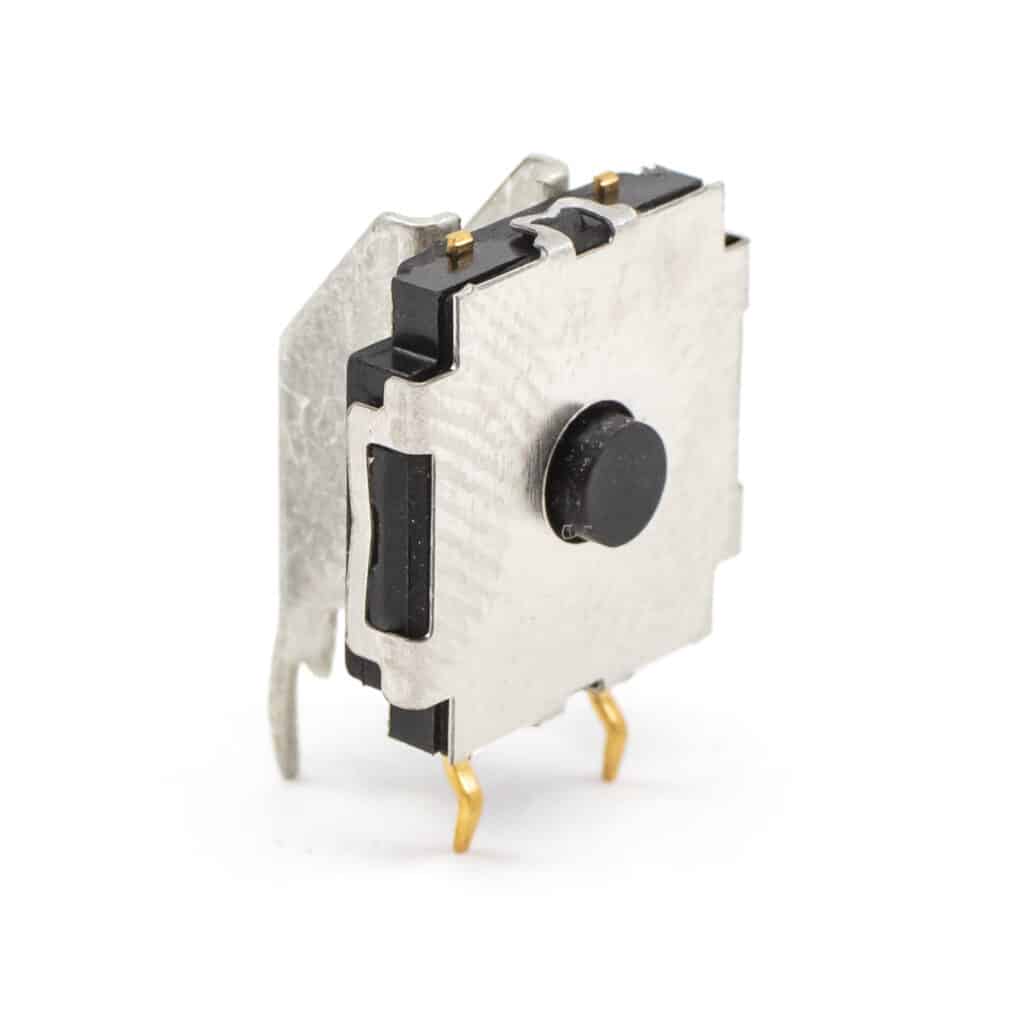

TL6190 Series Sealed, Right Angle Tactile Switch

TL6190 Series Sealed, Right Angle Tactile Switch

The TL6190 Series tactile switch is a process sealed, right angle, through-hole tact switch. It features reliable tactile dome technology and an optional cap. The TL6190 Series tactile switches operate at temperatures from -40 to 105°C, and with the optional cap, the operating temperatures range from -40 to 85°C. This tactile switch measures 12mm x 11.5mm. Applications for this right angle tact switch include:

  • Telecommunications
  • Consumer electronics
  • Audio/visual
  • Computer/peripheral

FEATURES

  • 12.04mm x 11.50mm tactile switch
  • 160 ± 60gf, 220 ± 60gf, and 320 ± 60gf operating force options
  • Right angle, through-hole mounting design
  • Process sealed

TL6190 Series Sealed, Right Angle Tactile Switch

decoration Tl6190 Series

Industry Utilization:

CERTIFICATIONS

CATEGORIES

Series Configurator

* If you need further customization let us know and we'll see how we can help!

Product Number:

Tl6190 Series

* Product image not available for this configuration.

Displaying general product image that doesn't necessarily match configuration.

Most Common Configurations


Detail Specifications

ELECTRICAL RATING: 50mA @ 12VDC MECHANICAL LIFE: 100,000 Cycles ELECTRICAL LIFE: 100,000 Cycles CONTACT RESISTANCE: 100mΩ Initial Max. INSULATION RESISTANCE: 100MΩ Min. @ 100V DIELECTRIC STRENGTH: 500VDC FORCE: 160gf ± 60gf; 220gf ± 60gf; 320gf ± 60gf TRAVEL: 0.50 ± 0.20mm OPERATING/STORAGE TEMPERATURE (Switch): -40 to 105°C OPERATING/STORAGE TEMPERATURE (Button): -40 to 85°C
