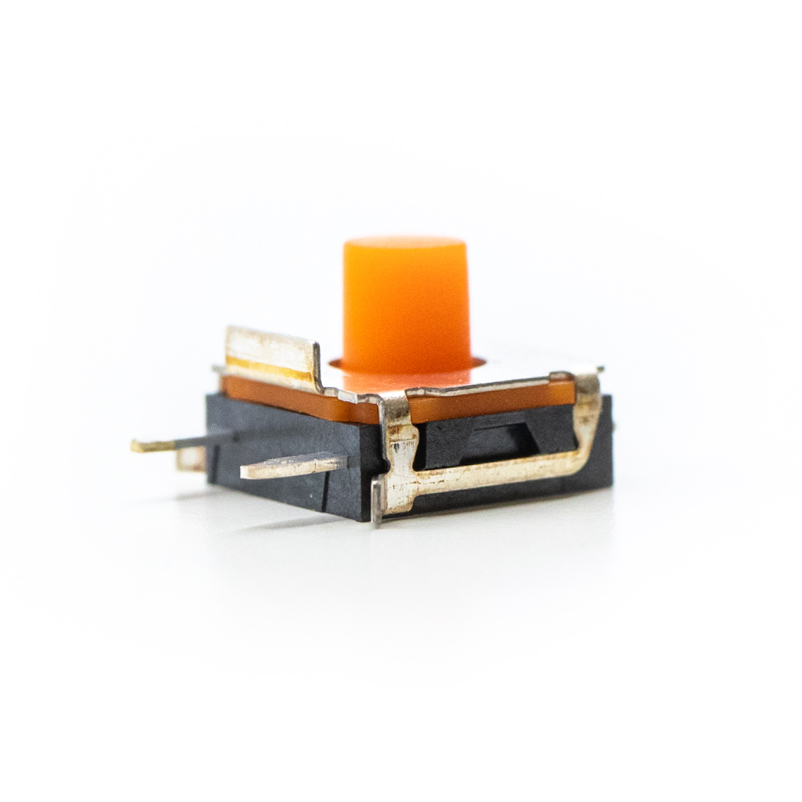

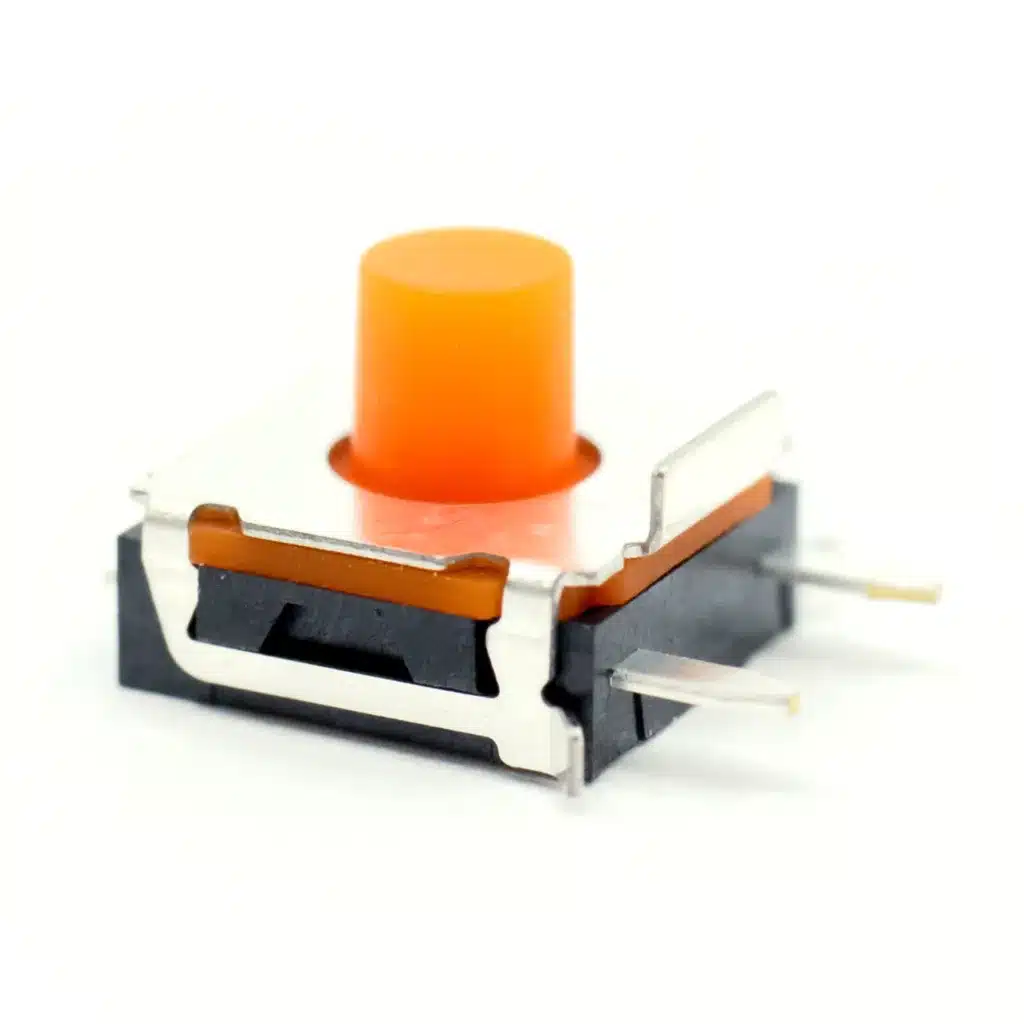

TL6155 Series Sealed, Through Hole Right Angle Tactile Switch
TL6155 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67
- Through hole right angle, Pin-in-Paste (PIP) mounting design
- 6.55mm x 6.4mm
- 350gf operating force
- 3.9mm actuator height
- 300,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 32VDC
- Tape and reel packaged
TL6155 Series Sealed, Through Hole Right Angle Tactile Switch
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 32VDC
- ELECTRICAL LIFE: 300,000 Cycles
- CONTACT RESISTANCE: 100mΩ Max. (Initial)
- INSULATION RESISTANCE: 10MΩ Min. @ 100VDC
- DIELECTRIC STRENGTH: 250VAC for 1 Minute
- OPERATING TEMPERATURE: -40 to 85°C
- OPERATING FORCE: 350gf ± 100gf
- TRAVEL: 0.5mm
- DUST/MOISTURE PROTECTION: IP67
- FUNCTION: SPST, Off-(On)
