Read MoreTL59 Series Through Hole, Radial Lead Tactile Switch

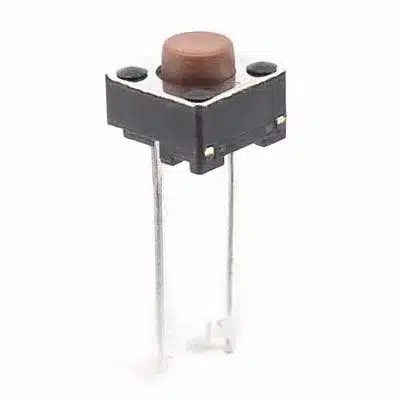

TL59 Series Through Hole, Radial Lead Tactile Switch
Stock Check for TL59BF160Q
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated
About TL59 Series
- Through hole mounting design
- 6.2mm x 6.2mm
- Multiple actuator height options
- 100gf, 160gf, or 260gf operating force
- 100,000 cycle life
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
- Radial lead packaging
TL59 Series Markets
Product Specifications
TL59BF160Q
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Illuminated
- Series Name TL59
- PackagingCut Tape
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height9.50mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force160gf
- Operating Temperature-20°C to 70°C
