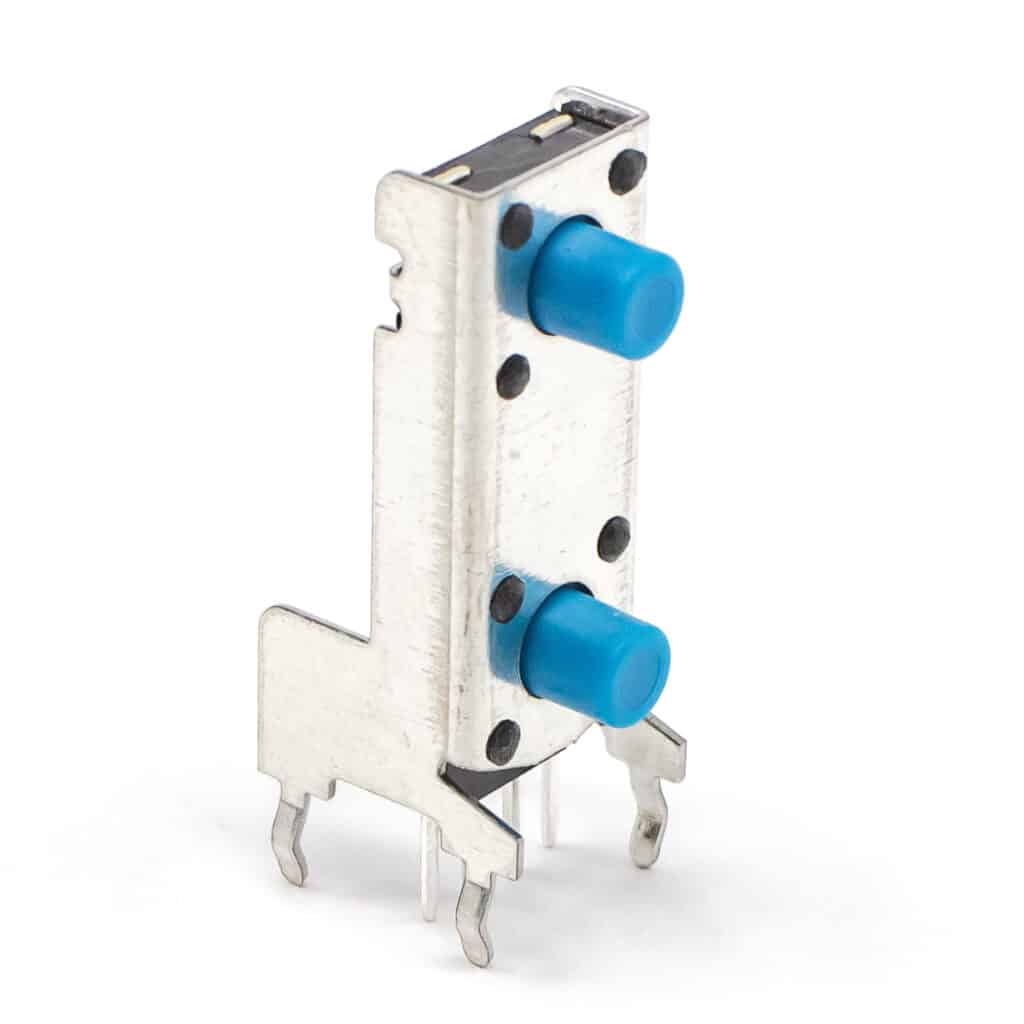

TL53 Series Through Hole Right Angle Dual Tactile Switch
TL53 Series Through Hole Right Angle Dual Tactile Switch
- Through hole right angle mounting design
- 8.4mm x 10.5mm
- Two independent switches in a single, stacked design package
- Many actuator height options
- 100gf, 160gf, or 260gf operating force
- Silver contact material
- -20°C to 70°C operating force
- 50mA @ 12VDC
TL53 Series Through Hole Right Angle Dual Tactile Switch
Series Configurator
* If you need further customization let us know and we'll see how we can help!
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12V DC
- LIFE EXPECTANCY: 100,000 cycles
- CONTACT RESISTANCE: 100mΩ Max.
- INSULATION RESISTANCE: 100MΩ Min.
- DIELECTRIC STRENGTH: 250VAC
- OPERATING TEMPERATURE: -20°C to 70°C
- OPERATING FORCE: 100gf, 160gf, or 260 gf
- TRAVEL: 0.25mm
- CONTACT ARRANGEMENT: SPST, Normally Open, Momentary
