TL52 Series Sealed, Through Hole Radial Lead Tactile Switch
TL52 Series Sealed, Through Hole Radial Lead Tactile Switch
- IP67
- Through hole mounting design
- 8mm x 8mm
- 13mm actuator height
- 160gf or 260gf operating force
- 100,000 cycle life
- Silver contact material
- -25°to 85°C operating temperature
- 50mA @ 12VDC
- Radial lead packaging

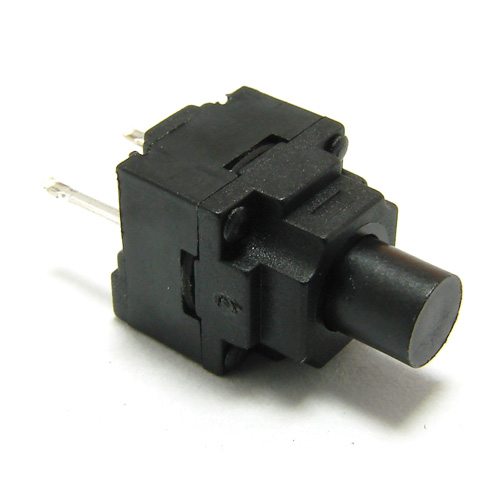

TL52 Series Sealed, Through Hole Radial Lead Tactile Switch
Product Number:
* Product image not available for this configuration.
Displaying general product image that doesn't necessarily match configuration.
Part in stock, available to ship now.
This is not available for online purchase.
Please see our Stock Checker to find a Distributor with availability.
Check Stock
Most Common Configurations
Detail Specifications
- ELECTRICAL RATING: 50mA @ 12VDC
- MECHANICAL LIFE: 100,000 Cycles
- CONTACT RESISTANCE (Initial Max.): 100mΩ
- INSULATION RESISTANCE: 100MΩ Min. @ 100VDC
- DIELECTRIC STRENGTH: 250VAC
- OPERATING FORCE: 160gf ± 50gf; 260gf ± 50gf
- OPERATING TEMPERATURE: -25°C to 85°C
- TRAVEL: 0.3 +0.2/-0.1mm
- BOUNCE: 10m Second Max.
